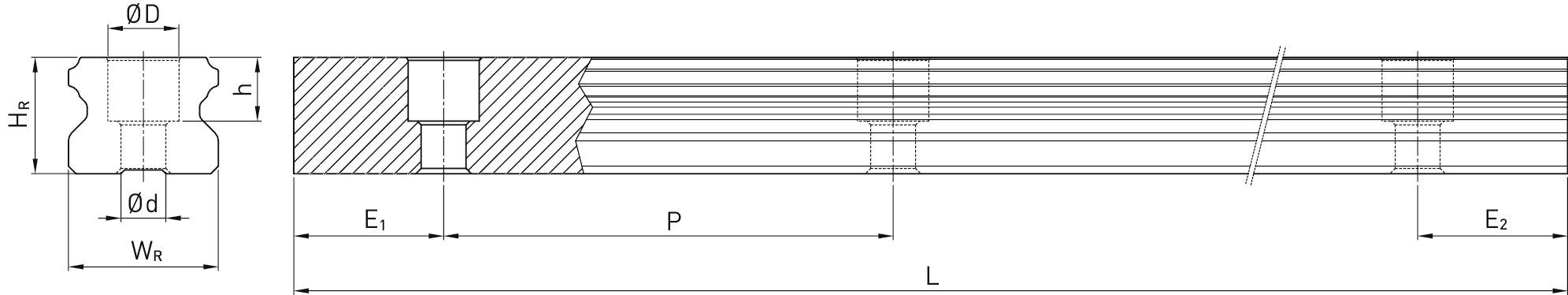

Technical specifications:
Width W_R: 28 mm
Height H_R: 26 mm
Bore ØD: 14 mm
Bore Ød: 9 mm
Countersink h: 12 mm
Hole spacing P: 60 mm
Max. Length L: 4000 mm

Special lengths are also available on request.
To do this, select the next larger length and enter the desired special length in the comment field of the order.

Example:
Select the desired special length: 490 mm -> 500 mm and enter the desired special length of 490 mm in the comment field.
Attention: Shipping via DHL is only possible up to a maximum length of 2.60 m! Larger lengths can only be delivered
by a forwarding agent. In this case, please call us to organize order and transport.

Attention: The dust protection caps are not included in the scope of delivery and must be ordered separately.​​​​​​​
All lengths offered here are cuts from the original four meter rail.
Cuts are excluded from exchange and return.
