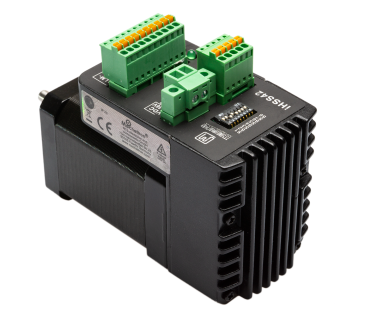

JMC Closed Loop Integrated Step Motor

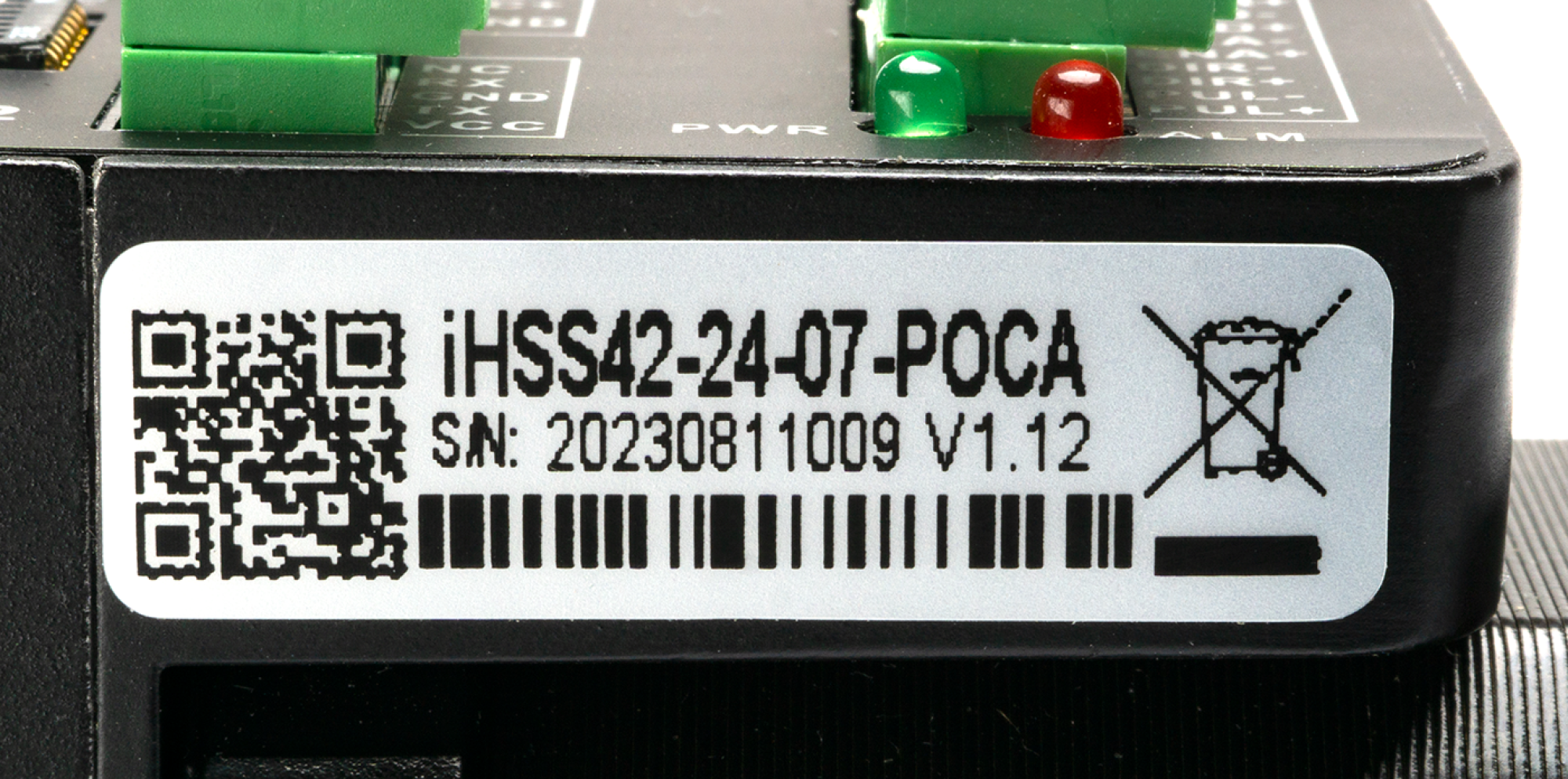

IHSS42-24-07 0,7 Nm Nema 17

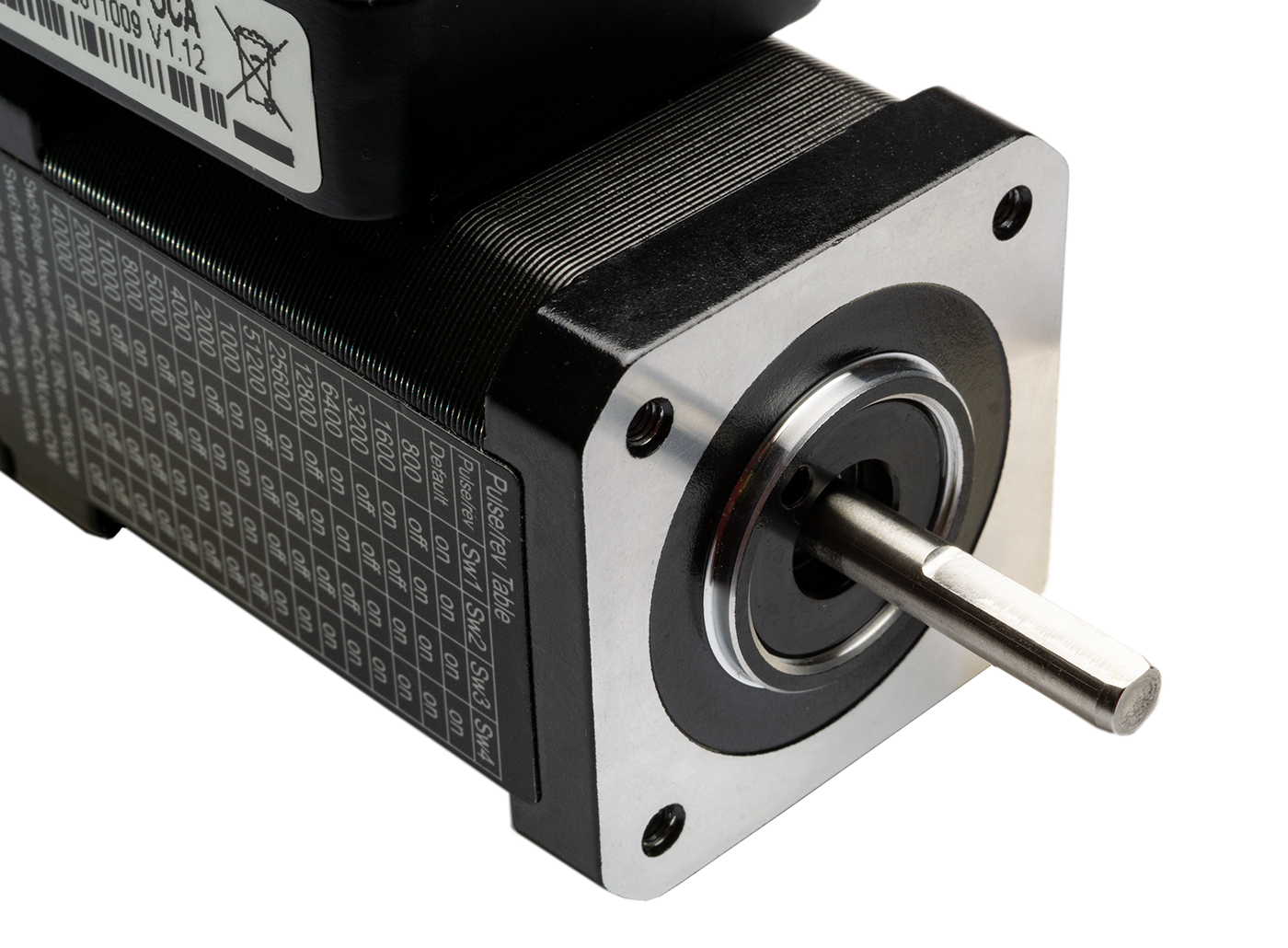

Holding torque 0,7 NmShaft diameter : 5 mm
Hole spacing NEMA 17: 31 mm
Features
- Integrated compact size for saving mounting space
- Without losing step, High accuracy in positioning
- 100% rated output torque
- Variable current control technology, High current efficiency
- Small vibration, Smooth and reliable moving at low speed
- Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor

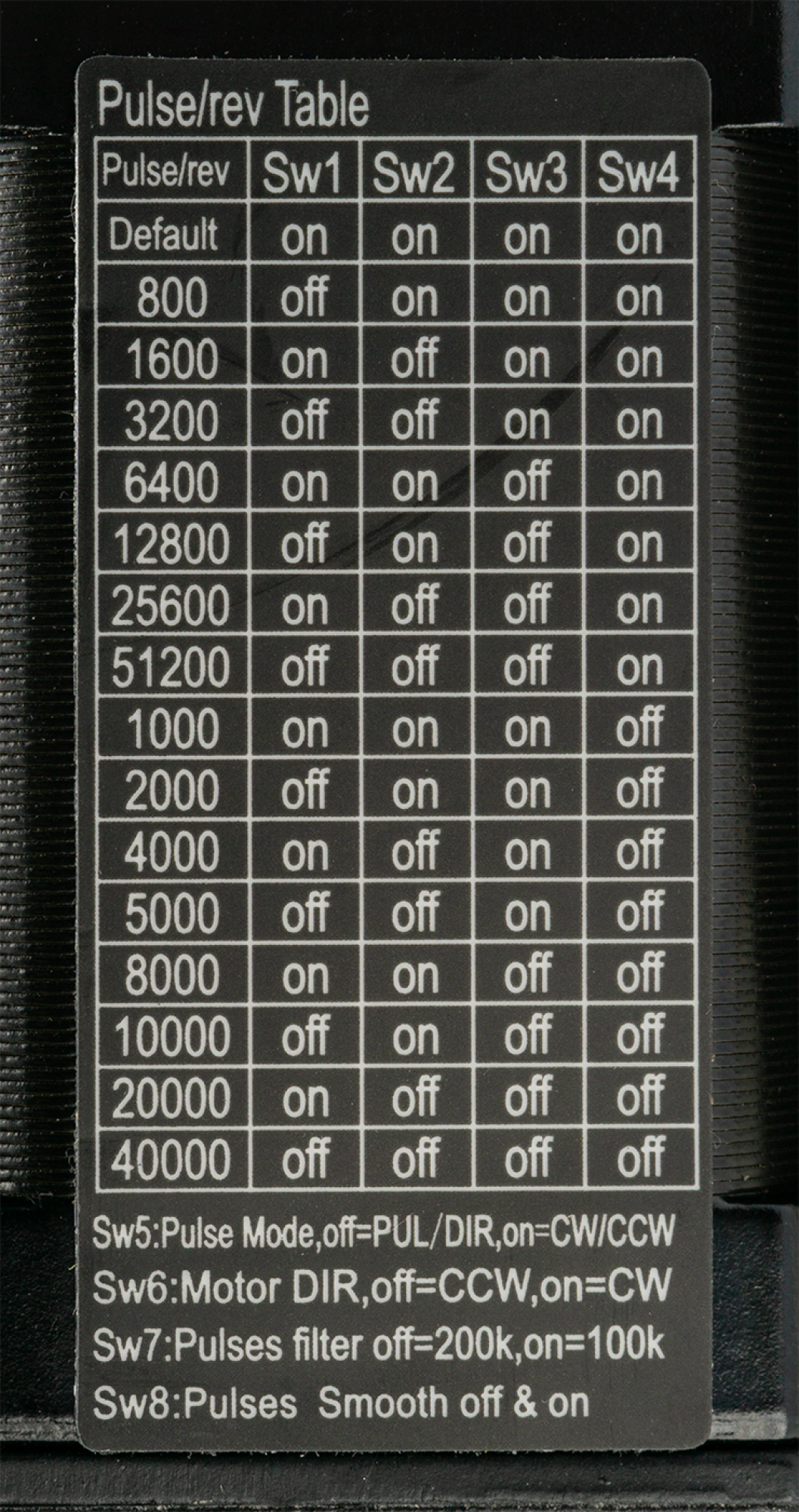

- User-defined micro steps
- No adjustment in general applications
- Over current, over voltage and over position error protection
- Green light means running while red light means protection or off line
Overview
The iHSS42-XX Integrate Stepper Servo Motor is merged the stepper servo driver and motor together. This motor system integrates the servo control technology into the digital stepper drive perfectly. And this product adopts an optical encoder with high speed position sampling feedback of 50 μ s, once the position deviation appears, it will be fixed immediately. This product is compatible the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.
Technical data:
- Voltage: 24 VDC
- Holding Torque: 0,7 Nm
- Weight: 0,7 kg
DS_iHSS42de_231128_soro.pdfManufacturer: | Authorized representative for the EU: |
