• Hobby-Line 4530 parts set mechanics
  Workspace: X 300 mm, Y 450 mm, Z 140 mm
• Standard stepper motor set including cables
• Parts set control: Control Unit series C1 with Beamicon Basic
• Workpiece support MDF with thread grid
• Milling motor Sorotec SFM 800 800 watt 230 V

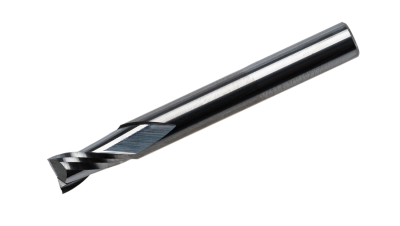

• Hobby-Line solid carbide milling cutter set
• Tool length sensor Sorotec WLS 1
• Lubrication set with multi-purpose grease + grease gun

• All milling parts for upgrading the X/Transverse axis to HGR20 rails
• The HGR20 rails are not included!

• 2 x ball screw 16 x 5 with nut, length: 1200 mm
• 2 x Screw nut housing
• 2 x floating bearing block BF12 for 16 mm ball screw Blue Line
• 2 x fixed bearing block BK12 for 16 mm ball screw Blue Line
• 2 x claw coupling aluminium 8/10 mm, Ø 20 mm, 3 Nm
• The milling parts are not included!

Stepper motors, reference sensors and cables

• 2 x ball screw 16 x 10 with nut, length: 1200 mm
• 2 x Screw nut housing
• 2 x floating bearing block BF12 for 16 mm ball screw Blue Line
• 2 x fixed bearing block BK12 for 16 mm ball screw Blue Line
• 2 x claw coupling aluminium 8/10 mm, Ø 20 mm, 3 Nm
• The milling parts are not included!

• All milling parts for upgrading the Z-axis to direct drive
