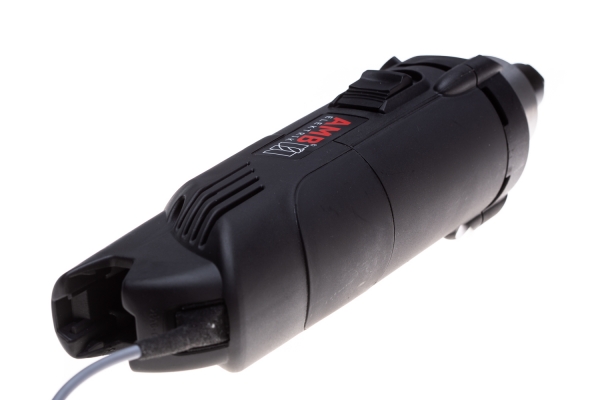

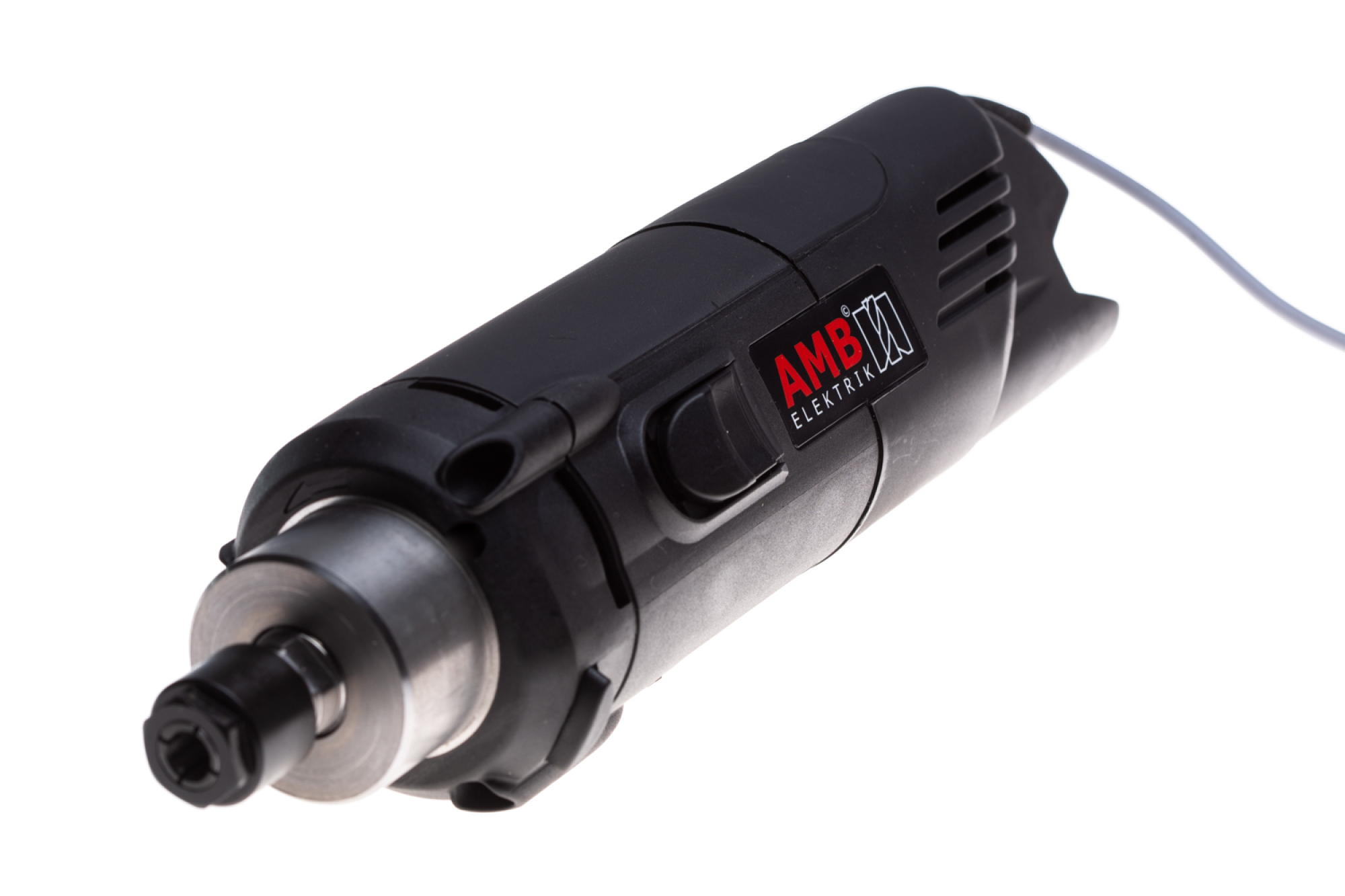

AMB FME-1 1050 DI
AMB FME-1 1050 DI
06081054
With this version of the FME-1, a softwaresided speed control is possible via the 0 ... 10 V analogue signal of the control between 3,500 ... 25,000 rpm. To use this function, a 0 ... 10 V output of the machine control is necessary.This version does not have a manual speed control potentiometer.
Technical details :
- Power : 1050 Watt / 230 V
- Revolutions: 3,500 ... 25,000 rpm

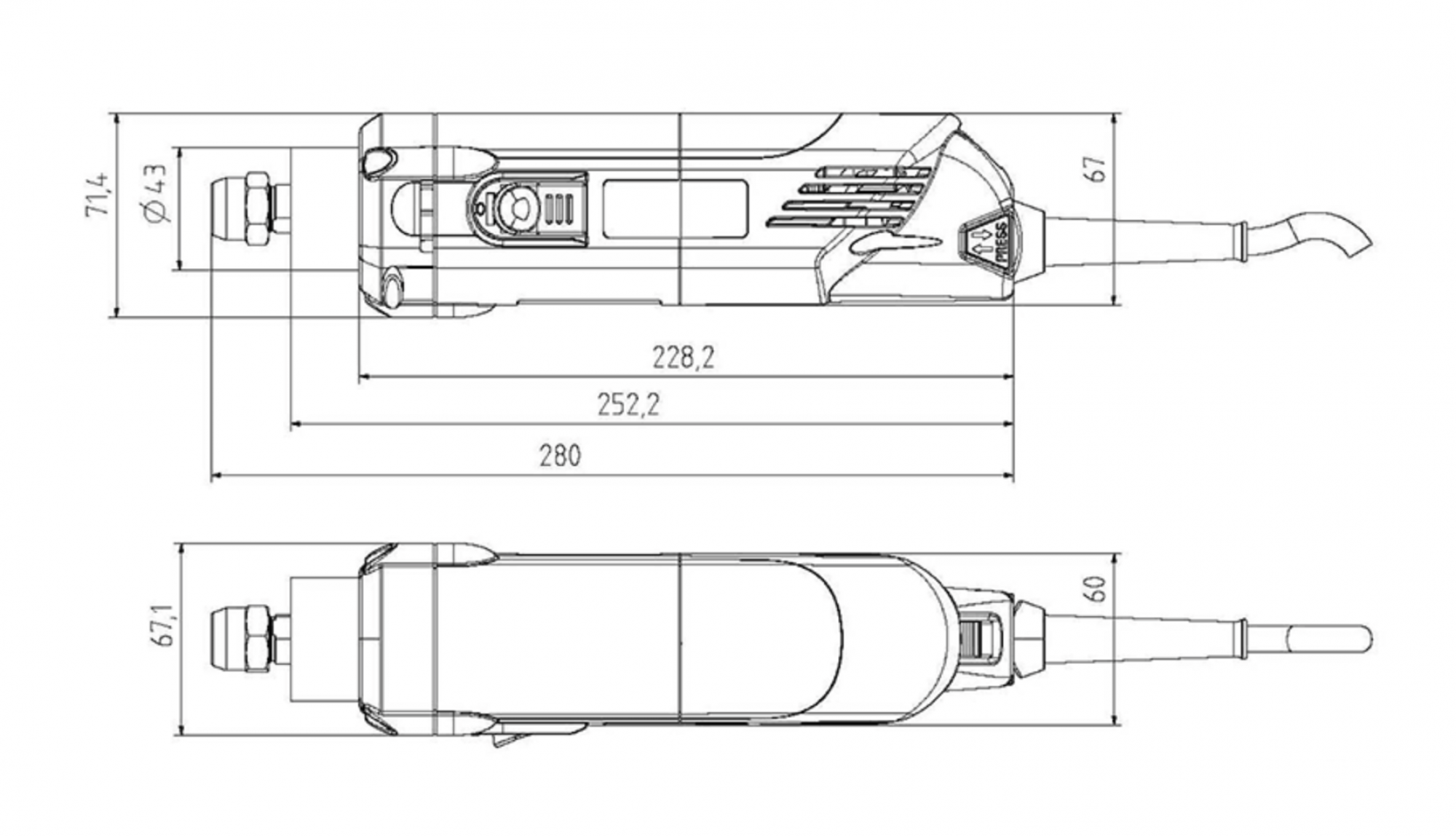

- Mounting: Ø 43 mm
- Weight: 1.7 kg
Product Description:
- Full wave electronics for constant performance and speed
- Soft-start and starting current limitation
- Special winding protection for the motor against dust and particles
- Steel motor flange with double bearing for high loads
- Spindle lock for easy tool chang
- Electronic overload protection prevents overheat of the motor
- Special switch off conductor brushes to protect motor
- Includes Precision collet 8 mm
Hint :
A precision version of this spindle using the ER16 collet
system is also available.
(AMB FME-P 1050 DI)
Delivery content

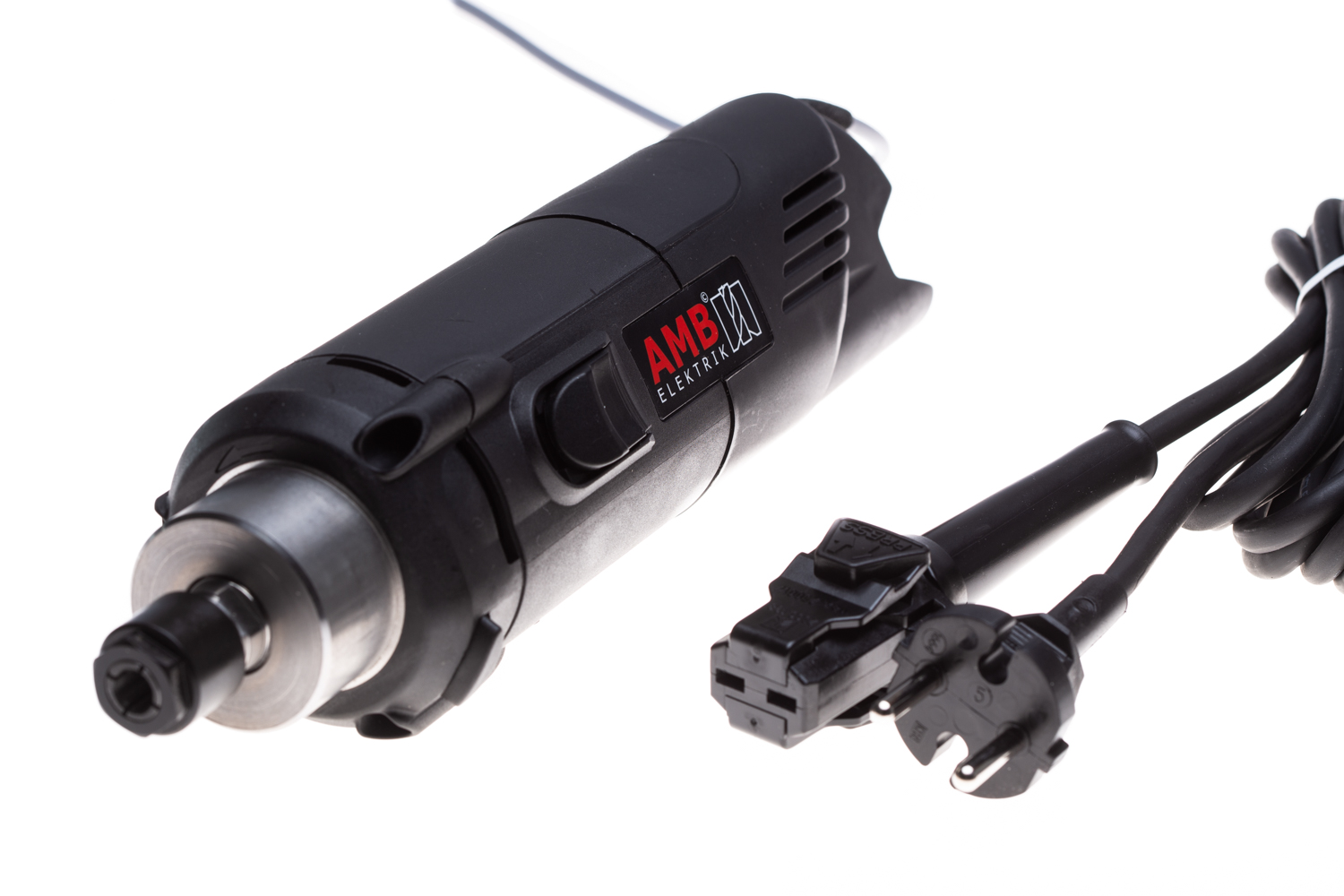

- Spindle motor 1050 W
- 4 m power cord with patented quick release
- Clamping nut
- 8 mm precision collet
- Instruction manual
Datasheet AMB FME portal series DI (german)
