Ball screw spindle 16 x 10 Length: 1319 mm
Ball screw spindle 16 x 10 Length: 1319 mm
Preview: Ball screw spindle 16 x 10 Length: 1319 mm
Preview: Ball screw spindle 16 x 10 Length: 1319 mm
Ball screw spindle 16 x 10 Length: 1319 mm
Ball screw spindle 16 x 10 Length: 1319 mm
Ball screw spindle 16 x 10 Length: 1319 mm
Mobile Preview: Ball screw spindle 16 x 10 Length: 1319 mm
Mobile Preview: Ball screw spindle 16 x 10 Length: 1319 mm

Ball screw spindle 16 x 10 Length: 1319 mm

Product No.:
AL.ZAN.KGS1610.1319
2 Weeks 2 Weeks  (abroad may vary)
Shipping weight:
1.82 kg per piece
149,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

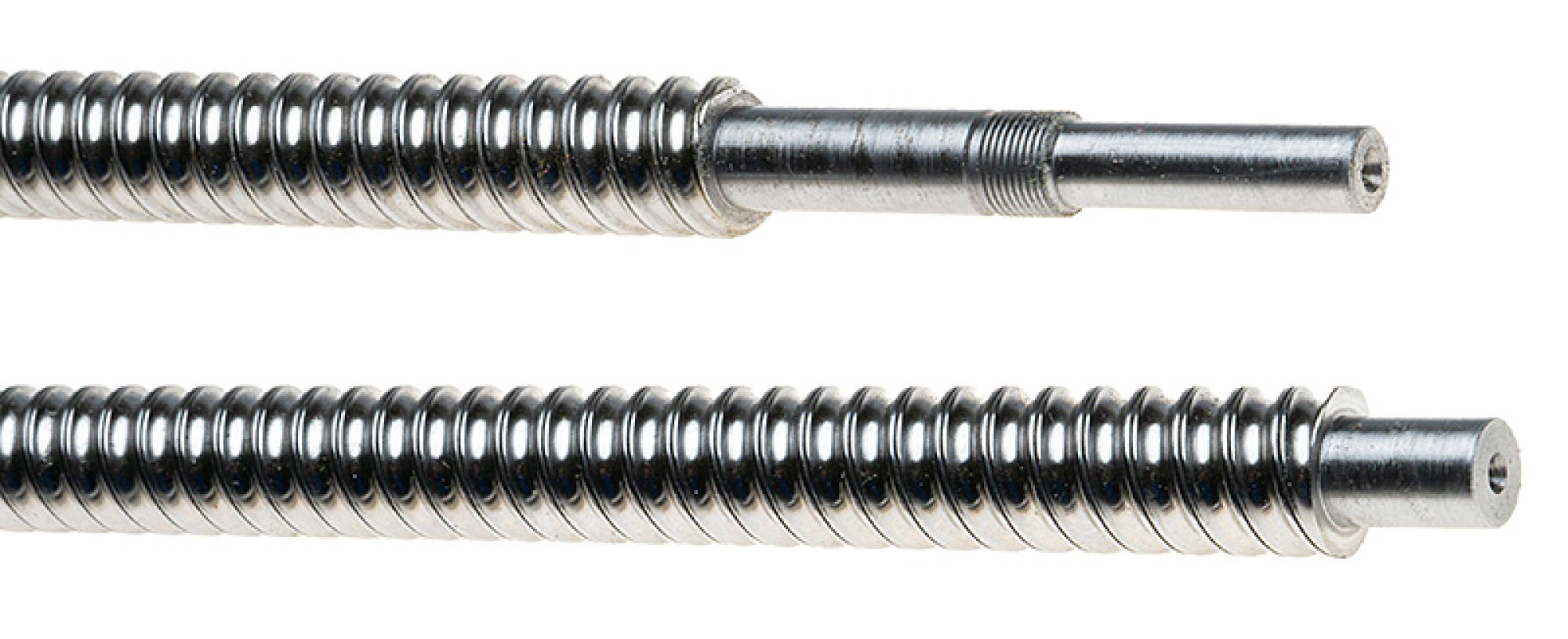

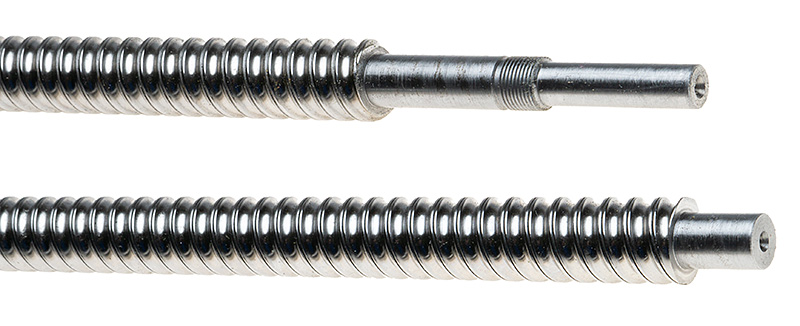

Ball screw 16 x 10

Total length: 1319 mm

  • rolled, hardened and polished
  • Material CF53, inductively hardened (HRC 60 +/- 2)
  • manufactured according to DIN 69051, tolerance class 7
  • Finished for bearings
For logistical reasons, this article can only be delivered by a forwarding agency. Unfortunately, it is therefore not possible to order via our shop. Write to us or call us. We would be happy to make you an individual offer including transport costs.
Documentation

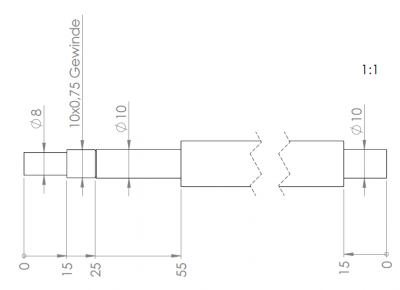

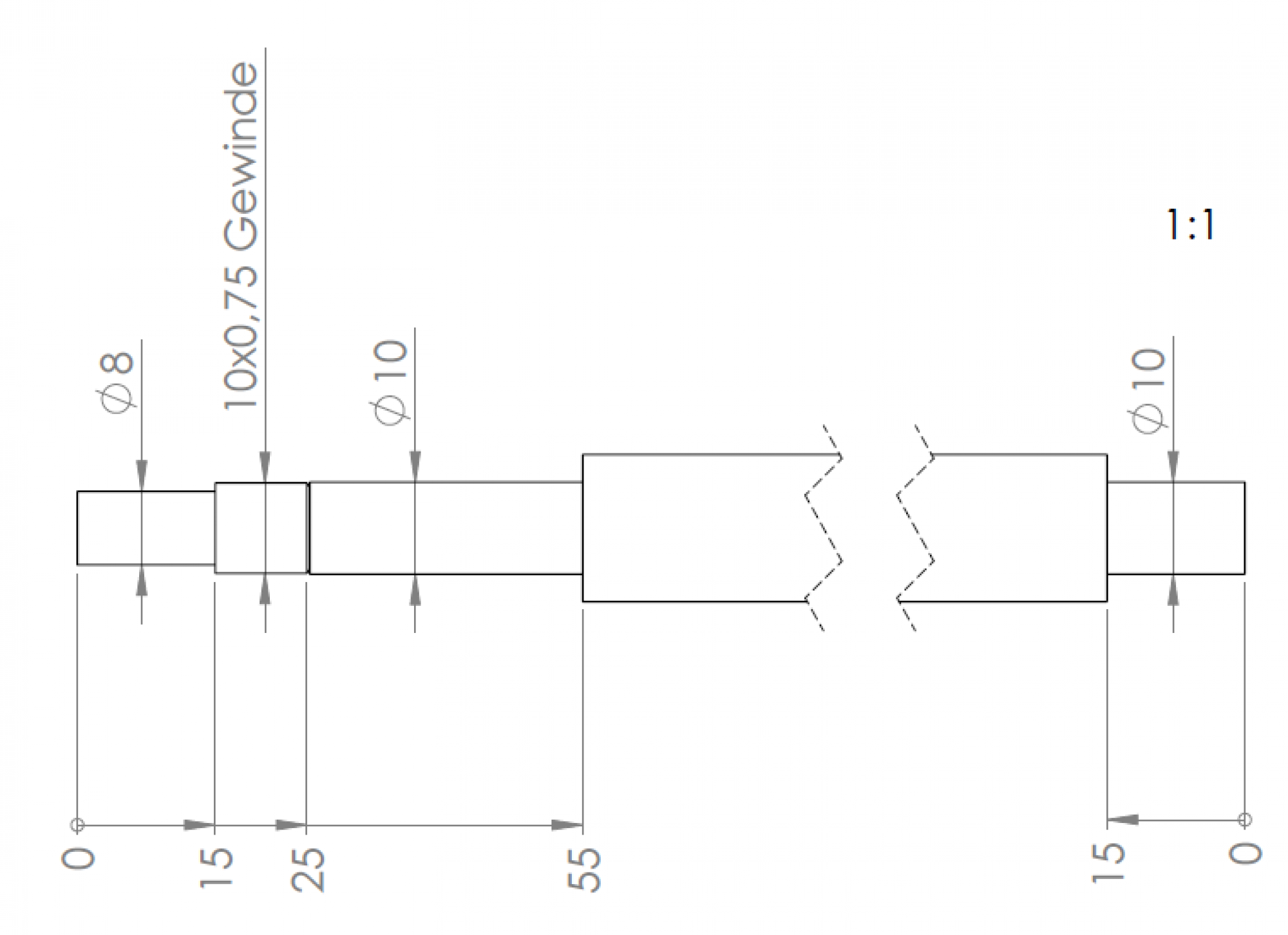

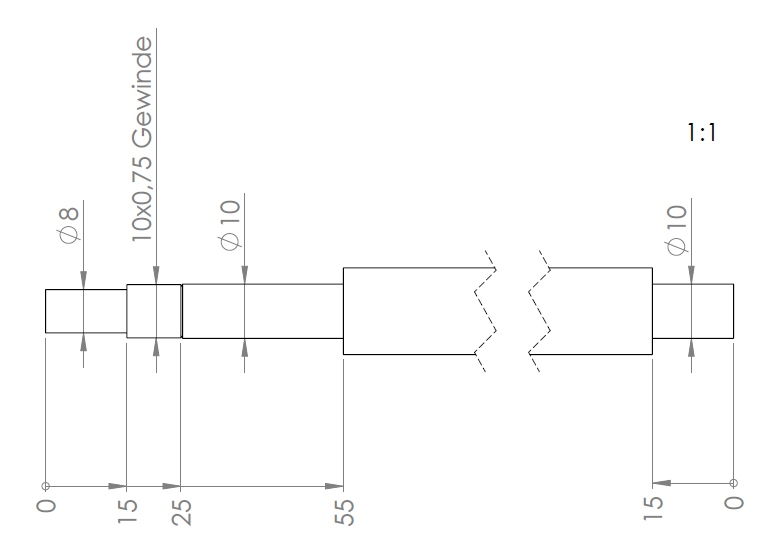

  Drawing

Customer reviews

Unfortunately there are no review yet. Be the first who rate this product.
