Machine Vise MS22

The MS22 is not a centering vise, as there is only one movable jaw. However, the basic design with the frame to be screwed firmly to the workpiece support makes it almost as versatile. All the more so as all accessories such as clamping prisms and mandrels can be used with the MS22. Small series can thus be easily implemented with good repeat accuracy.

The MS22 also has the low height (26 mm) and thus suitability for machines with a low Z-axis in common with the centering vices.

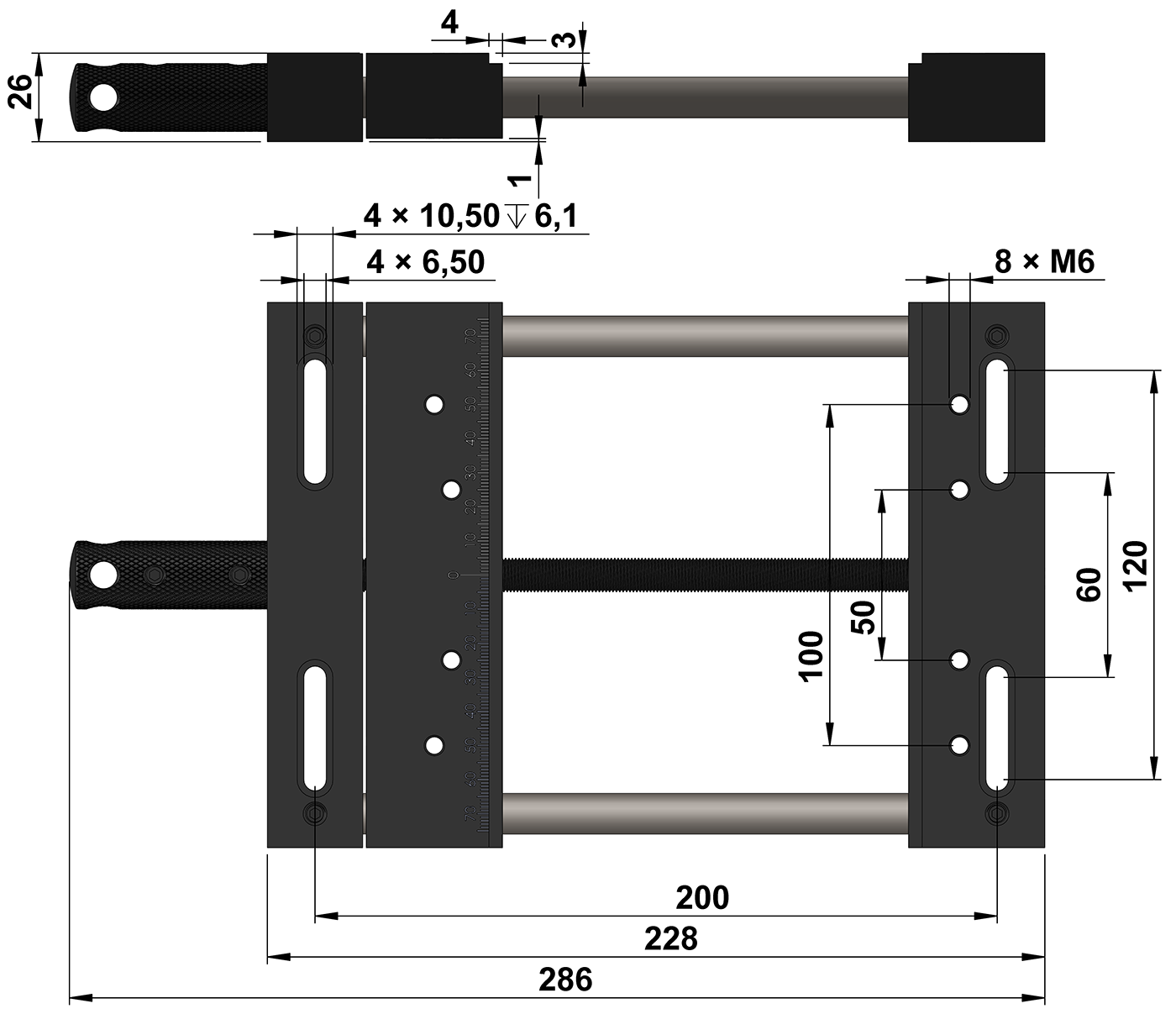

Dimensions:
Length without knob: 228 mm
Length with knob: 286 mm
Width: 160 mm
Wingspan Max: 119 mm
Weight: 1850 g

Features:
Two round precision guide rails 12 mm, secured with a clamping groove
Plain bearing made of POM for low resistance when clamping
Abrasion-resistant, laser-engraved measuring scale on the clamping jaw for quick workpiece positioning
Threaded spindle made of material with increased tensile strength
Fine thread M10 x 1 for increased clamping force
50 mm clamping grid on length, 60 ... 120 mm on width (depending on the model)
Elongated holes for individual positioning
Aluminum parts black anodized
Versatile accessories for more clamping options
