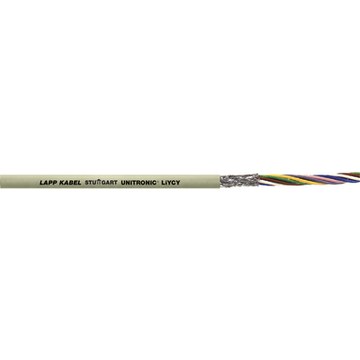

Control CableUNITRONIC® LiYCY 18 x 0.25 mm²

Twisted pair, shielded, PVC-insulated, PVC-inner- and outer sheath

Application range

• In power chains or moving machine parts
• Use in measuring, control and regulating circuits
• Power circuits for electrical equipment in automation engineering
• Assembly lines, production lines, in all kinds of machines
• Plant engineering

Technical specifications

• Cross-section: 3 x 2 x 0.25 mm²
• Outer-Ø: 8.8 mm
• Colour: Grey
• Bending radius: Occasionally moved: 15 x outside diameter
• Range of temperature: Flexing: -5 ... +70 °C, Fixed installation: -40 ... +80°C
• Material: Isolation and outher sheath: PVC
• Standards: Flame retardant IEC 60332-1-2
• Core-Identcode: DIN 47100, table T9
• Conductor: stranded fine wire blank copper
• RoHS-conform: Yes
• Suitable for drag chain: No
• Screened: Yes
• Halogen-free: No
