Configurator for control units series C3

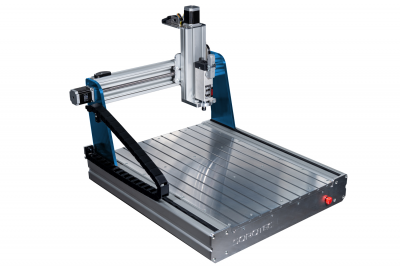

Proven and specially adapted to our BasicLine, CompactLine and AluLine series machines.

Both the compact sheet steel housing and the main circuit board are manufactured exclusively for Sorotec. A simple, extensively documented design, complete equipment with interfaces, expandability of the equipment and, last but not least, an affordable price set standards in this class.

The external power supply via a 36 V power supply unit makes the assembly of this control unit far less critical; all ‘dangerous’ parts and connections are located outside. Nevertheless, we also offer this control unit ready assembled on request - you should only build it yourself if you want to and can.

Nothing is missing from the interfaces: Switched spindles can be connected. Tool length sensor, emergency stop, everything has its place on the clearly labelled terminal strip. In addition, 24 V outputs are available to switch the 230 V for the milling spindle or peripherals such as chip extraction or minimum quantity lubrication via the optionally available switchbox.

A selection of interfaces is available for connection to control software.

Options for controls and sensors:

• Selection of output stages with increased power
• Control of motors with integrated drivers
• Operation of two output stages in master/slave mode - Operation for dual drives
• Control of up to 5 output stages or control of up to 5 motors with integrated drivers
• Speed control of spindles both with gantry connection and via a frequency converter
• Connection of mechanical or inductive reference switches
• Display of the machine status via LED

Please note that Estlcam does not support a fourth axis.

Dimensions:
W x H x D: approx. 250 x 148 x 440 mm

Scope of delivery:

• Controls and sensors according to selection
• Connection control software according to selection
• 24V power supply unit to supply external components
• Power supply: 36V external power supply unit
• Housing: Sheet steel housing series C3
