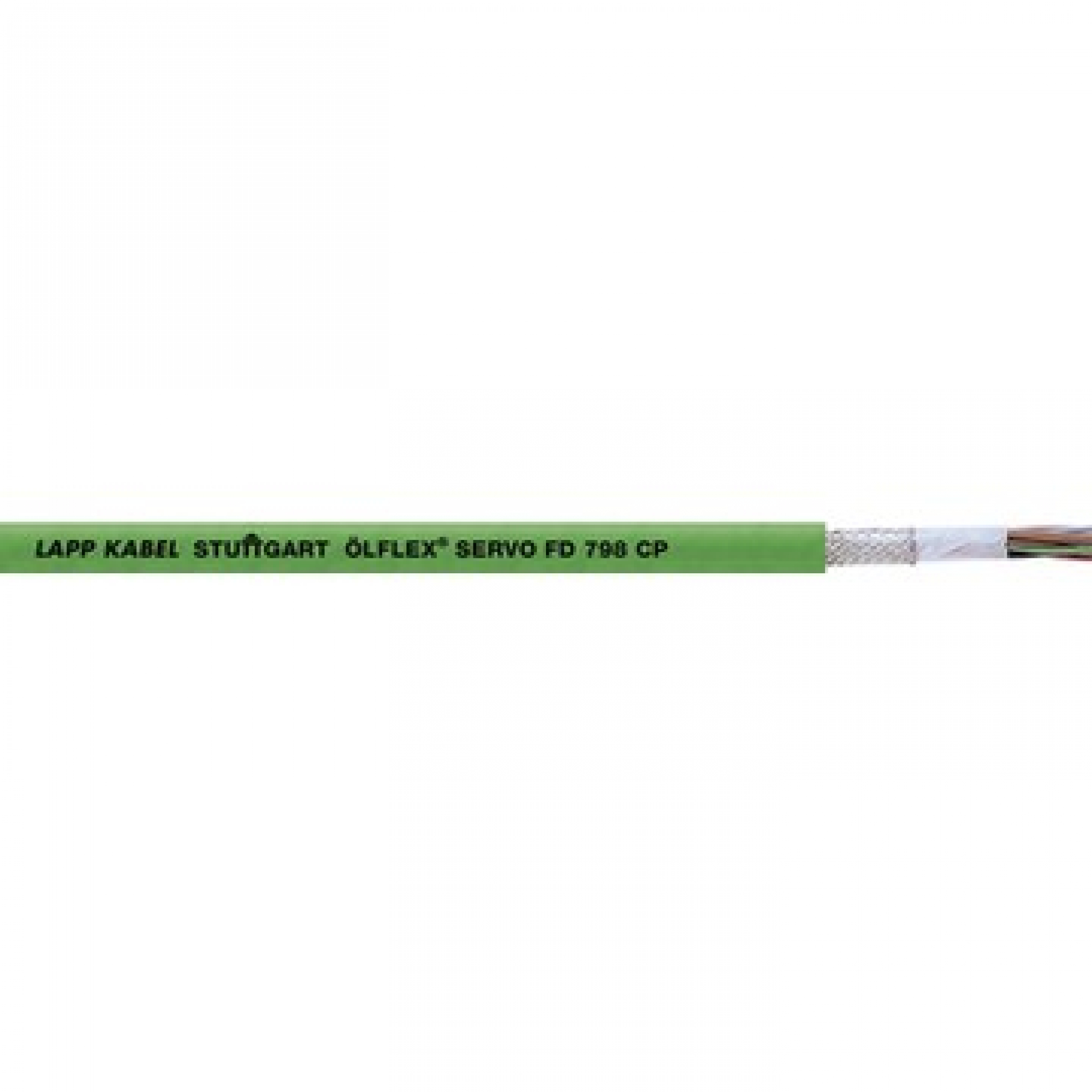

Control cable ÖLFLEX® SERVO FD 798 CP 9 x 0.5 mm²

Suitable for drag chain, highly flexible, shielded

PVC -insulated, PVC-inner- and outer sheath

Application range

• In power chains or moving machine parts
• Use in measuring, control and regulating circuits
• Power circuits for electrical equipment in automation engineering
• Assembly lines, production lines, in all kinds of machines
• Plant engineering

Technical specifications

• Cross-section: 12 x 0.5 mm²
• Outer-Ø: 8.8 mm
• Colour: Green (RAL 6018)
• Test voltage: Core-Core: 1500 V, Core-Shield: 750 V
• Rated voltage: 30 V
• Bending radius: For flexible applications: 7.5 x outside diameter
• Range of temperature: Flexing: -40°C ... +90°C
• Material: Outher sheath: PUR, Insulation: PP
• Standards: Flame retardant IEC 60332-1-2, UL/CSA VW-1, FT1
• Conductor: stranded extra-fine wire
• RoHS-conform: Yes
• Suitable for drag chain: Yes
• Screened: Yes
• Halogen-free: Yes
