Cooling unit KG5000 ready for connection

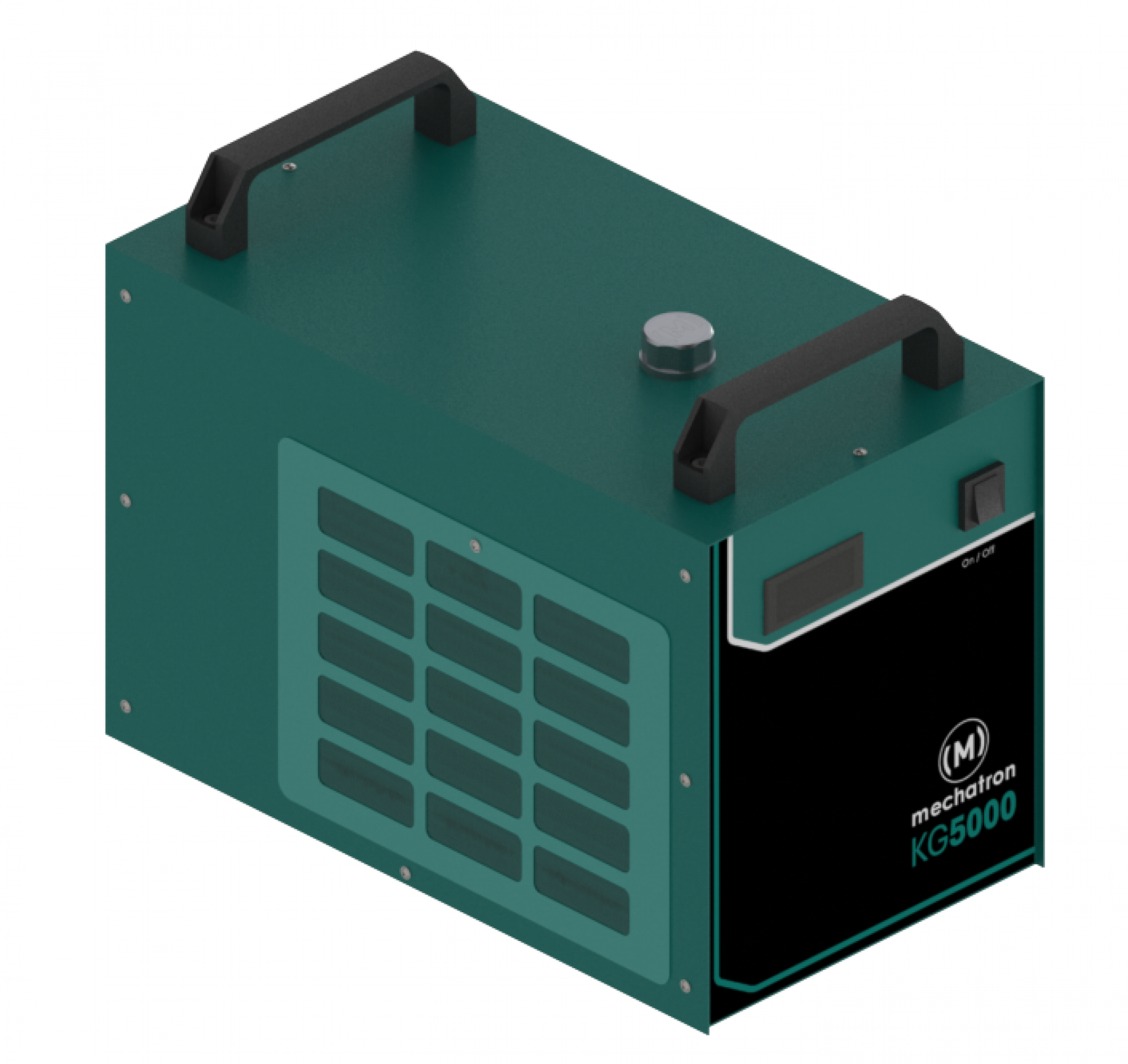

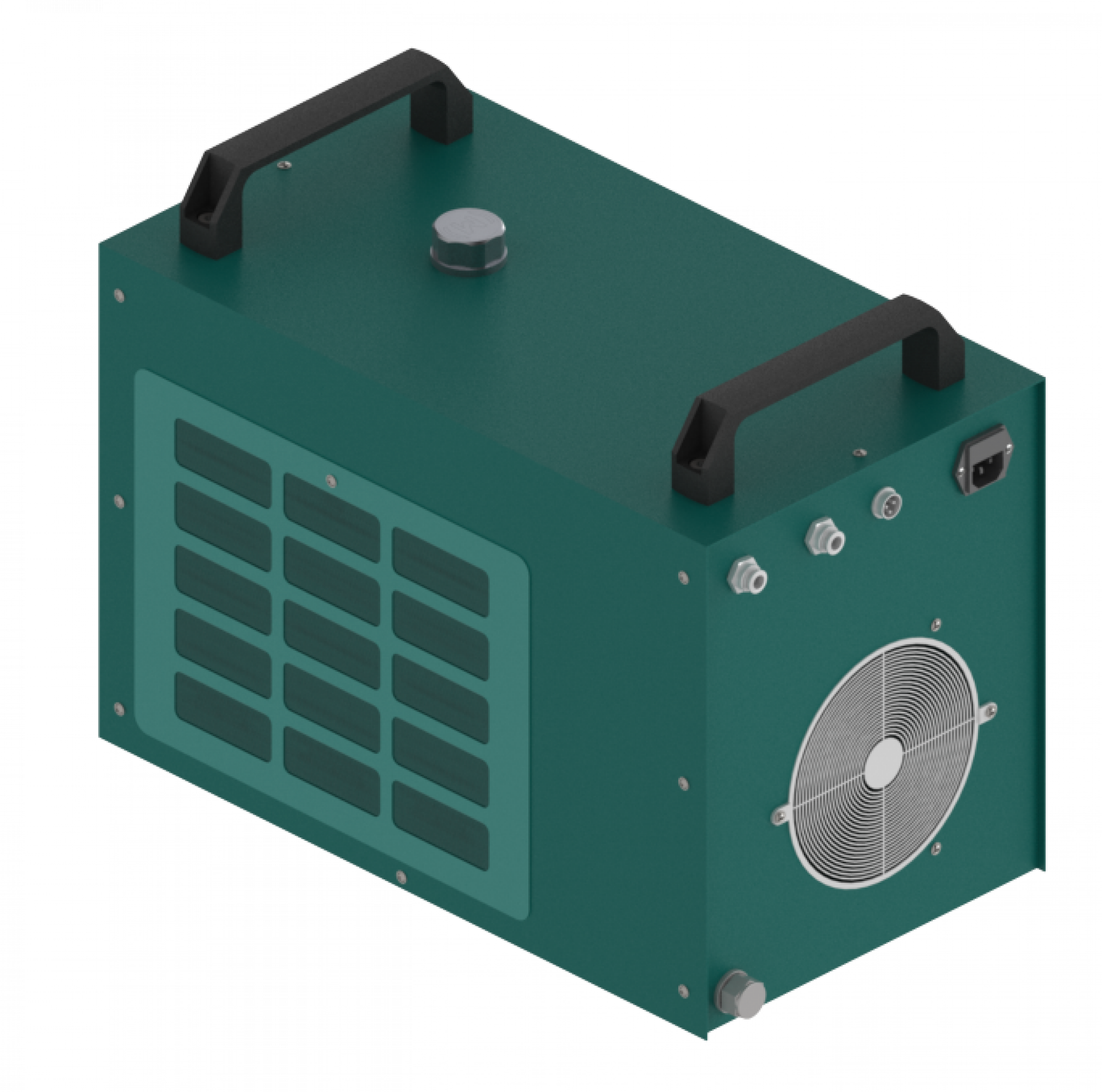

Cooling unit KG5000
The KG5000 is the stand-alone cooling device for all HF spindles up to 5 kW (at ambient temperature <30°C) offered by Sorotec, equipped with a high-performance cooler and a 9-liter reserve container. It also has a flow and temperature sensor and a temperature display.If the required flow rate is not reached, the system emits an acoustic warning signal and an error message via a relay contact, which can be forwarded to the control system. The device is operated with a cold appliance plug at 230 V~ / 50 Hz and is ready for use immediately without any further assembly work.
User Manual (german / english)Manufacturer: | Authorized representative for the EU: |
