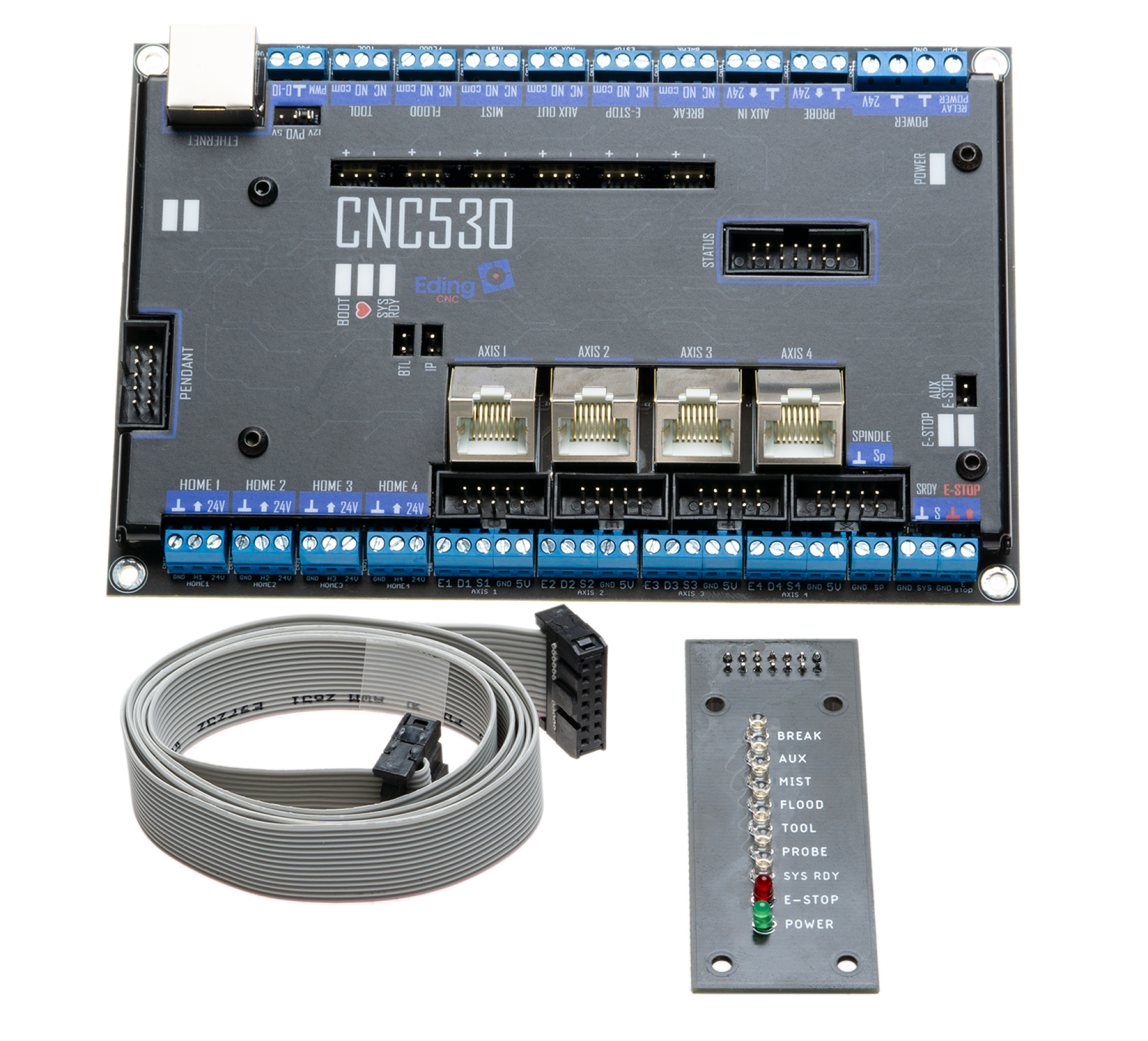

EDING CNC530

The new 4-axis CNC controller that includes all the necessary inputs and outputs to control a CNC machine. The board runs on 24 volts and has relay outputs for additional functionality.

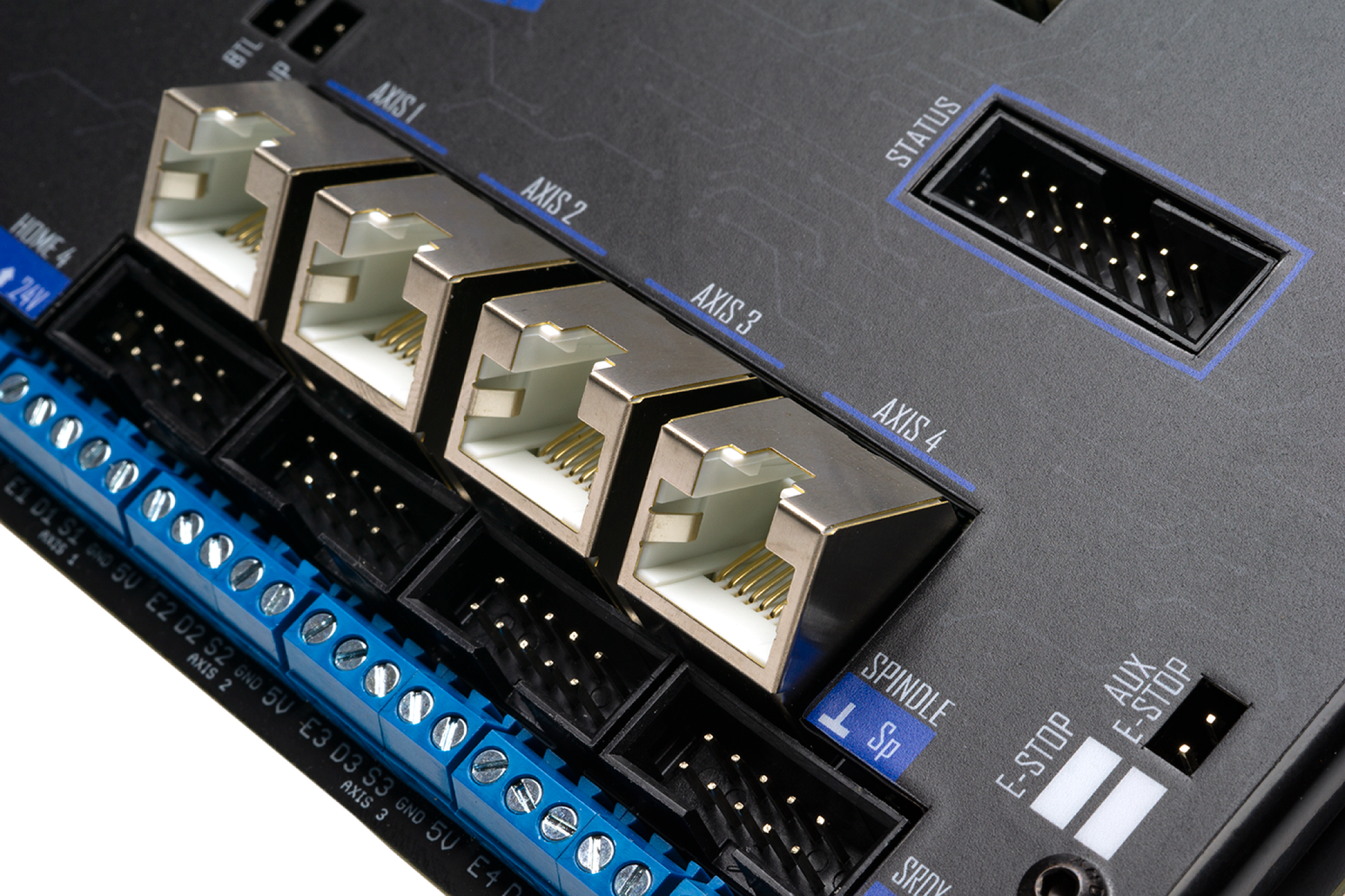

In addition, the outputs are equipped with three types of connectors: screw terminals, pin headers and RJ45, making it easy to connect the motor drivers using network cables and adapters.

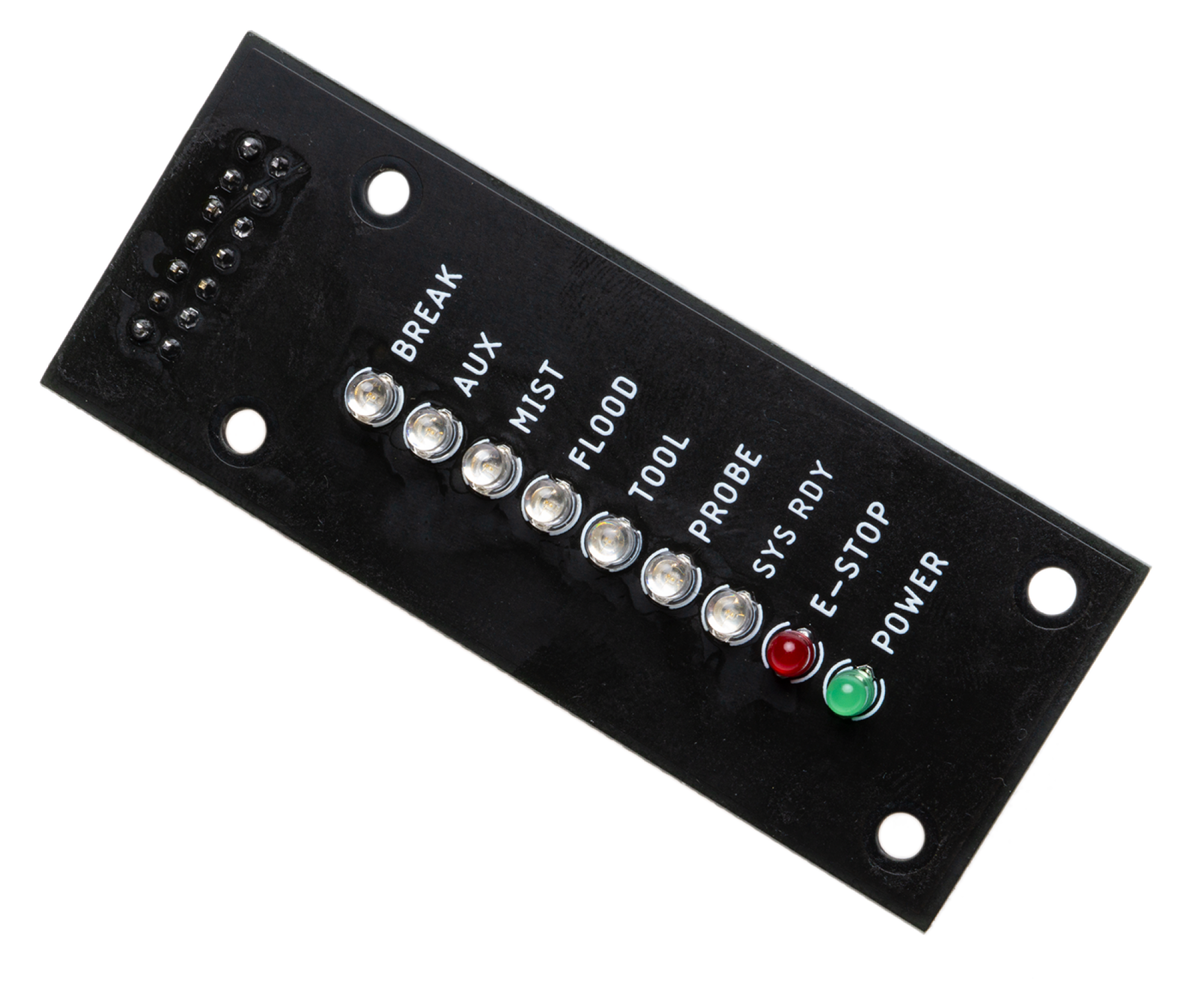

Outputs are automatically turned off when an emergency stop is activated for additional safety. In addition, a status board with LEDs indicates the status of the outputs and whether the probe or emergency stop is active, making it easier to monitor the activity of the controller.

Technical specifications
Operating voltage: 24 V
Axes: 4
Max. step frequency: 125 kHz

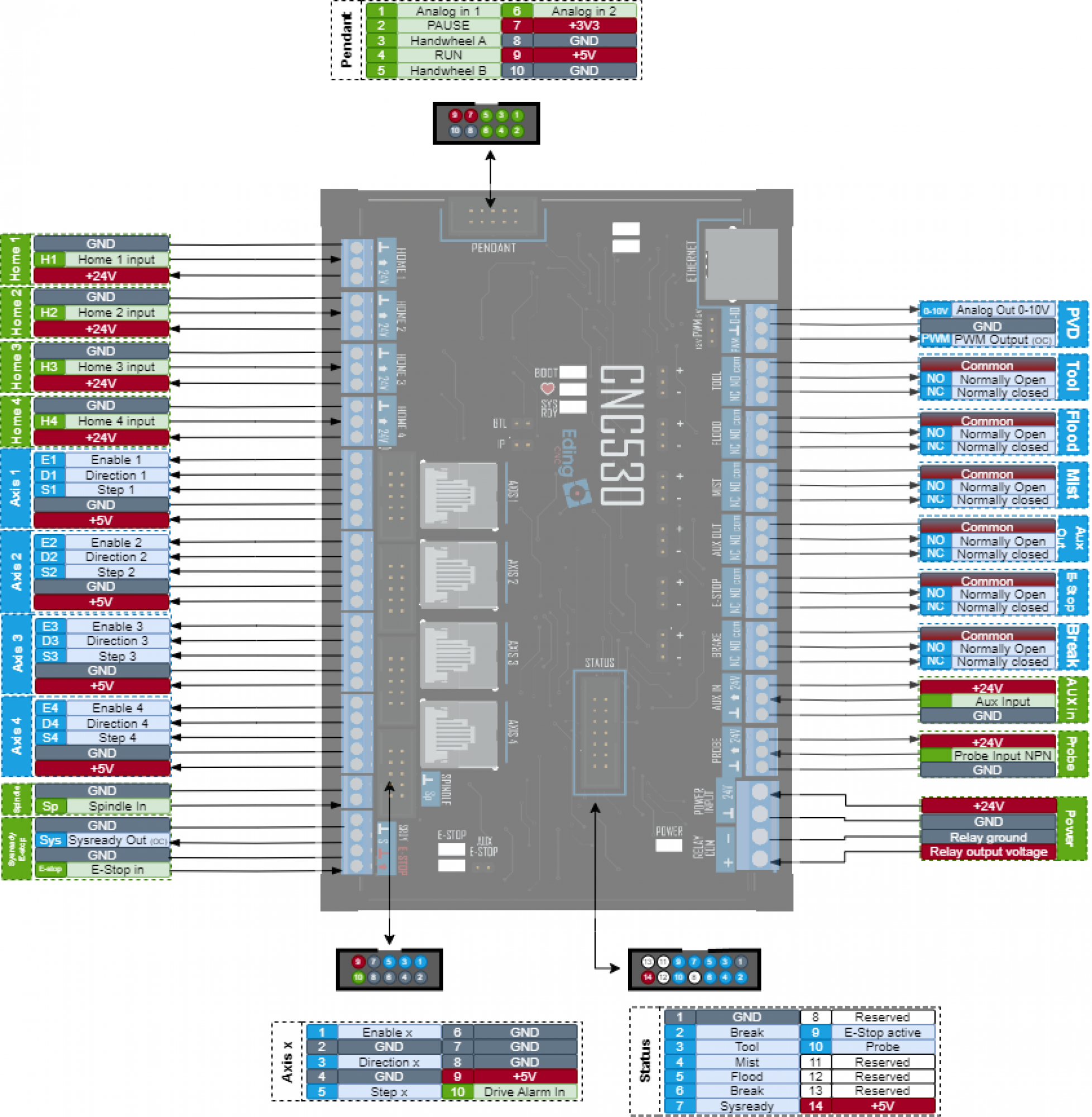

Axis connection: IDC (post socket), RJ45, screw terminal
Interface: Network (TCP/IP)
Modbus RTU interface: No
AUX input: 1, NPN, max. 5 V
Analog inputs: 2, 0 ... 3.3 V
Alarm inputs: 1, NPN, max. 5 V
External error input: No
Emergency stop inputs: 1, NPN, max. 5 V
Program start input: 1, NPN, max. 5 V
Pause input: 1, NPN, max. 5 V
Reference switch input: 4, NPN, max. 5 V
Input for tool length sensor: 1, NPN, max. 5 V
Spindle tachometer input: 1, NPN, max. 5 V
Spindle encoder input: No
Handwheel encoder input: 1, NPN, max. 5 V

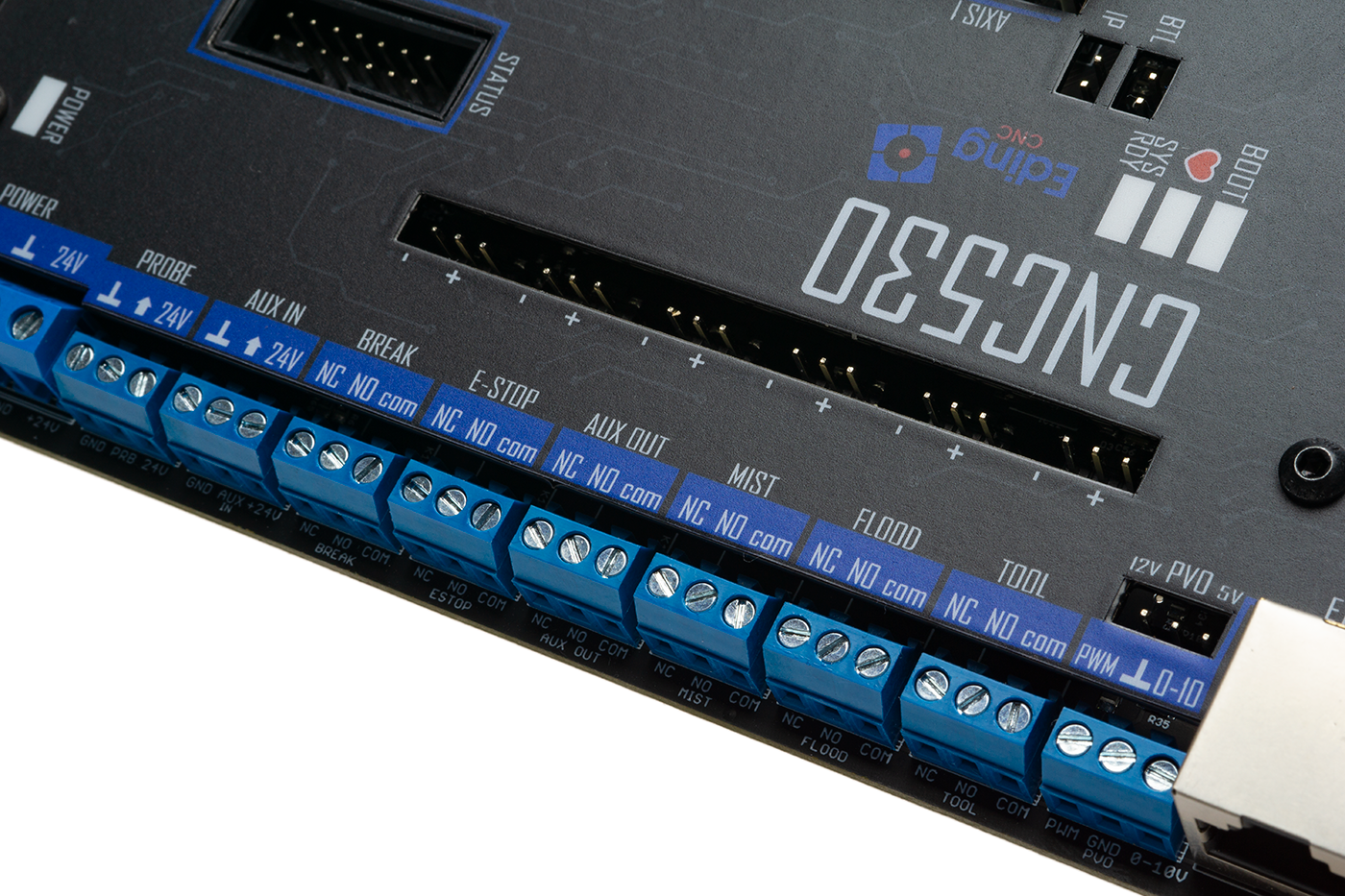

Mist cooling output: 1, relay
Flood cooling output: 1, relay
Brake output: 1, relay
AUX output: 1, relay
PWM output: 1, combined with 0 ... 10 V output, open collector or 5 V or 12 V
Analog output: (0 ... 10 V): 1, combined with PWM output
E-Stop output: 1, relay
Spindle/tool ​​output: 1, relay
Spindle direction output: No
Watchdog output: No
I2C output: No
"Activate drives" output: 1, TTL, 5 V
"Heartbeat" output: No
"Sysready" output: 1, open collector
Breakout board: Not required
External status display: Included
