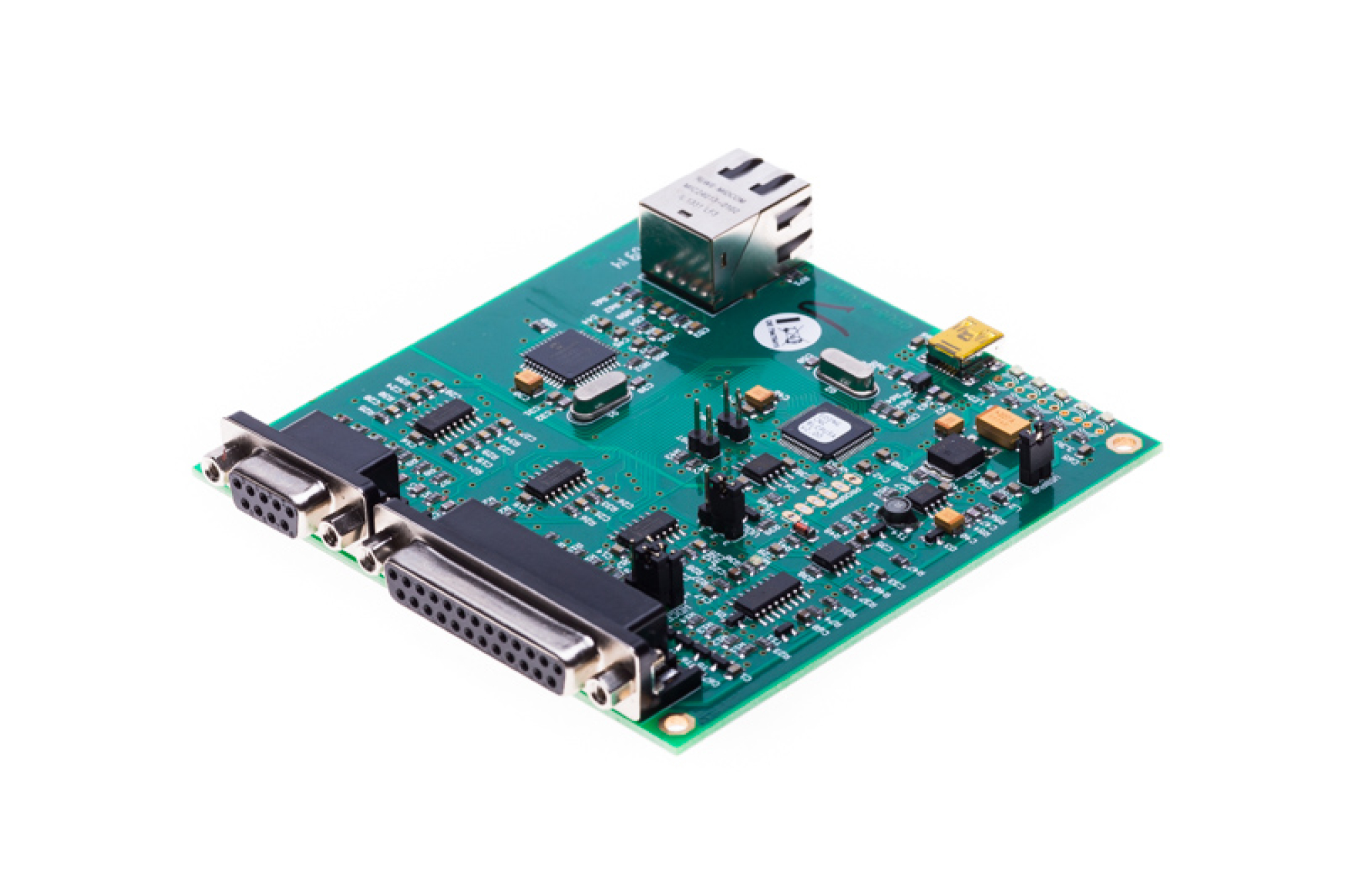

EDING CNC V5A-4E

Software-Download

The Eding-Software is permanently being developed. You always find the newest version on the Eding website for download. Downloads Eding

Sorotec-Macros for Eding-Software and fitting documentation also is waiting for download. Downloads Sorotec (Programs / Eding-CNC)

PC-based CNC Control for four axis
Ethernet- and USB connected

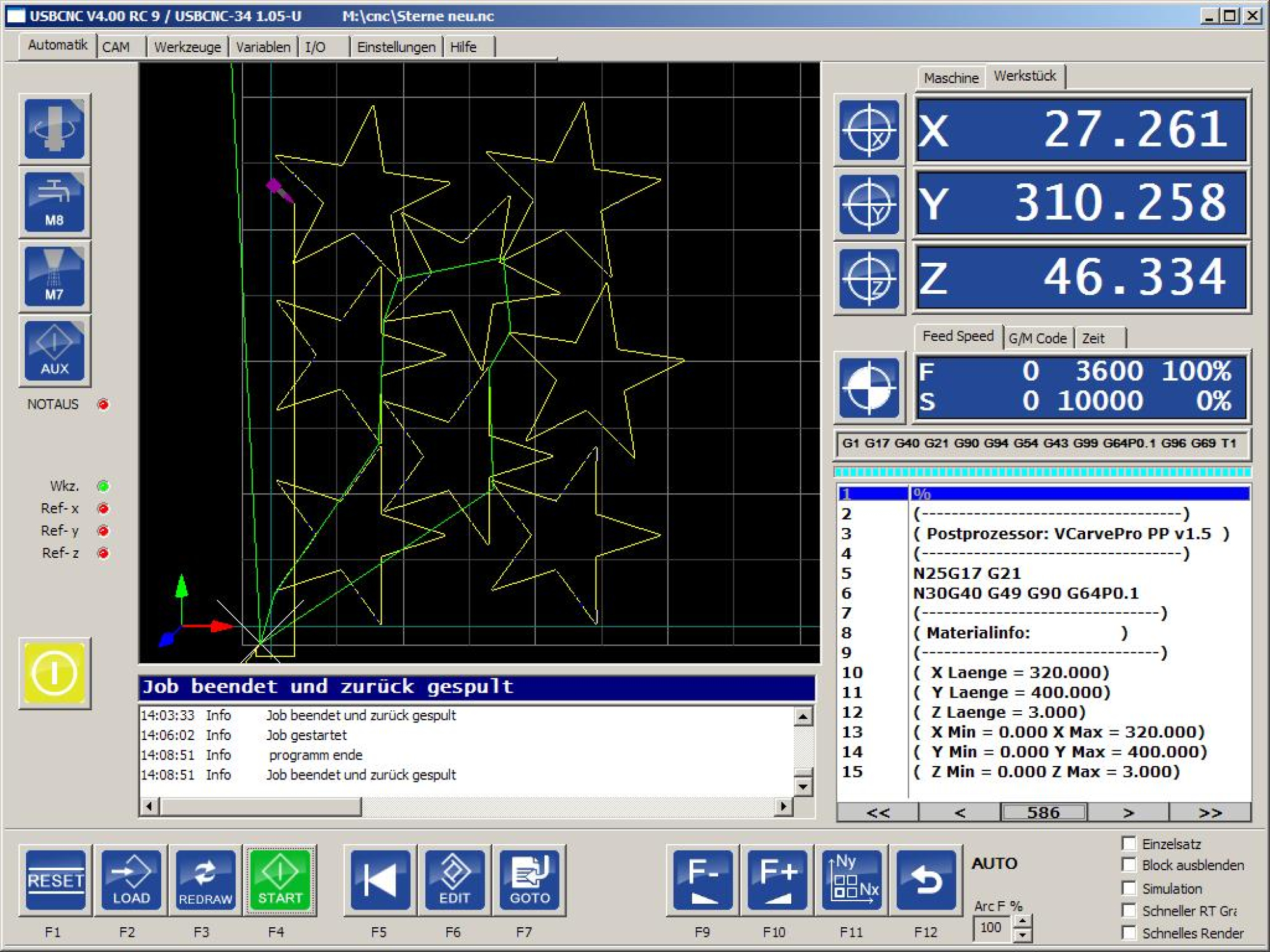

EDING-CNC is a CNC software which in combination with a hardware controller forms a fast and stable CNC-control. Look-ahead feed ensures optimal speed behavior. Also with G code programs which are generated by CAD / CAM and consist of many small line pieces.

The constantly evolving software is free. To operate the software, a hardware controller is needed, which is available in different performance classes. A major advantage of this solution: no parallel port is required on the PC and the compute-intensive step generation is outsourced to the external controller. High output frequencies are feasible this way.

Technical specifications

Inputs:

• 1 x emergency stop
• 4 x reference switch inputs (optionally upgradable to 4 on the software side)
• 1 x digitization input (tool length sensor / 3D button)
• Encoder inputs for encoder (handwheel)
• 1 x break
• 1 x start
• Connected via Ethernet or
• USB (V2.x) from PC / Laptop (no parallel interface is needed anymore!)

Outputs:

• 4 x axes (optionally upgradable to 4 on the software side)
• 1 x spindle start
• 1 x flood cooling
• 1 x minimal quantity lubrication
• PWM and 0 ... 10 V output for speed control of the spindle

Maximum step frequency:

• 125 kHz

Miscellaneous:

• PICstep compatible
• All inputs and outputs buffered and filtered
