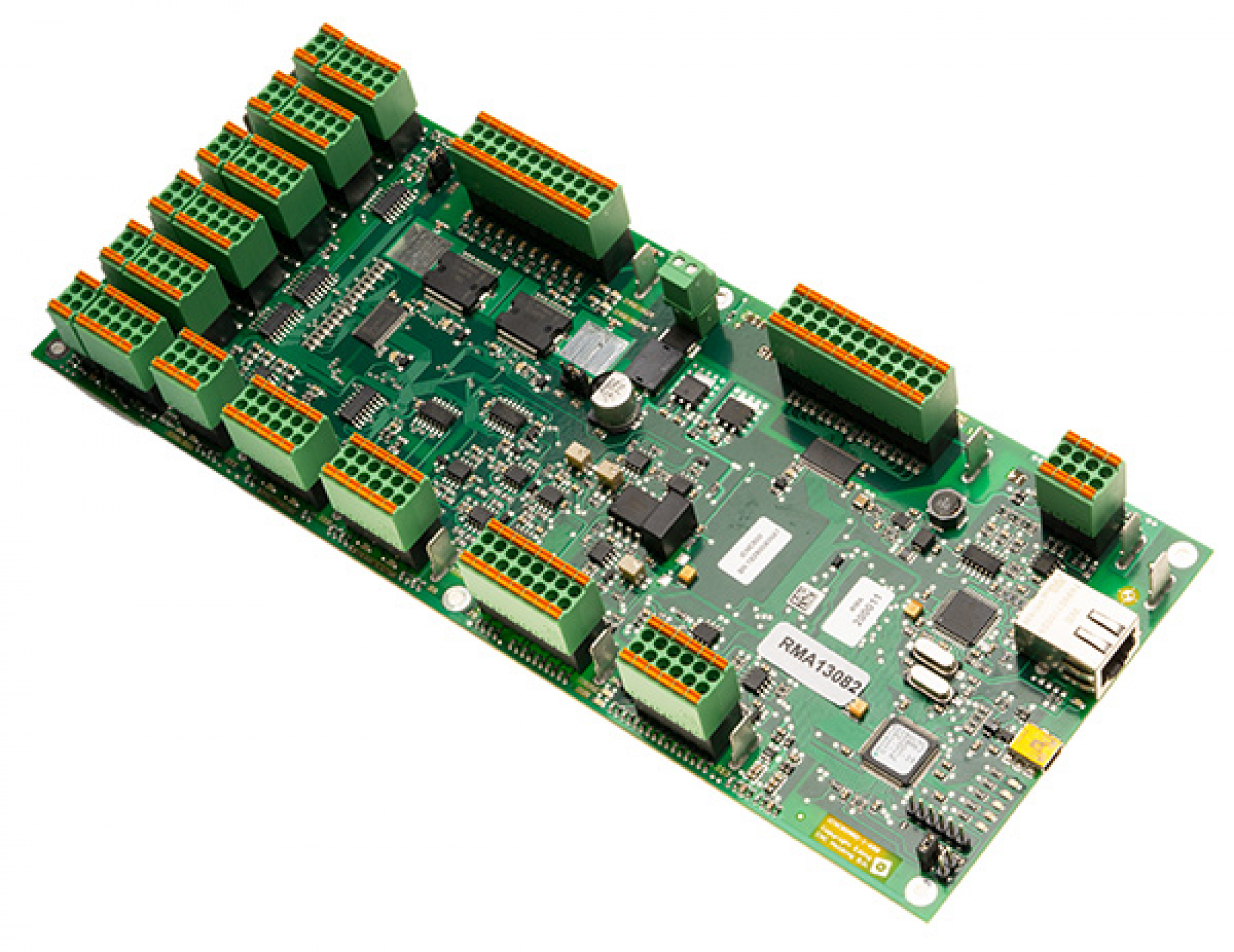

EDING-CNC iCNC600

• Designed for the industry, EMC and safety
• All I/O 24 V and short circuit protected, galvanic isolation where applicable
• Drive error inputs, stops all drives if one has an error
• Drive warning inputs, action configurable
• PT100 temperature sensor inputs
• Isolated analogue input for Plasma THC
• System Ready / Estop input for connection with Safety relay
• Easy Phoenix connectors, no break-out board needed
• 6 axes simultaneous control, fully interpolated
• 6 home inputs
• 6 drive error inputs
• 6 drive warning inputs
• 2 touch probe inputs
• 5 analog inputs
• Spindle sync input for thread cutting
• Flood coolant output
• Mist coolant output
• Spindle on/off output
• Spindle direction output
• Spindle 0 ... 10 V output
• Spindle PWM output
• 2nd Analog output
• 2nd PWM output
• 3rd PWM output
• 8 General purpose outputs
• 8 General purpose inputs
• MODBUS interface for additional I/O boards
• Ethernet connection for CNC operation
• USB connection for firmware upgrade
• Pendant connection with RUN/PAUSE/Hand wheel connection
• Size 270 x 125 mm
• DIN rail mount
