Edge Finder mechanical, titan coated, 10 / 10 mm

Product No.:
WGS.KT0003
2 Weeks 2 Weeks  (abroad may vary)
Shipping weight:
0.09 kg per piece
31,95 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

Edge Finder mechanical, titan coated, 10 / 10 mm

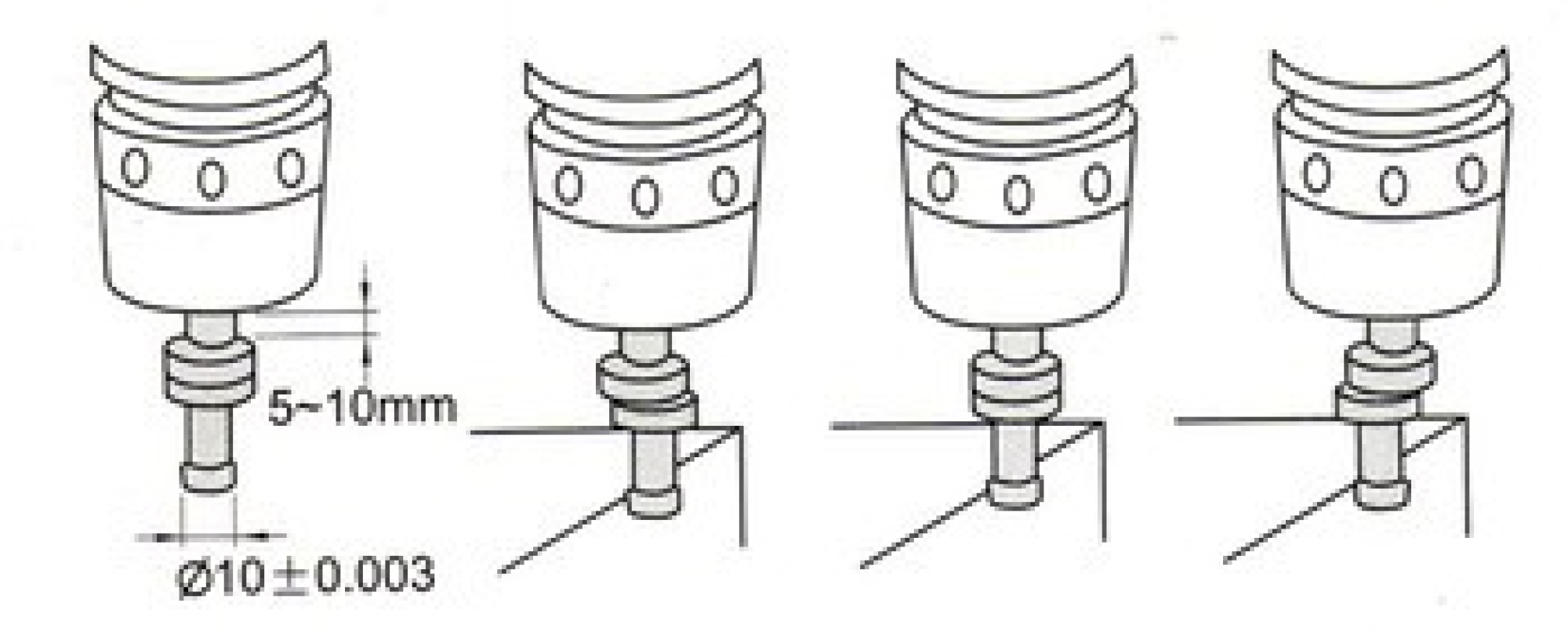

The Edge Finder is used for precise determination of edges of the workpiece and hole centers etc. during milling.

Specifications:

  • Hardened, titan coated
  • Magnetic protection
  • Rotating spindle
  • Length: 84 mm
  • Speed range of 400 ... 600 U/min
  • Shaft length: 38 mm
  • Feel length: 30 mm
  • Clamping shank diameter: 10 mm
  • Sensor Diameter: 10 mm
  • Probe hardness: HRC79
  • Alignment accuracy: 0,005mm

Includes:

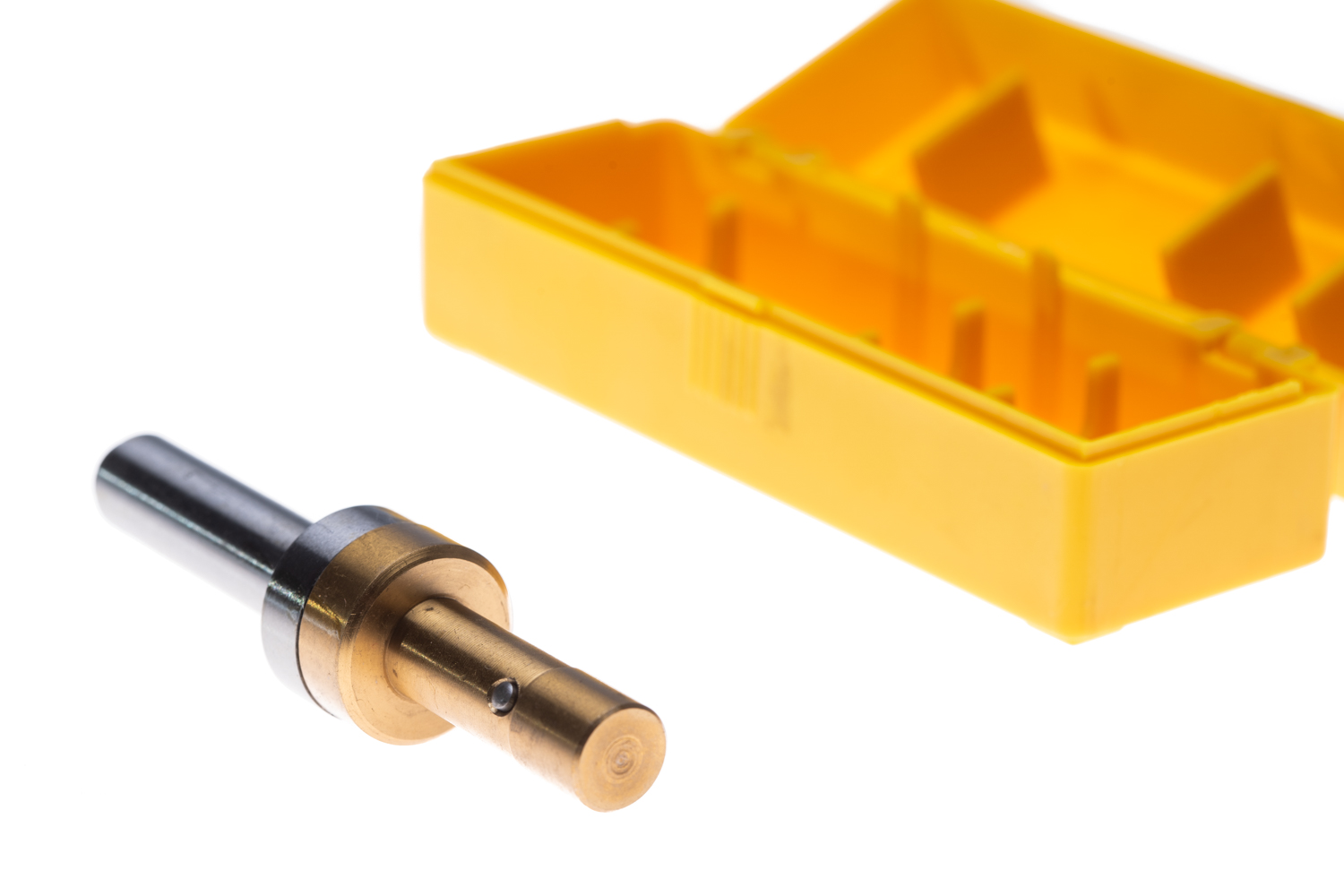

  • Edge finder
  • Plastic storage box
