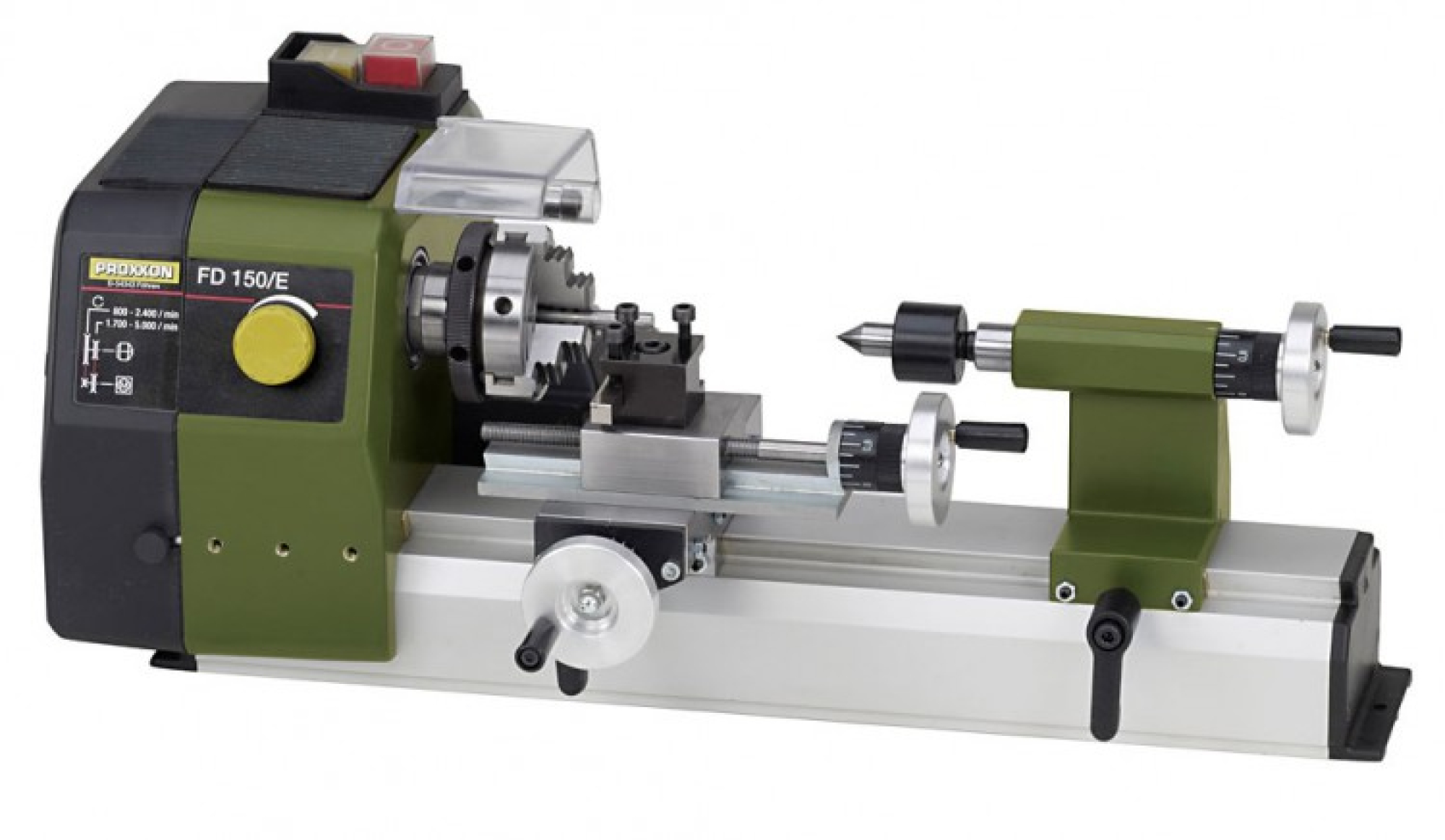

Fine lathe FD 150 / E

Machine base: With dovetail guide made of aluminum casting.

Headstock: from diecast aluminum. With softer DC special motor, 2-speed belt transmission and additional speed control: for high torque at lower speeds for larger workpieces and for the correct cutting speed even the smallest parts. Relay switch with emergency stop function and restart protection. Precision guided main spindle with continuous 8.5mm bore. Lining side fit for standard collets type ER 11th

Three jaw chuck: Self-centering (inner jaws 1 - 20 mm, outer jaws 20-60 mm).

Tailstock: from diecast aluminum. With quill and rotating center (fit MK 0 / short).

 Support: When manually moved on the bed and clamped with lever. Swivel tool holder for turning tools 6 x 6 mm. The editing is performed using the top slide (60 mm travel) and cross slides (40 mm travel). By angular adjustment of the upper slide turning of cones to +/- 45 °.

Adjusting wheels: With adjustable to 0 scale ring (1 graduation = 0.05mm, 1 revolution = 1 mm).

Other specifications:
 230 volts. 50/60 Hz. Length between 150 mm. Center height 55 mm. Centre height over slide 33 mm. Adjustment plan carriage (X) 40 mm, the top slide (Z) 60 mm. Tool holder for turning tools 6 x 6 mm. Bar capacity 8.5 mm. 2-stage belt transmission with speed control: Level 1 = 800-2800 / min. Level 2 = 1500-5000 / min. Size approx 360 x 150 x 150 mm. Weight approx 4.5 kg. Built according to protection class. 1
