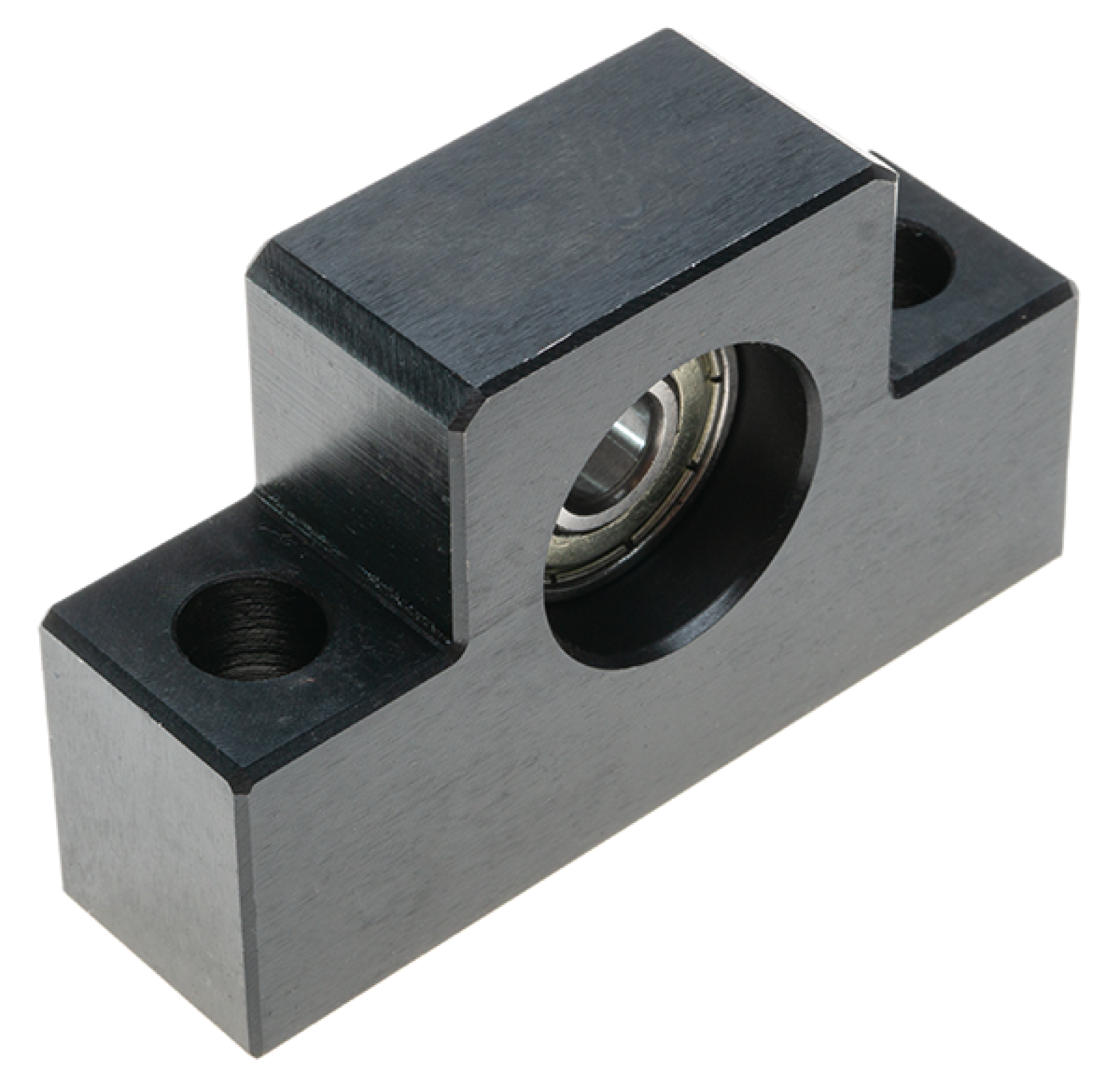

Float bearing block EF10 for Ø 12 mm ball screw Blue Line
Mounting block floating bearing EF10
for Ø 12 mm ball screw Blue Line
A spindle is held radially in the floating bearing block by using a deep groove ball bearing. When fastening the spindle with the supplied locking ring, the spindle is held radially in position, while the axial position remains variable. Axial fixation is only possible through the connection with a fixed bearing on the opposite side.

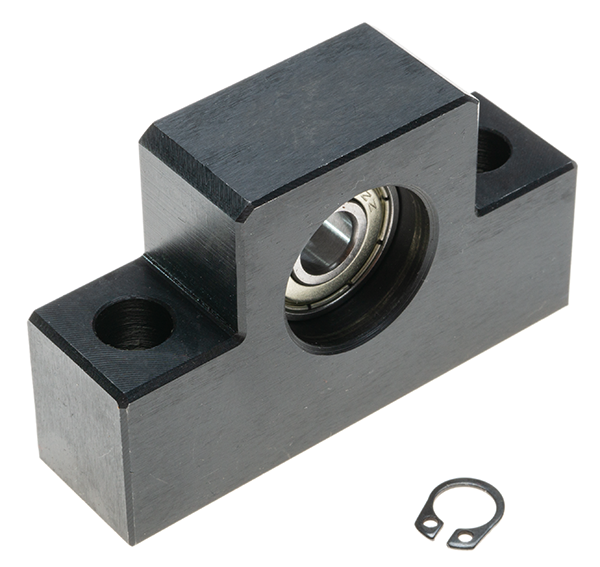

Scope of delivery
- Housing
- Ball bearing
- Shaft retaining ring
Floating bearing block data sheet (german)
