Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle
Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle
Preview: Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle
Preview: Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle
Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle
Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle
Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle
Mobile Preview: Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle
Mobile Preview: Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle

Floating bearing housing with 1 ball bearing for 16 mm ball screw spindle

Product No.:
AL.ZAN.LL16.01
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
0.025 kg per piece
22,76 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

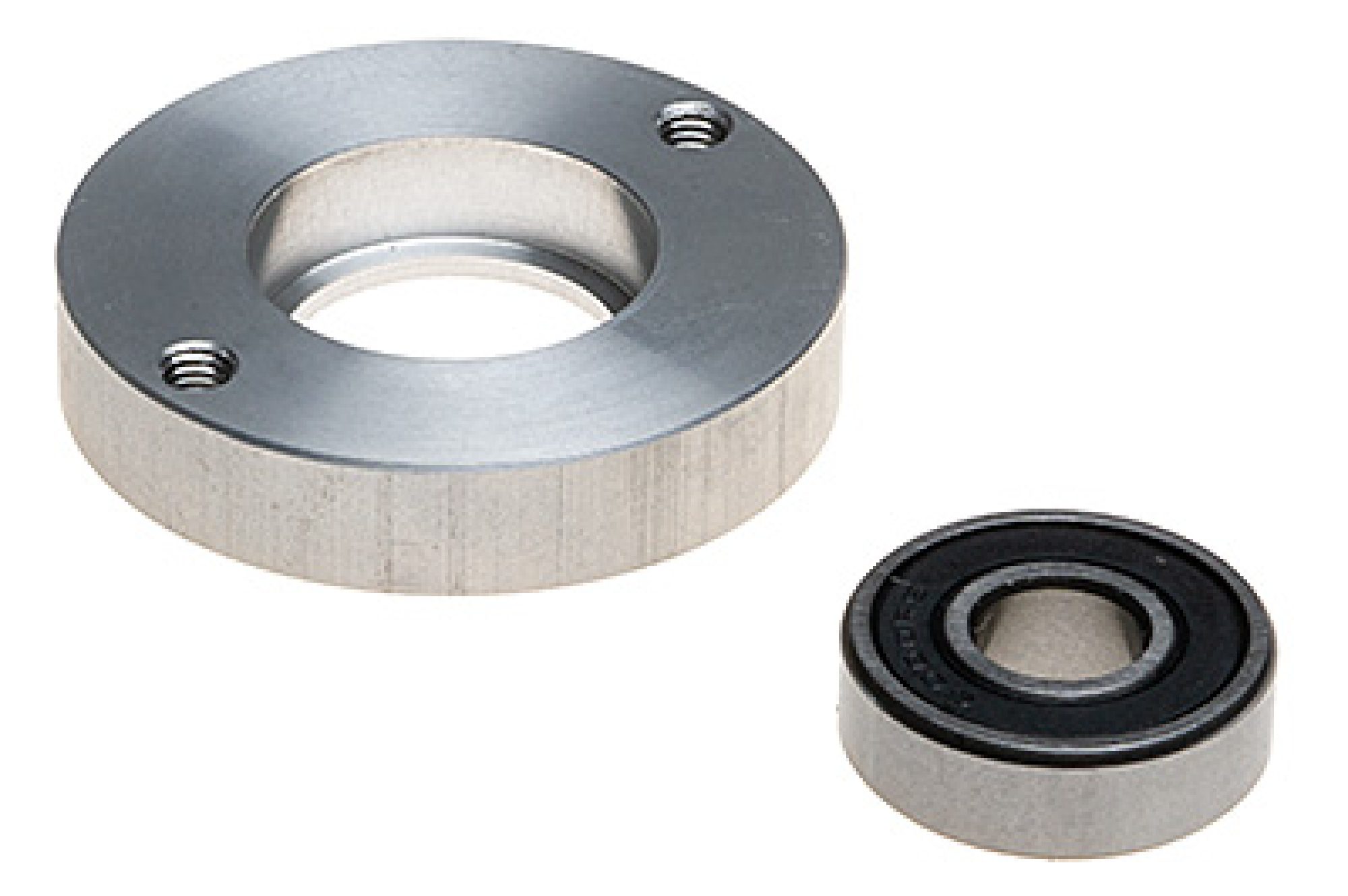

Floating bearing housing

with 1 ball bearing 6000-2RS and M5 threads

for 16 mm spindle
Documentation

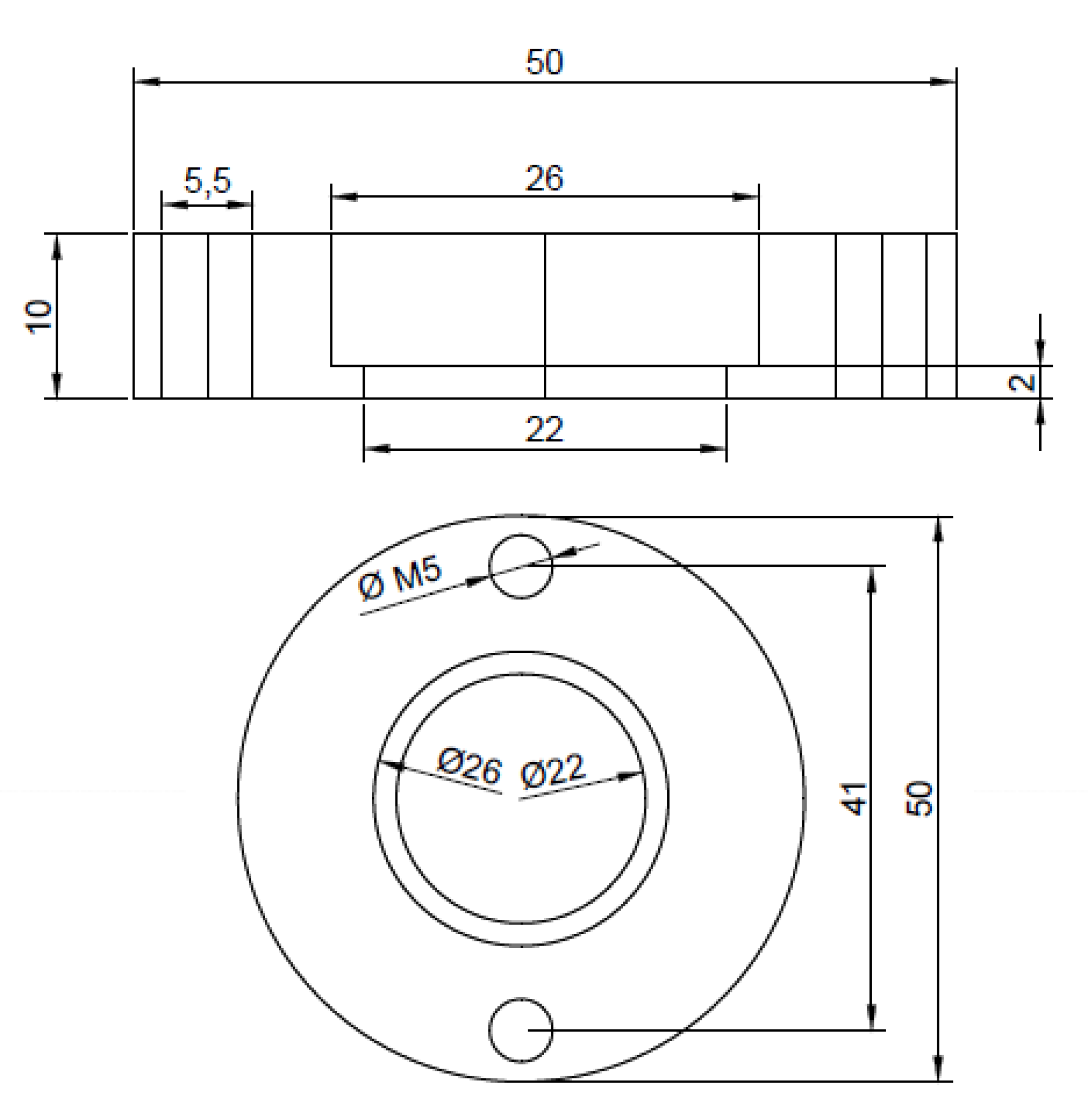

  Technical Drawing
