HF-Motor Teknomotor 0.40 kW | ER11 | 24,000 rpm | 230 V | COM24310054
Teknomotor HF-Motor 0.40 kW / ER11 / 230 V / 24,000 RPM | COM24310054
This HF motor has a lot to offer for its small size. Due to the small size and low weight of the motor, the bearings are also smaller, so that this motor can be operated at 24000 rpm without using a ceramic bearing. This is very interesting as the ceramic bearings are a very big cost factor in the engines. In this case, we can offer an HF motor with 24000 rpm at a reasonable price. Another nice feature is that the HF motor can be mounted in two different positions, either by means of screw connections or with the usual 43 mm clamping neck.Technical specifications:
- Power: 400 W
- Collet system : ER11
- Voltage: 230 V
- Max. RPM: 24,000
- Weight: 1.8 kg
- HF Motor
- ER11 clamping nut
- Instructions
Required accessories (not included):

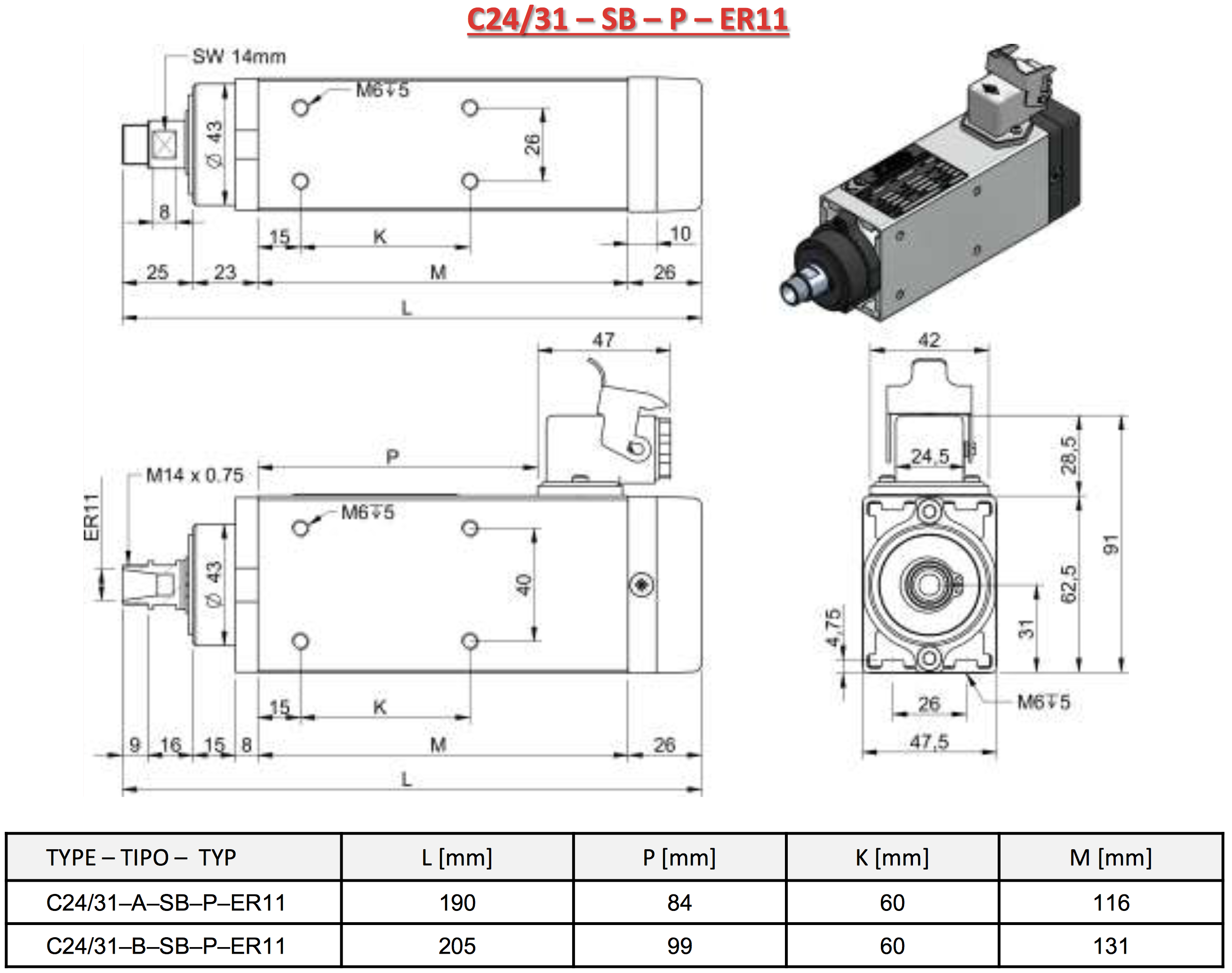

Datasheet COM24310054
COM24310048.stp

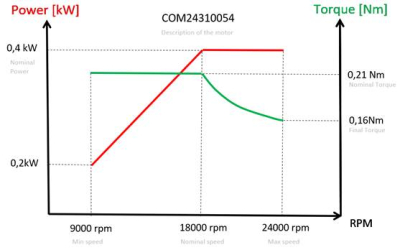

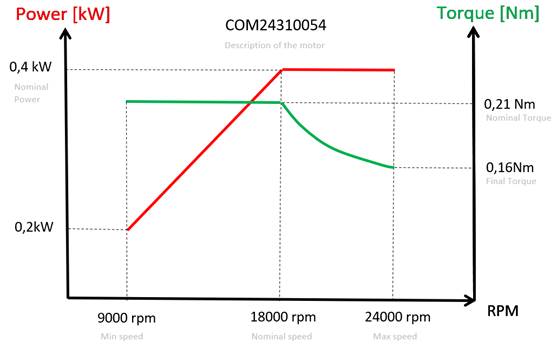

Torque curveManufacturer: | Authorized representative for the EU: |
