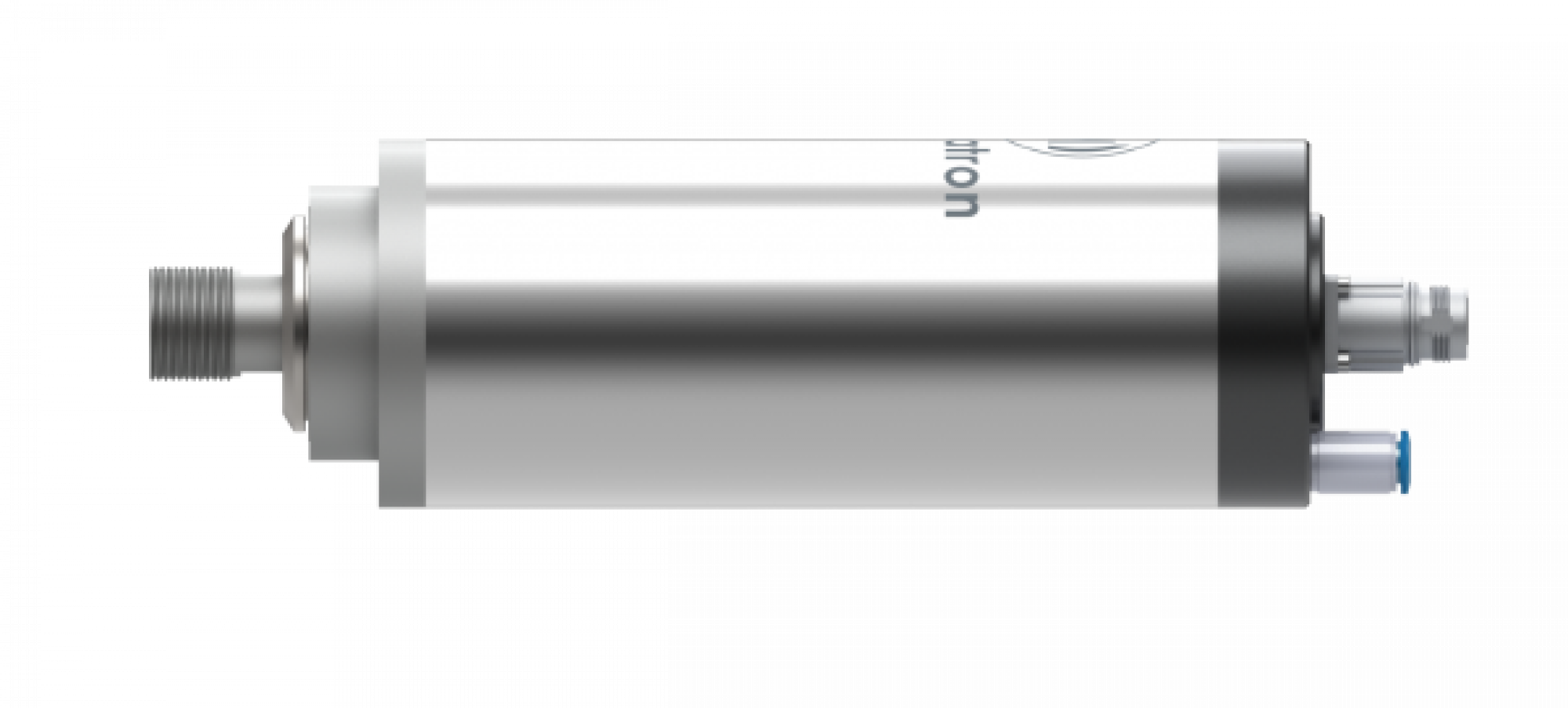

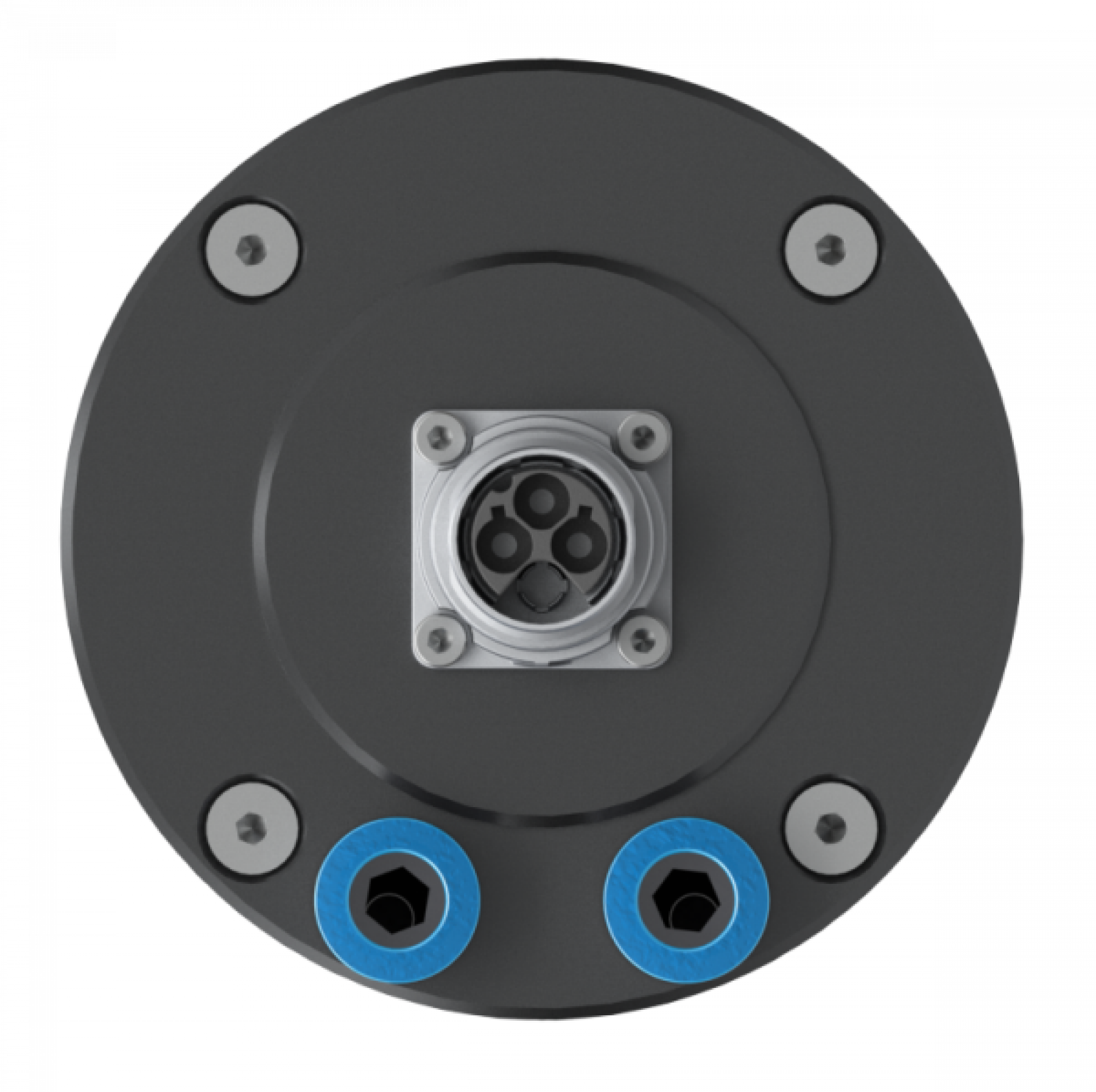

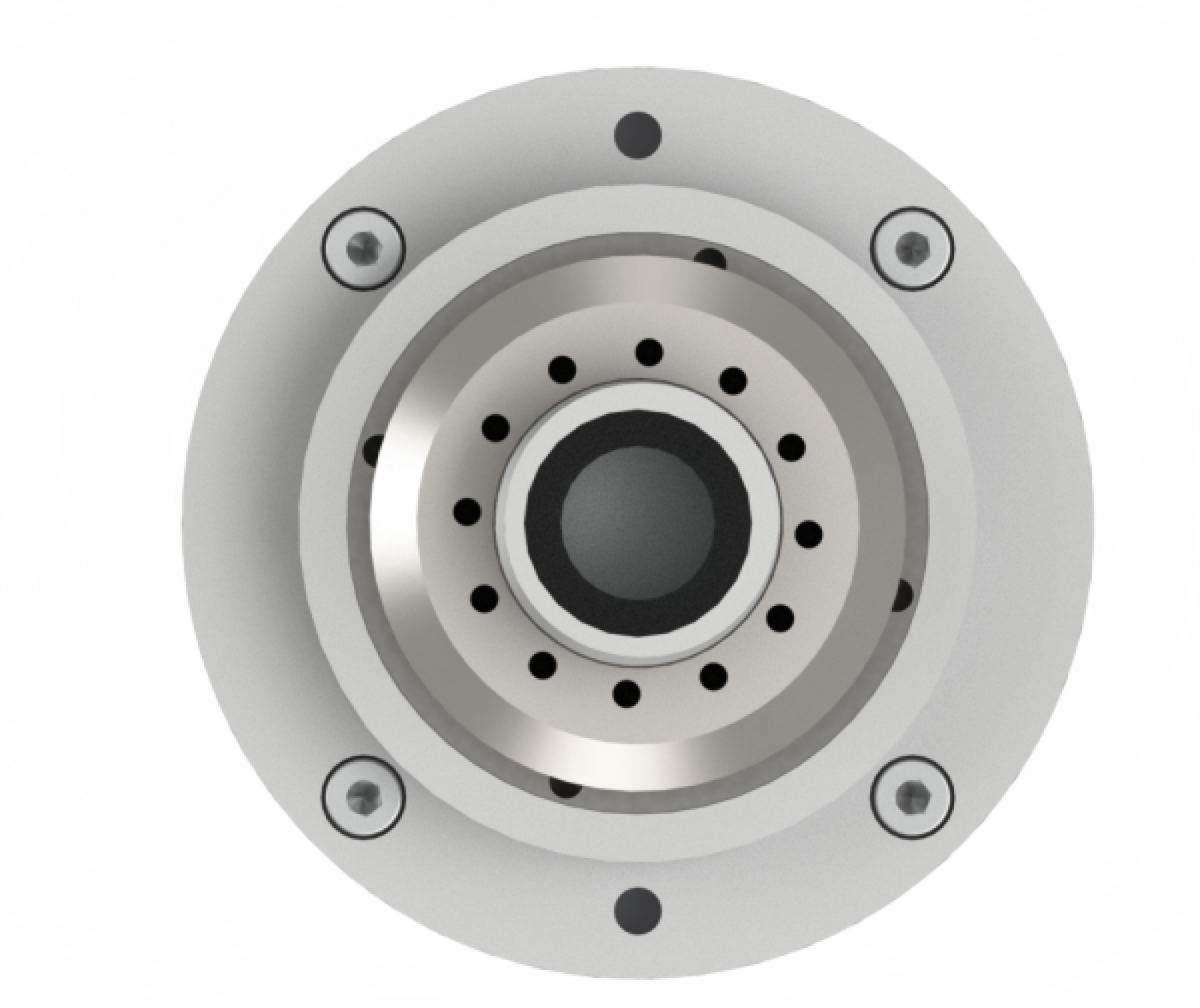

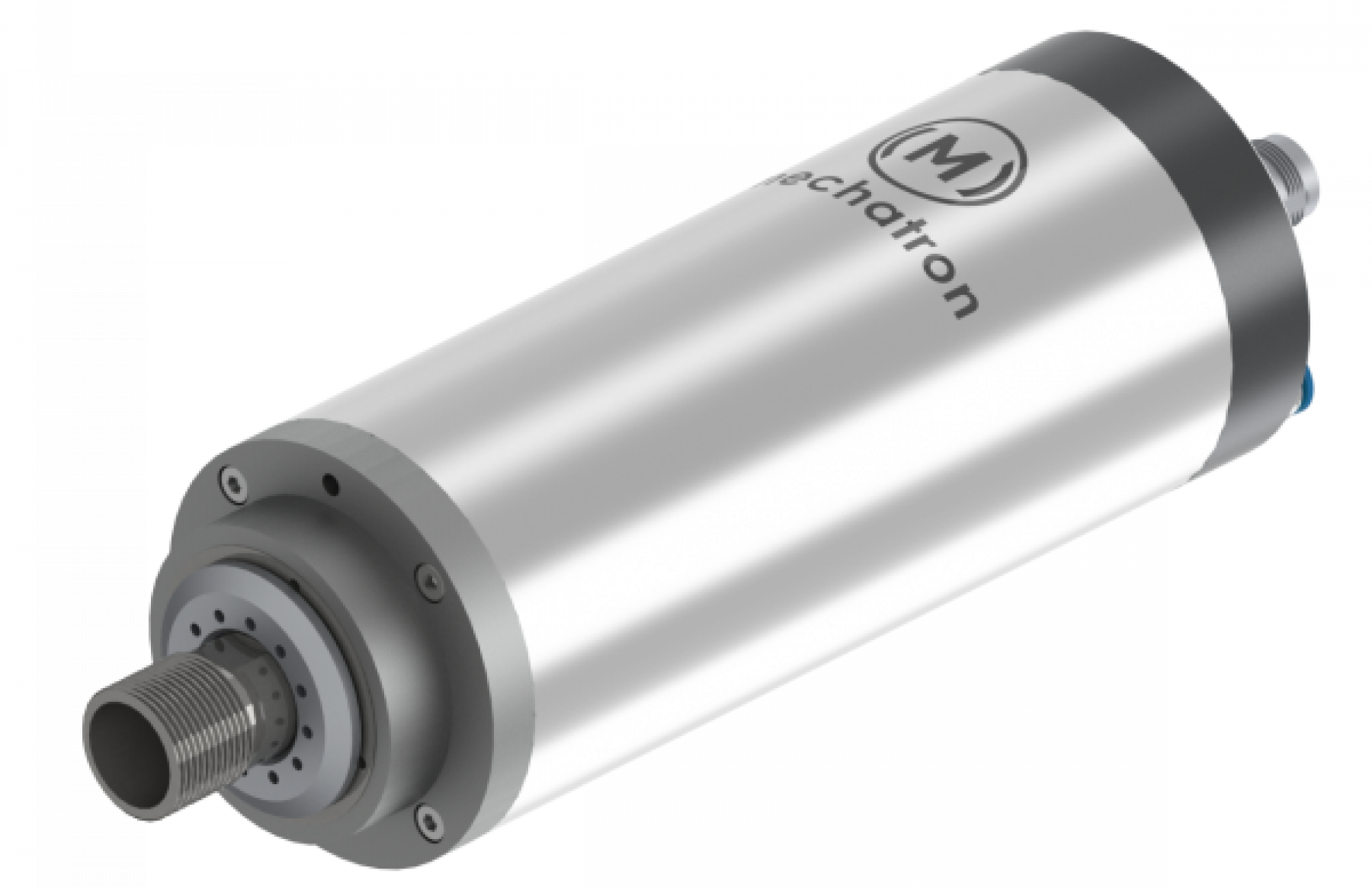

HF-spindle 8022 water cooled 2.2 kW ER20

This motor spindle from the HFS series can be used wherever milling and engraving work is required, e.g. on wood, plastics and aluminum at speeds of up to 24,000 rpm.

Brief overloads are easily possible due to the perfectly coordinated liquid cooling in the entire speed range up to 24,000 rpm. In addition, the running noise is extremely quiet even at high speeds, since there is no speed-dependent fan noise.

With a weight of only 4.8 kg and an ER20 collet holder, tools with a diameter of up to 13 mm can be clamped. The motor spindle has a torque of 0.90 Nm and offers users very good performance even when milling with a higher chip removal rate.

Technical specifications:
Motor type: asynchronous motor
Power: S1 (100%) 2.2 kW | S6 (50%) 2.5 kW
Speed: 24,000 rpm
Torque: 0.98 Nm max
Voltage: 230 V
Current: S1 (100%) 8.0A | S6 (50%) 8.6 A
Frequency: 400 Hz
Corner frequency: 400 Hz
Number of poles: 2
Weight: 4.8 kg
Cooling type: liquid cooling
Max. case temperature: 35 °C
Degree of protection: IP54
Spindle bearings: high-precision bearings maintenance-free according to standard ABEC7/P4S
Runout (cone): < 5.0 µm
Tool change: Manual, clamping nut
Tool interface: ER20
Clamping range: 1 - 13 mm
Case diameter: 80 mm

Required accessories (not included):

• Connector
• Spanner for union nut
• Spanner to counter
• Cone Wiper
