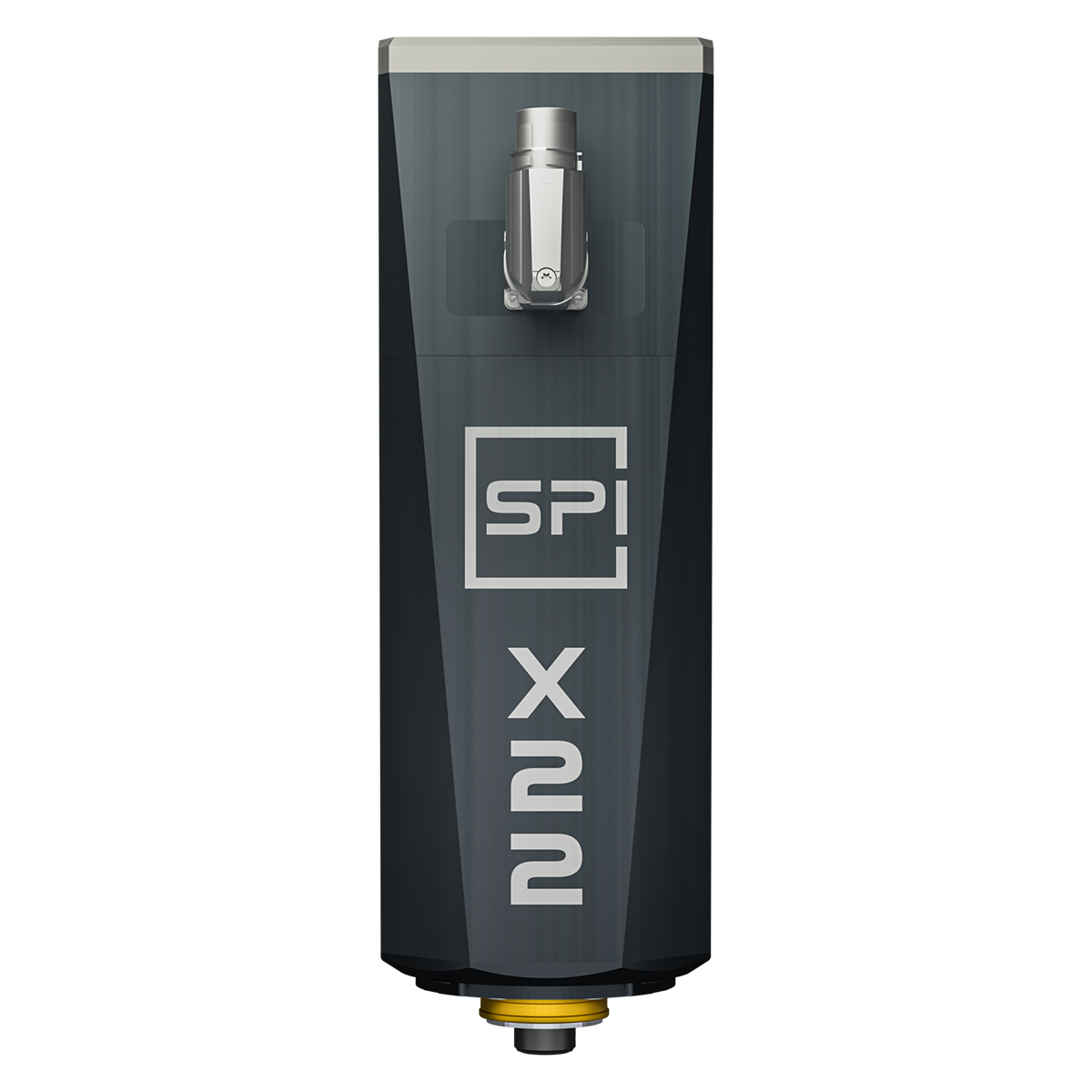

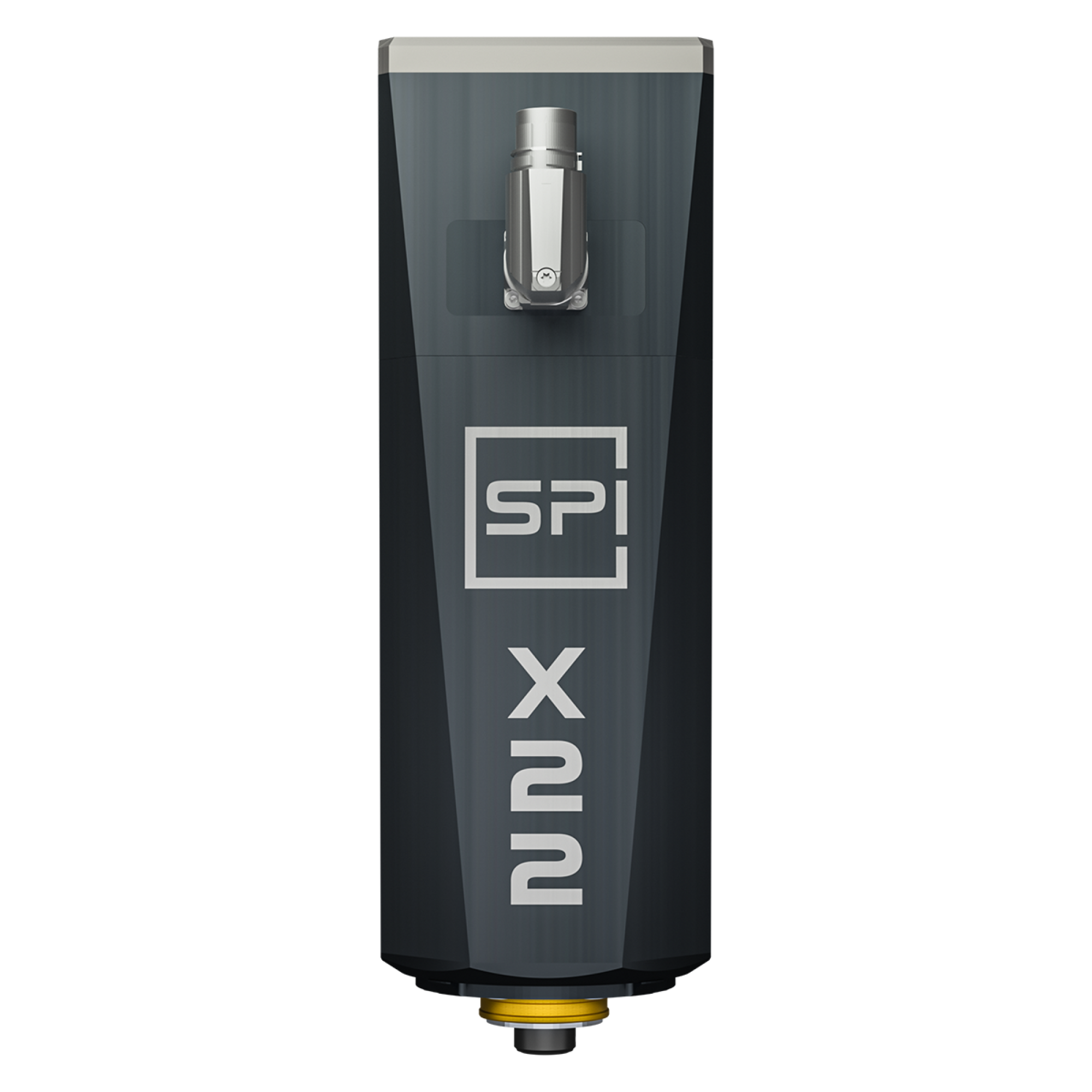

HF QTC spindle Spinogy 2.2 kW 2-pole | ER20 | 30,000 rpm | 230 V
Changing milling tools literally in no time at all, without the expensive and complex technology of a fully automatic machine: This is what the QTC principle offers. QTC stands for
Quick Tool Changing and offers the option of keeping a complete set of
pre-measured standard tools in stock in tool holders and
changing them on the spindle
in seconds.
- No modification of the control hardware!
- No fiddly macro parameters!
- No extra pneumatics!
- QTC in high-end quality from Spinogy!
Description:
- Compact and lightweight spindle solution

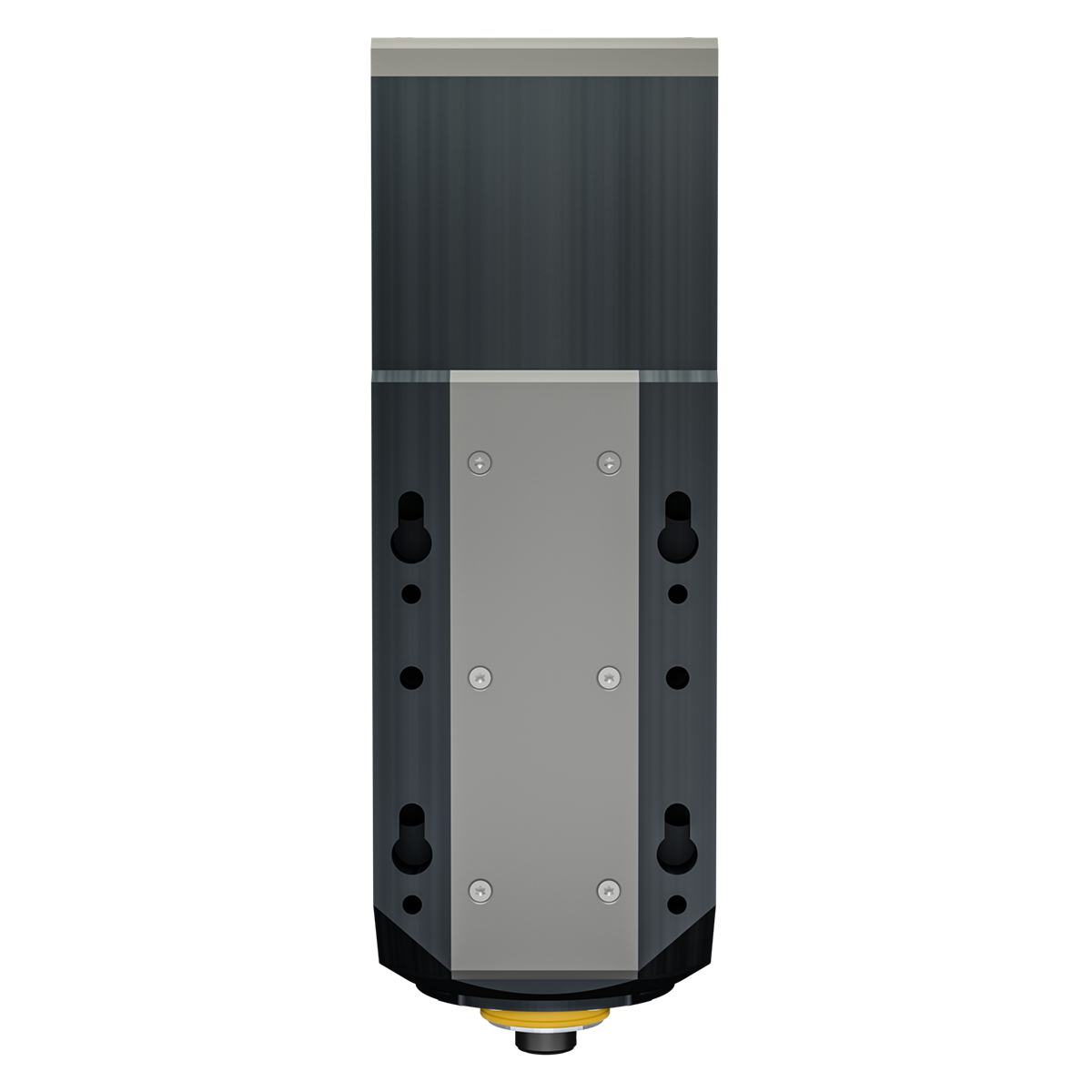

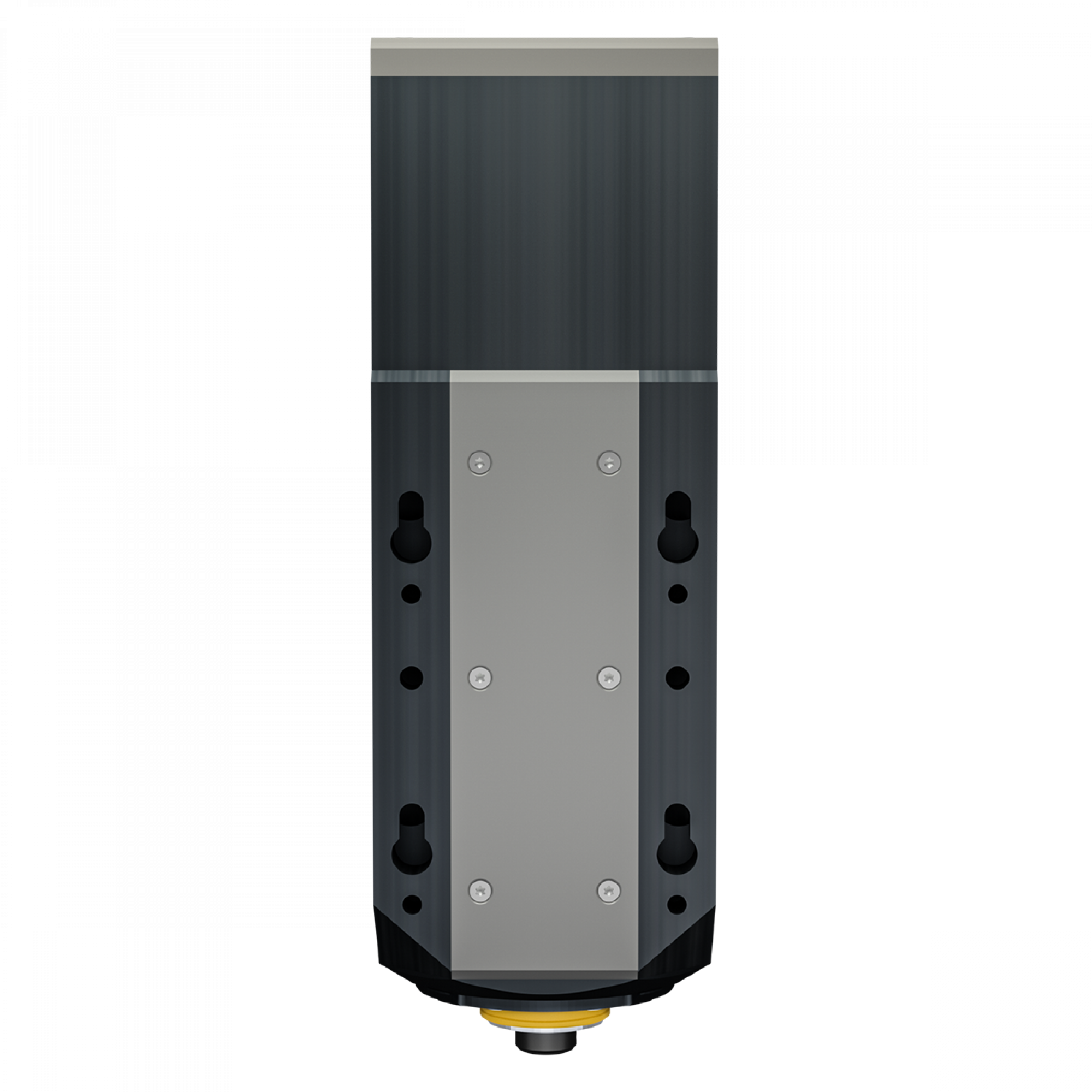

- Spindle holder integrated in the housing
- Innovative 5-stage labyrinth seal
- Saving of sealing air
- Intelligent mounting system
- Made in Germany and highest quality
Technical specifications:
- Motor: 2.2 kW, 230V, 2-pole
- Maximum torque: 0.88Nm
- air cooling
- HSK-C25 tool interface
- Speed: 30,000 rpm
- High precision spindle bearing GMN

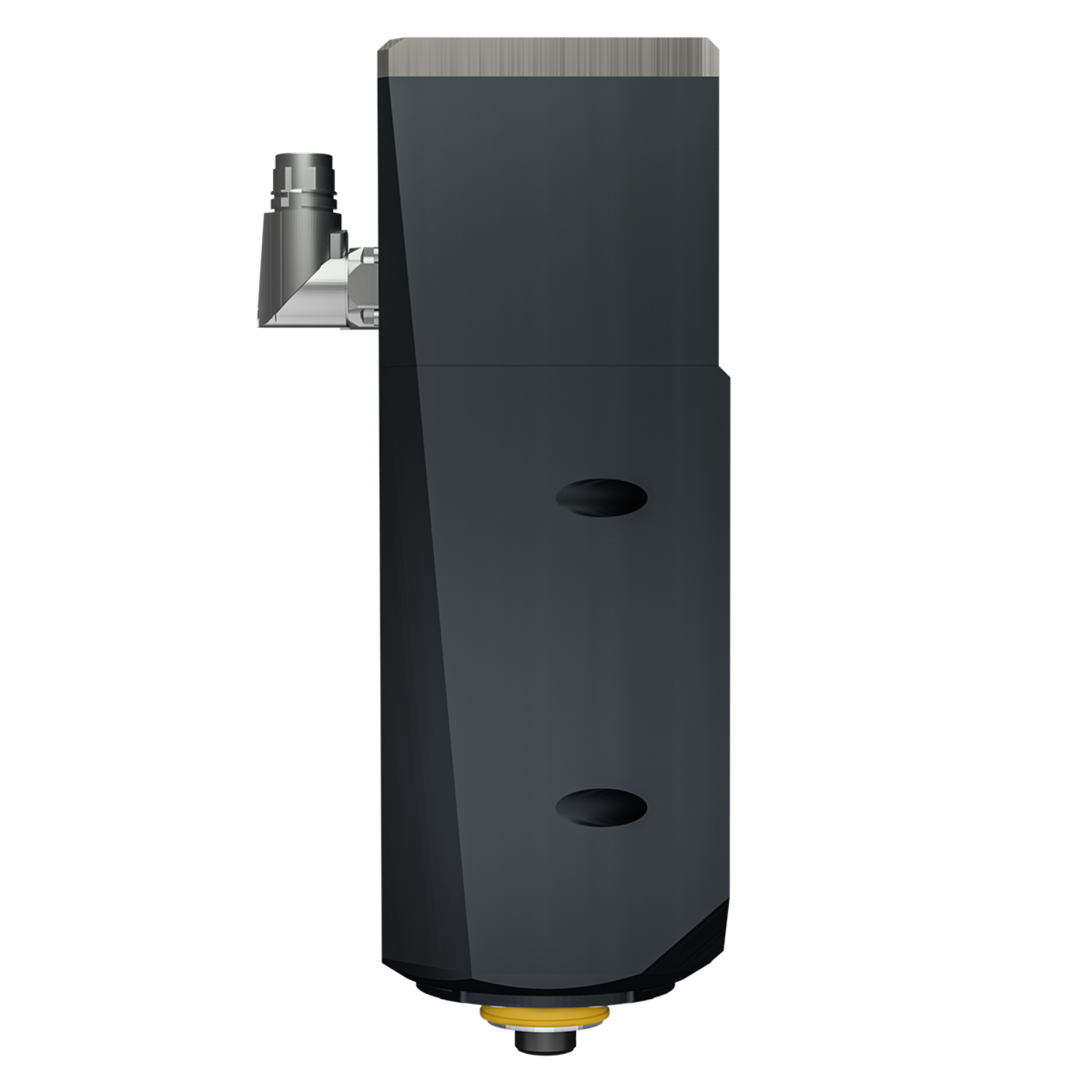

- Motor connector 9-pin straight
- Temperature monitoring winding head
- Powerful 24 V fan
- Weight: Only 4.9 kg
- Protection class: IP30
Accessories included:
- Sliding metal paste for clamping set
- Screw kit (mounting screws & dowel pins)
Required accessories to choose: (see option selection at right)
- Cooling Device
- Motor control line
- Collet holder for ER16 or ER20
Required accessories (not included in delivery):
