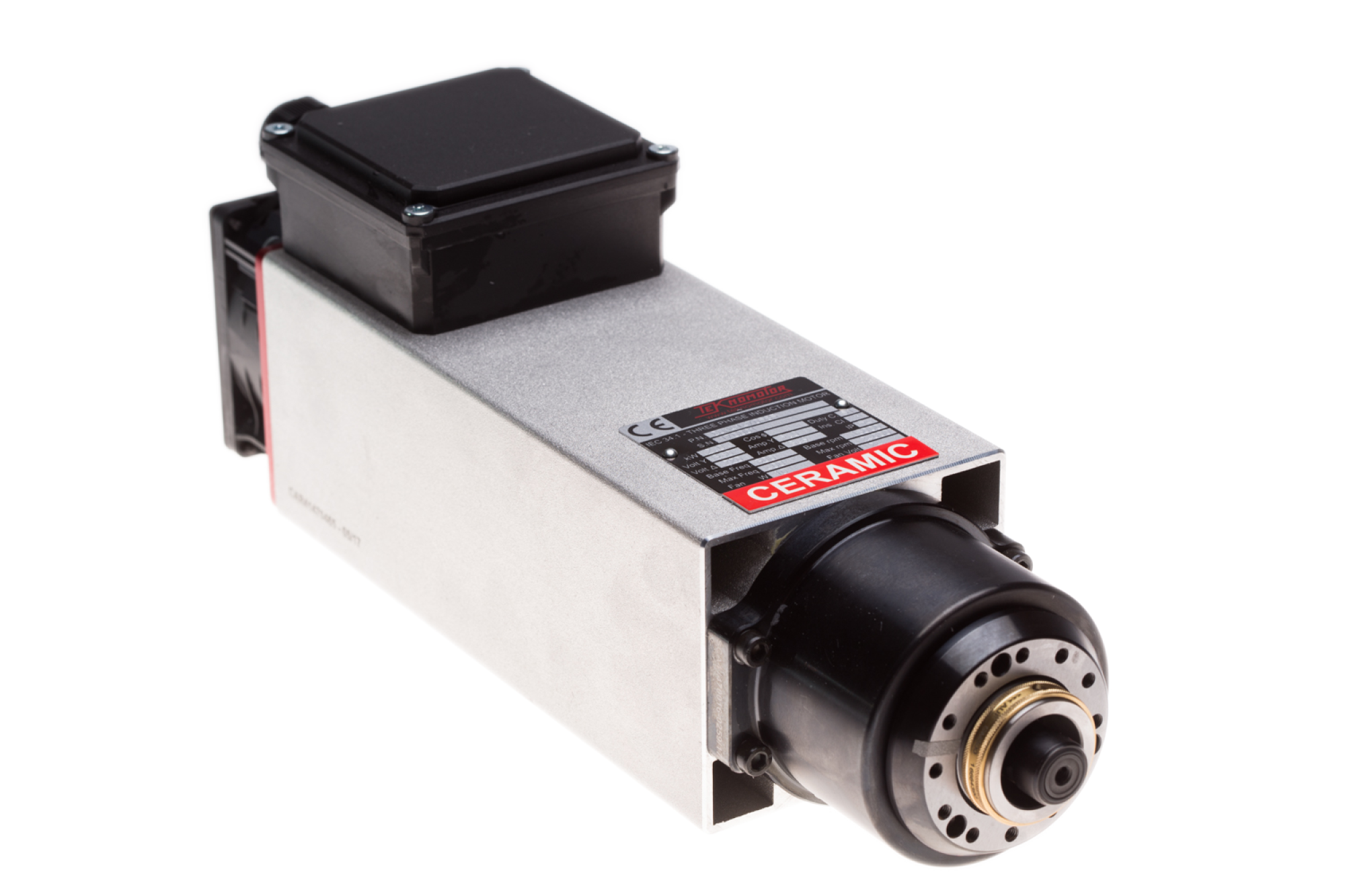

HF-Spindle Teknomotor 2 kW | HSK 32 | 24,000 rpm| 230 V / 400 V | COM41470585

Product No.:: ZSP.TM.DB.4147.HSK.220.E
Shipping time:: immediately available, 2-3 Days (abroad may vary)
Shipping weight:: 8.3 kg per piece

1.899,00 EUR

incl. 19% tax excl. Shipping costs

Description

HF-Spindle Teknomotor 2 kW | HSK32 | 24,000 U/min | 230 V / 400 V | COM41470585

with Quick Tool Changer and electrical fan

With the manual tool changing system from Teknomotor, the milling tool is placed in the spindle by the HSK toolholder. This is a cost-effective and reliable alternative to the fully automatic tool changing system, you do not have to do many tool changes. For many customers, the ATC is too expensive, so this cost-effective QTC spindle system provides best cost-effective alternative. This QTC system does not require any expensive additional components such as pneumatics, software programming or a safety system.

No sensors or safety circuits are required as the operator performs the tool change manually.

We recommend the torque wrench to change the toolholder

Product features:

This mechanical tool changing system requires no compressed air, only one Allen key (size 2.5 mm) for changing the tool holder.
Quick Tool Changer compatible with HSK32C toolholders according to ER16, ER20 and ER25
Suitable for radial and axial loads, heavy duty motor
Double angular ball bearings in spindles
Three-phase induction motor

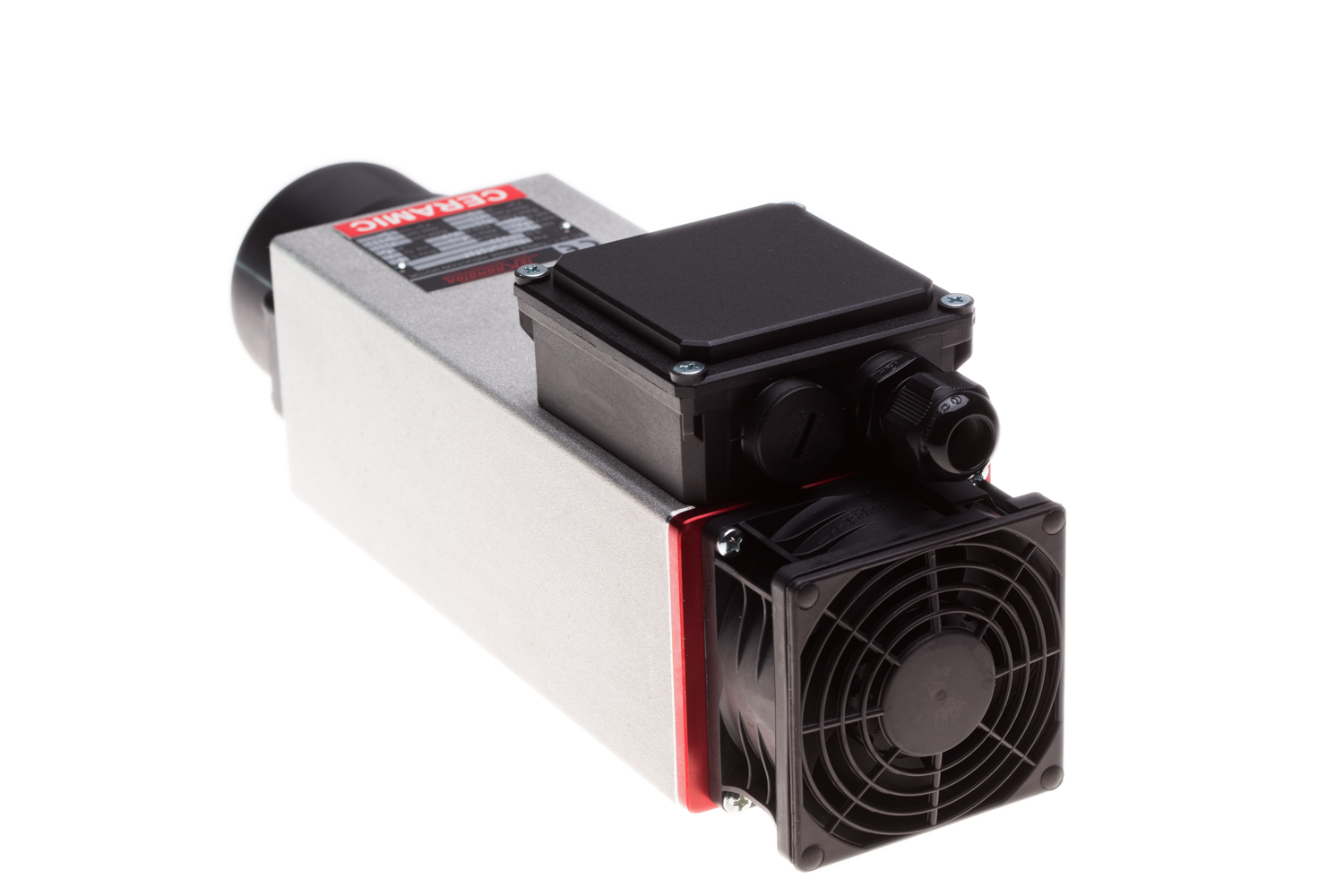

With electric fan
IP 54 compliant

WARNING: If the motor is operated without tools, this will inevitably lead to bearing damage!

Required accessories (not included):

Documentation

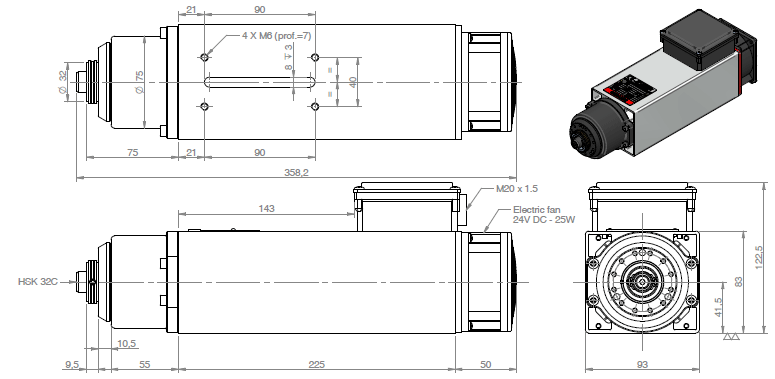

  Technical Drawing

  Torque

  Voltage Frequency

  Teknomotor Catalogue

  Manual (english)

  4147 QTC STEP File

  Manual Connection Teknomotor to Omron MX2 (german)

  Manual Connection Teknomotor to Omron MX2 (english)
