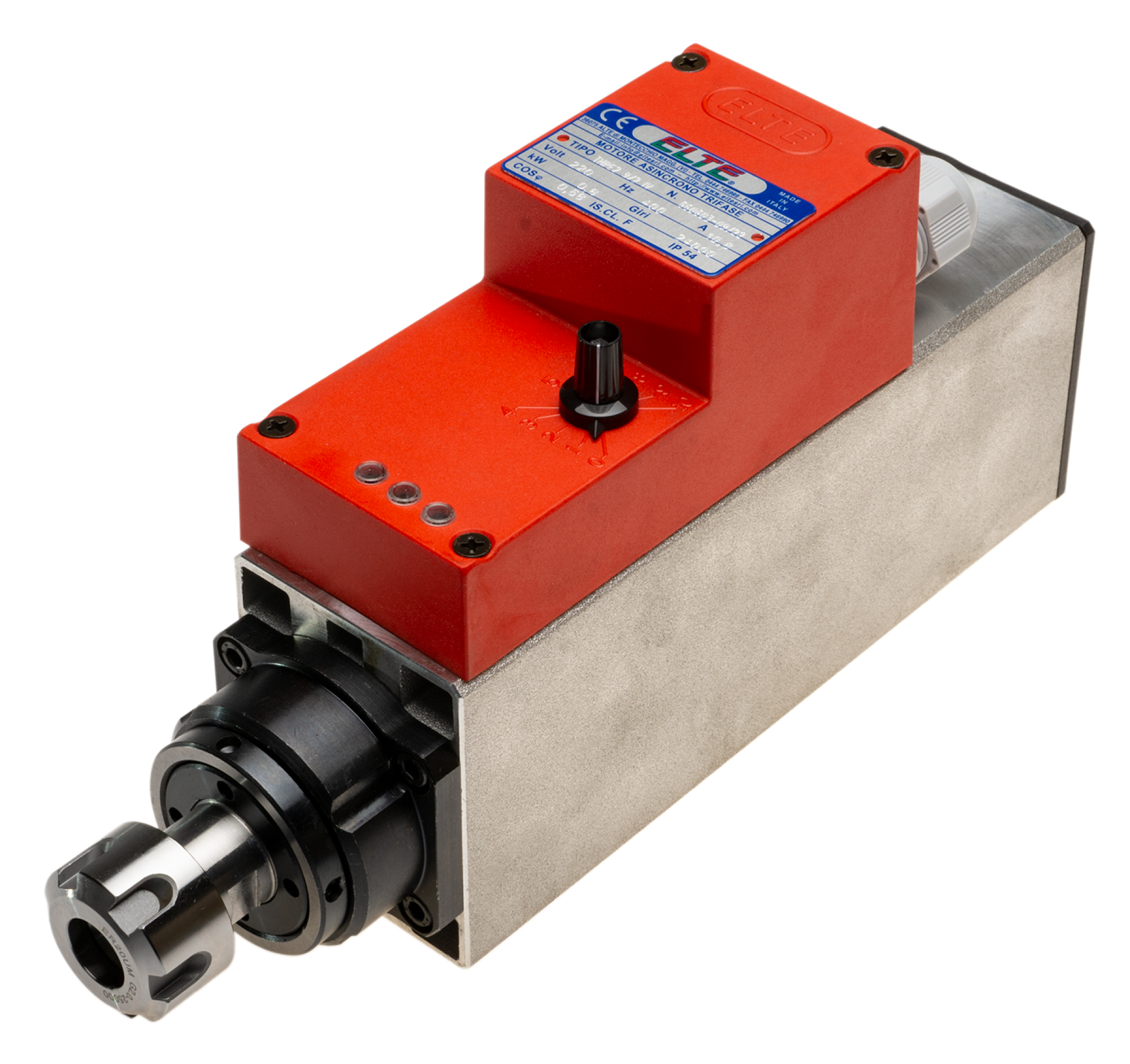

HF-Spindle Elte 1.1 kW | ER 20 | 24.000 rpm | 230 V | incl. Inverter | TMPE2 9/2 RR IV

This 3 Phases-asynchron-motor impresses by its robust technics, which is mainly applied in the wood and plastics processing. The installed inverter allows speed control by a potentiometer. Fast and clean working with low noise development is another advantage of this precision device.

The 1.1 kW milling spindle is ideal for CNC milling machines, plotters or engraving machines.

Technical data:
Performance: 1.1 kW
rpm: 24.000 1/min
Voltage: 230 V
Weight: 4.5 kg
Collet: ER 20
Incl. frequency converter with speed control via poti
Soft start and starting power limitation

Scope of supply:
1 x Spindle
1 x Clamp Nut

Required accessories (not included):

• Hook Key for union nut
• Spanner to counter
• Cone Wiper
