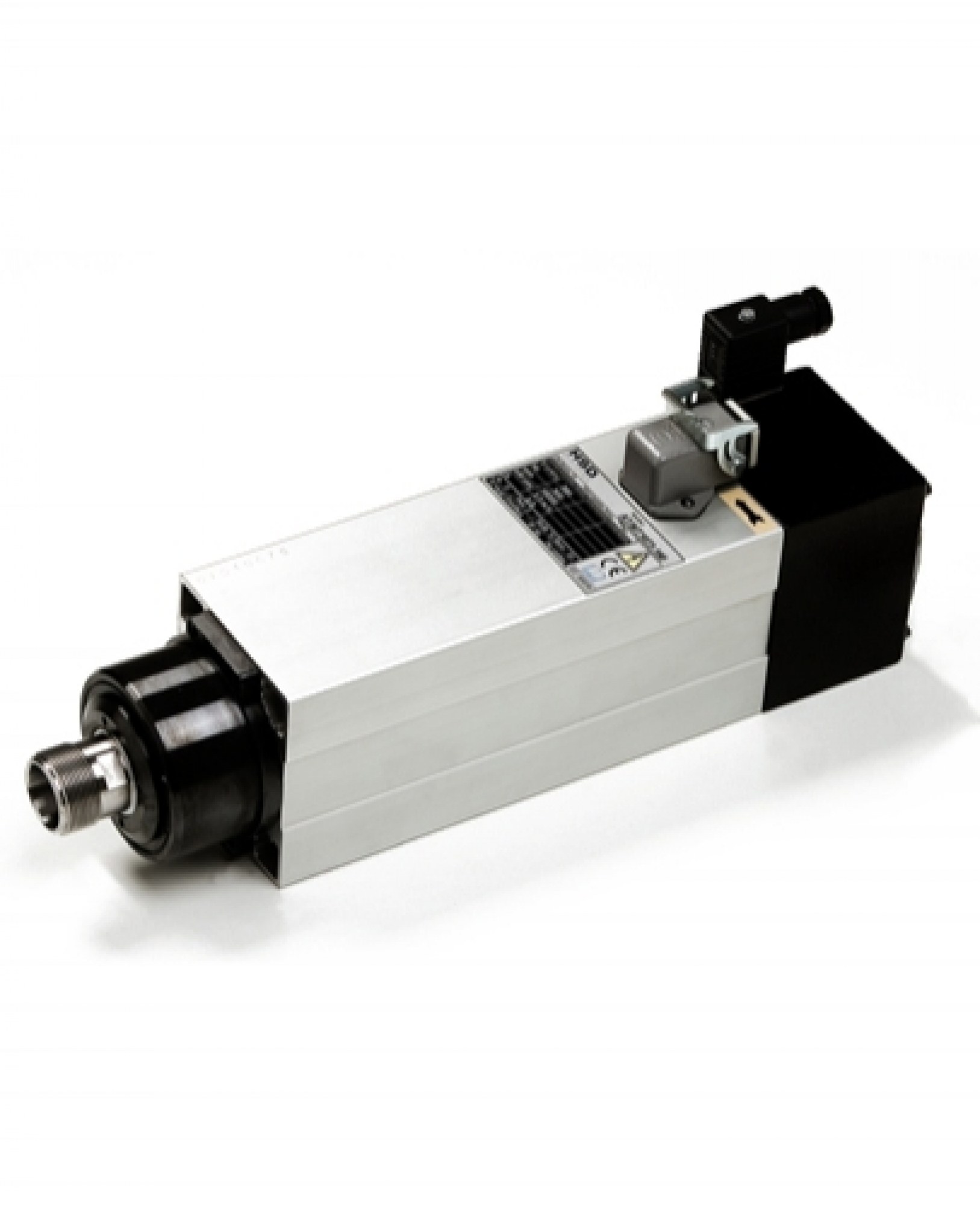

HF-Spindle HSD E-Fan 2.1 kW | ER 25 | 24.000 rpm | 380 V | MT1073-120
Manual tool-change electrospindles are designed for high power density and compactness, making them ideal for wood, plastic and aluminium.
They are realized to suit better at all different conditions of using both for milling, drilling and edgebending.
"Quality without Compromises” system is the rule in HSD organisation and guarantees unquestionable service and the highest reliability.
Technical Data
- electrical fan for noise reduction
- Power S1/S6: 2.1 kW / 2.6 kW
- Connection type: Collet ER25
- Rated voltage: 380 V
- Rated speed: 18.000 rpm
- Max speed: 24.000 rpm
- Rotation: Right
- Weight 8 kg
Required accessories (not included):
Operating Manual (german)Manufacturer: | Authorized representative for the EU: |
