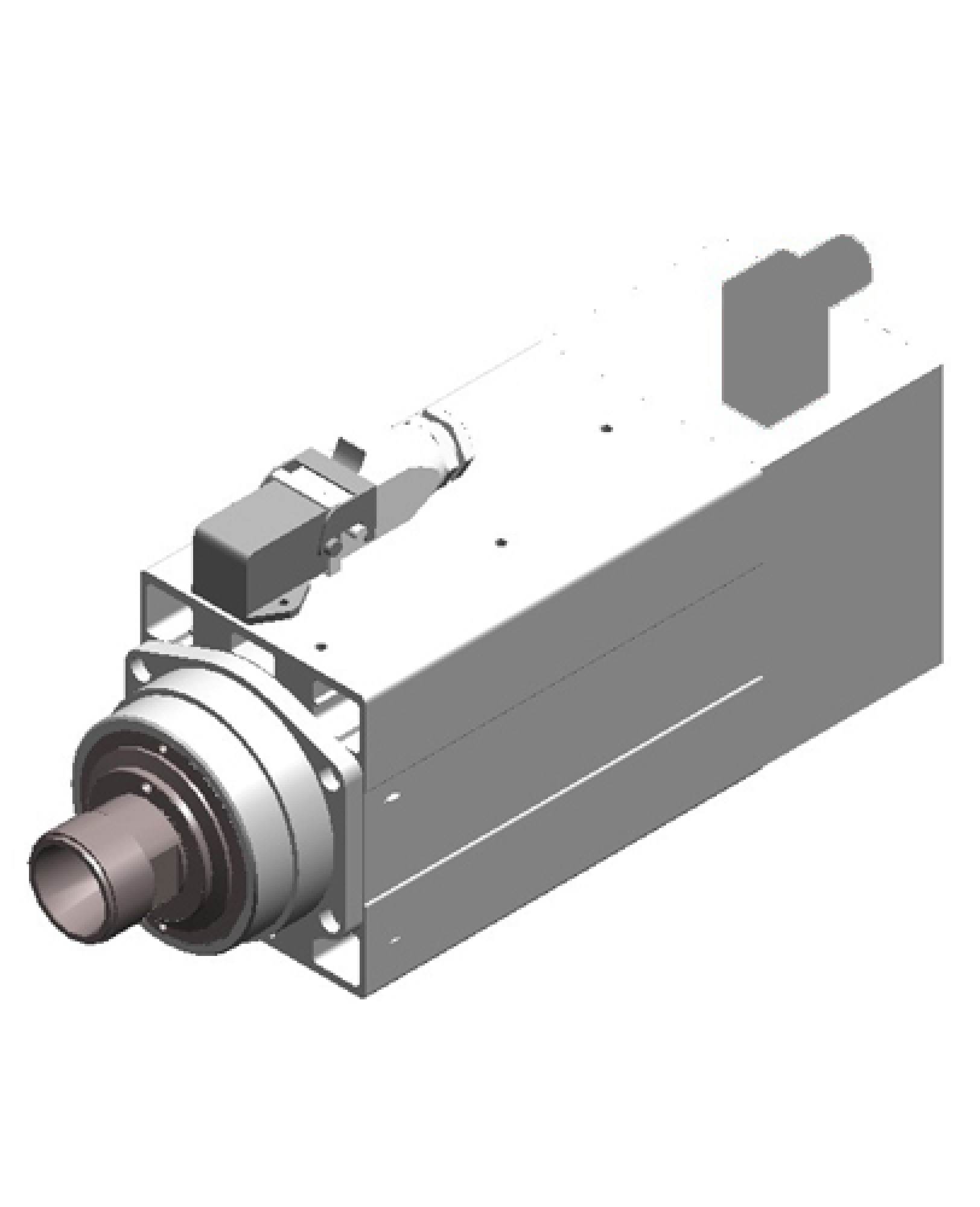

HF-Spindle HSD E-Fan 2.5 kW | ER 32 | 24.000 rpm | 380 V | MT1090-100
HF-Spindle HSD E-Fan 2.5 kW | ER 32 | 24.000 rpm | 380 V | MT1090-100
Manual tool-change electrospindles are designed for high power density and compactness, making them ideal for wood, plastic and aluminium.
They are realized to suit better at all different conditions of using both for milling, drilling and edgebending.
"Quality without Compromises” system is the rule in HSD organisation and guarantees unquestionable service and the highest reliability.
Technical Data
- electrical fan for noise reduction
- Power S1/S6: 2.5 kW / 3.0 kW
- Connection type: Collet ER25
- Rated voltage: 380 V
- Rated speed: 18.000 rpm
- Max speed: 24.000 rpm
- Rotation: Right
- Weight 10 kg
Required accessories (not included):
