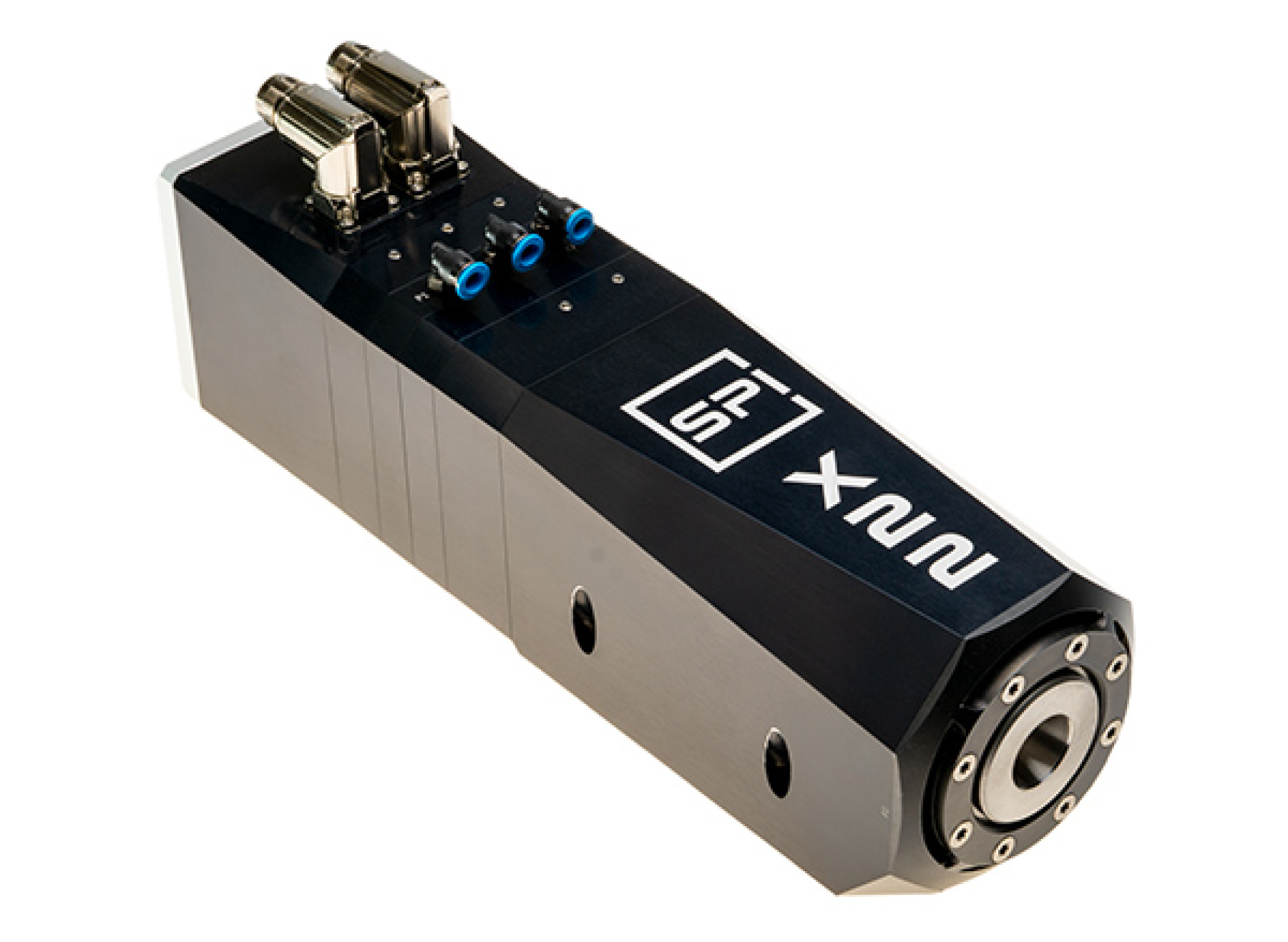

HF tool change spindle Spinogy 2.2 kW | SK20 | 30,000 rpm | 230 V

• Compact and lightweight spindle solution

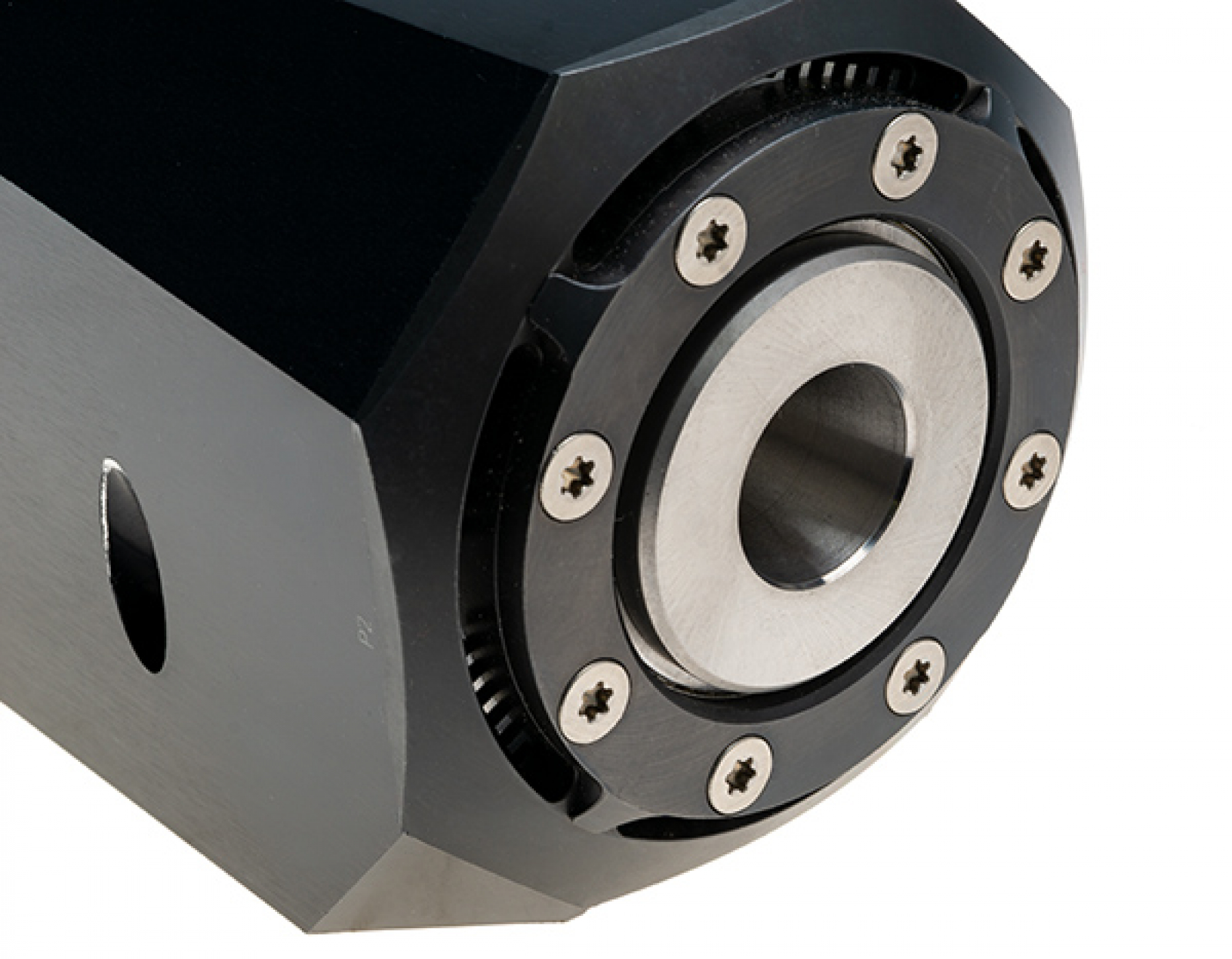

• Proven SK20 tool interface

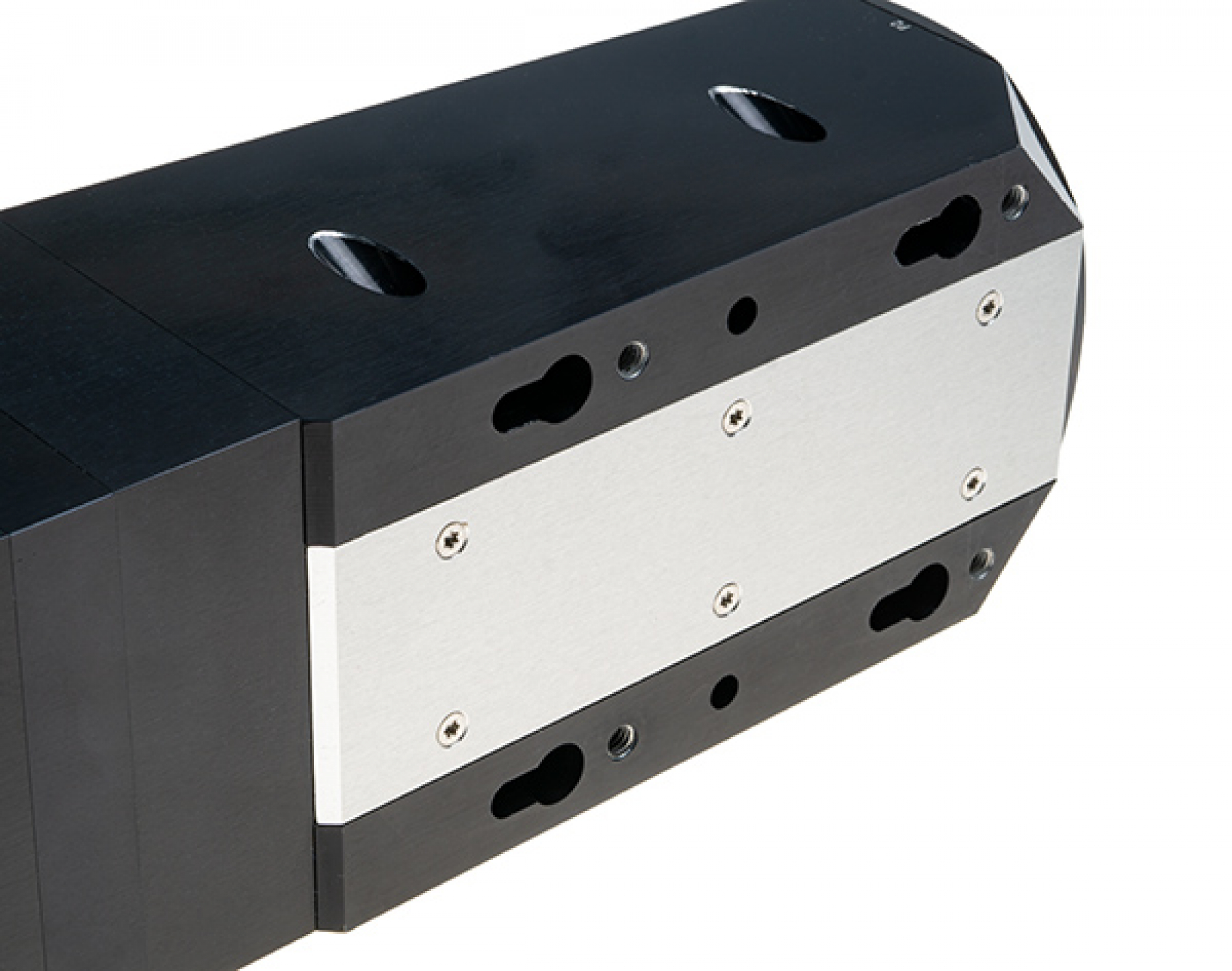

• Spindle holder integrated in the housing
• Innovative 5-stage labyrinth seal
• Saving of sealing air
• Intelligent assembly system
• Made in Germany and the highest quality

• Motor: 2.2 kW, 230 V, 2-pole
• Maximum torque: 0.88 Nm
• Air cooling
• Tool interface SK20
• Speed: 30,000 rpm
• High precision spindle bearing GMN

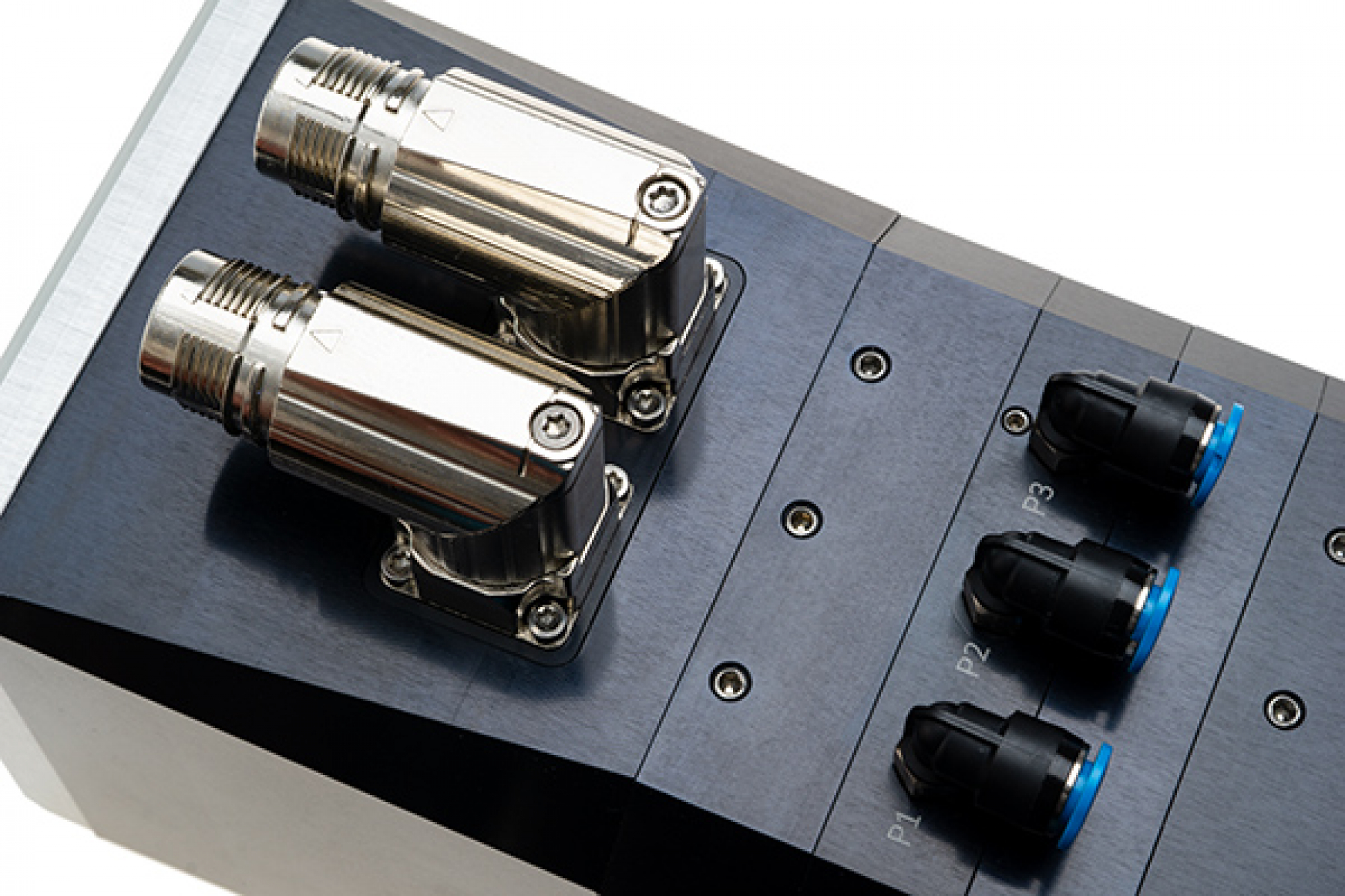

• Motor connector 9-pin angled
• Sensor connector 17-pin angled
• Temperature monitoring of winding head
• Inductive speed monitoring
• Precise clamping position monitoring
• Inductive piston position monitoring

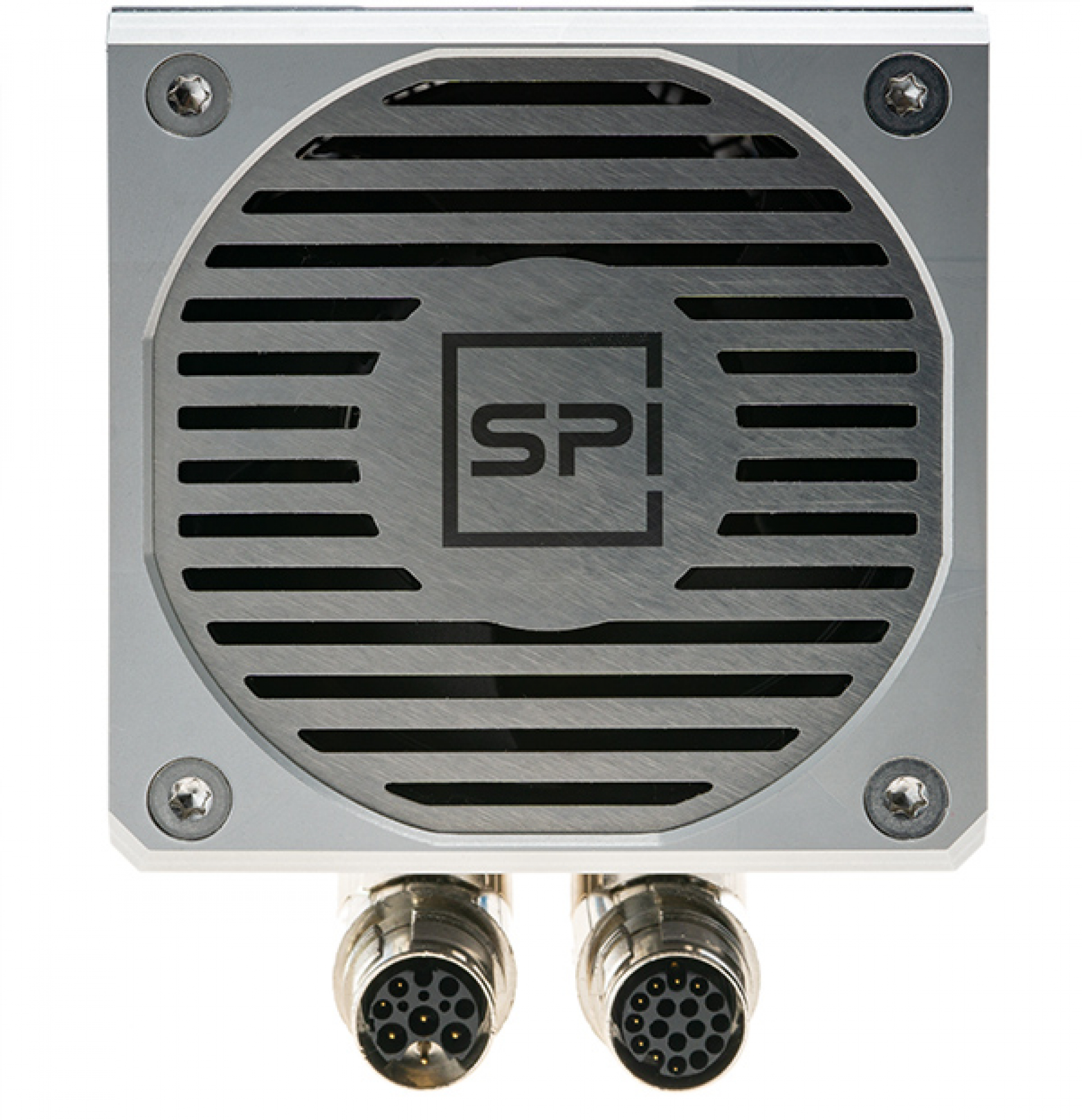

• Powerful 24 V fan
• Weight: only 5.8 kg
• Protection class: IP30

• Gliding metal paste for clamping set
• Screw kit (fastening screws & dowel pins)

• Motor control line (see option selection at right)
• Sensor line (see option selection at right)

• Frequency converter 2.2 kW / 230 V
• Cone wiper
