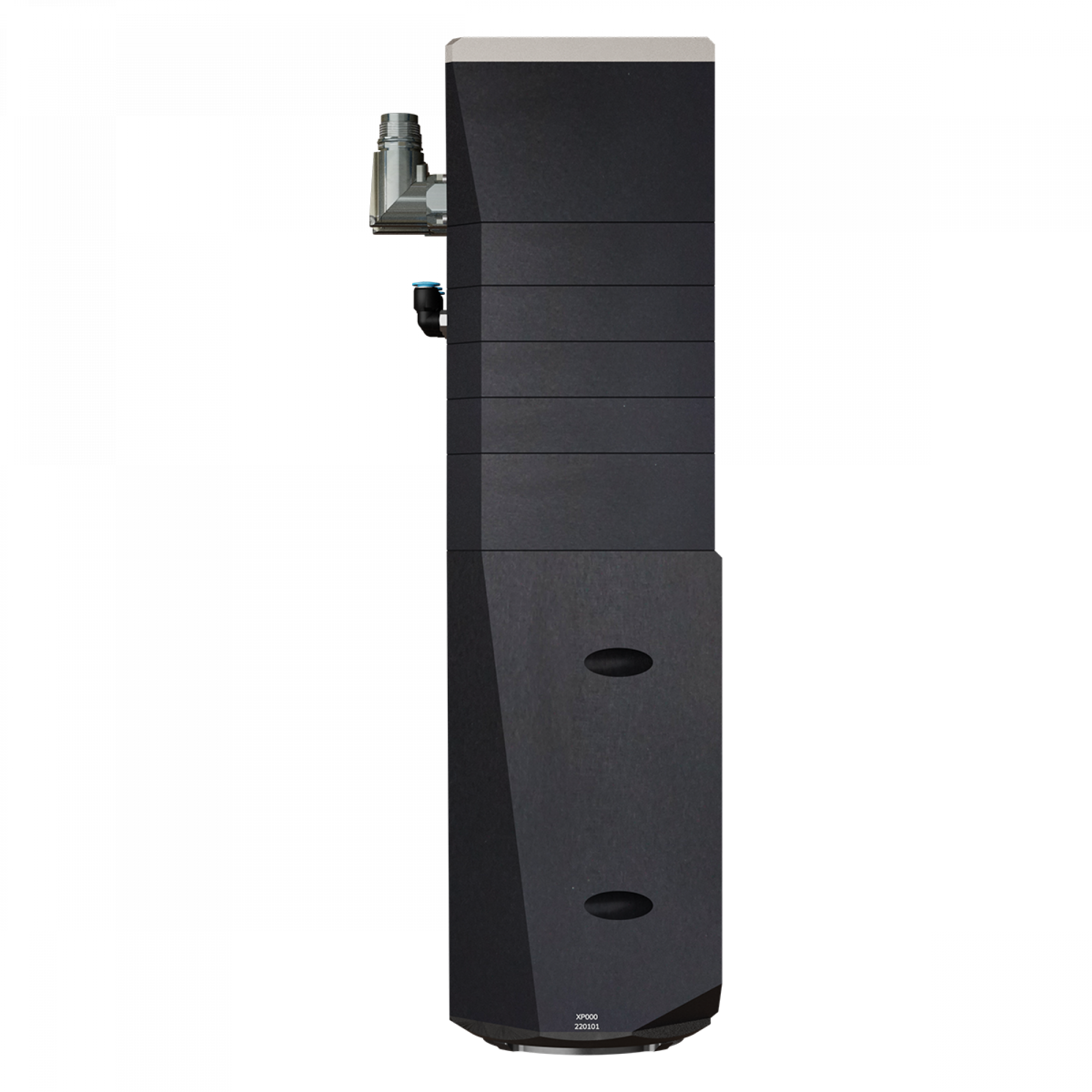

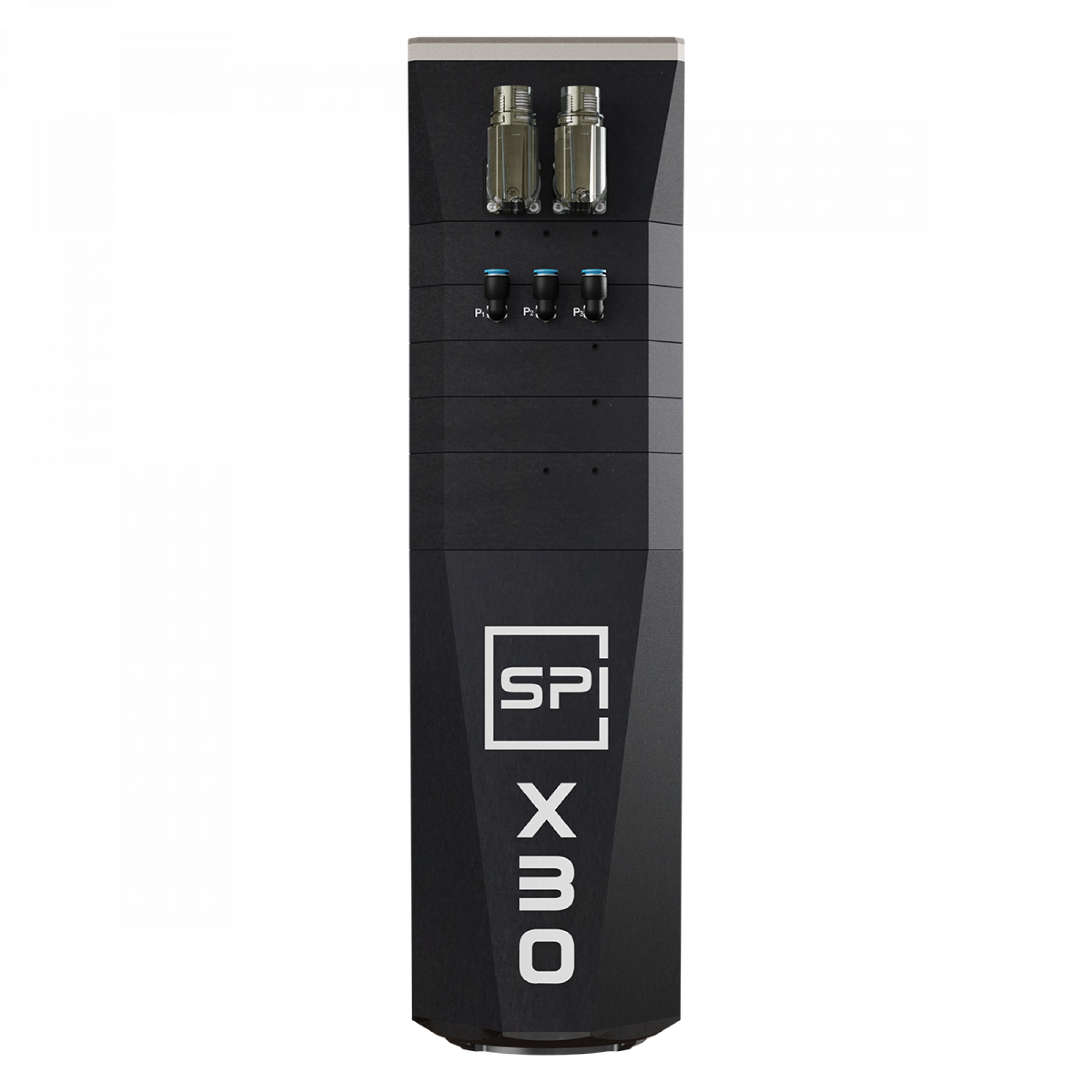

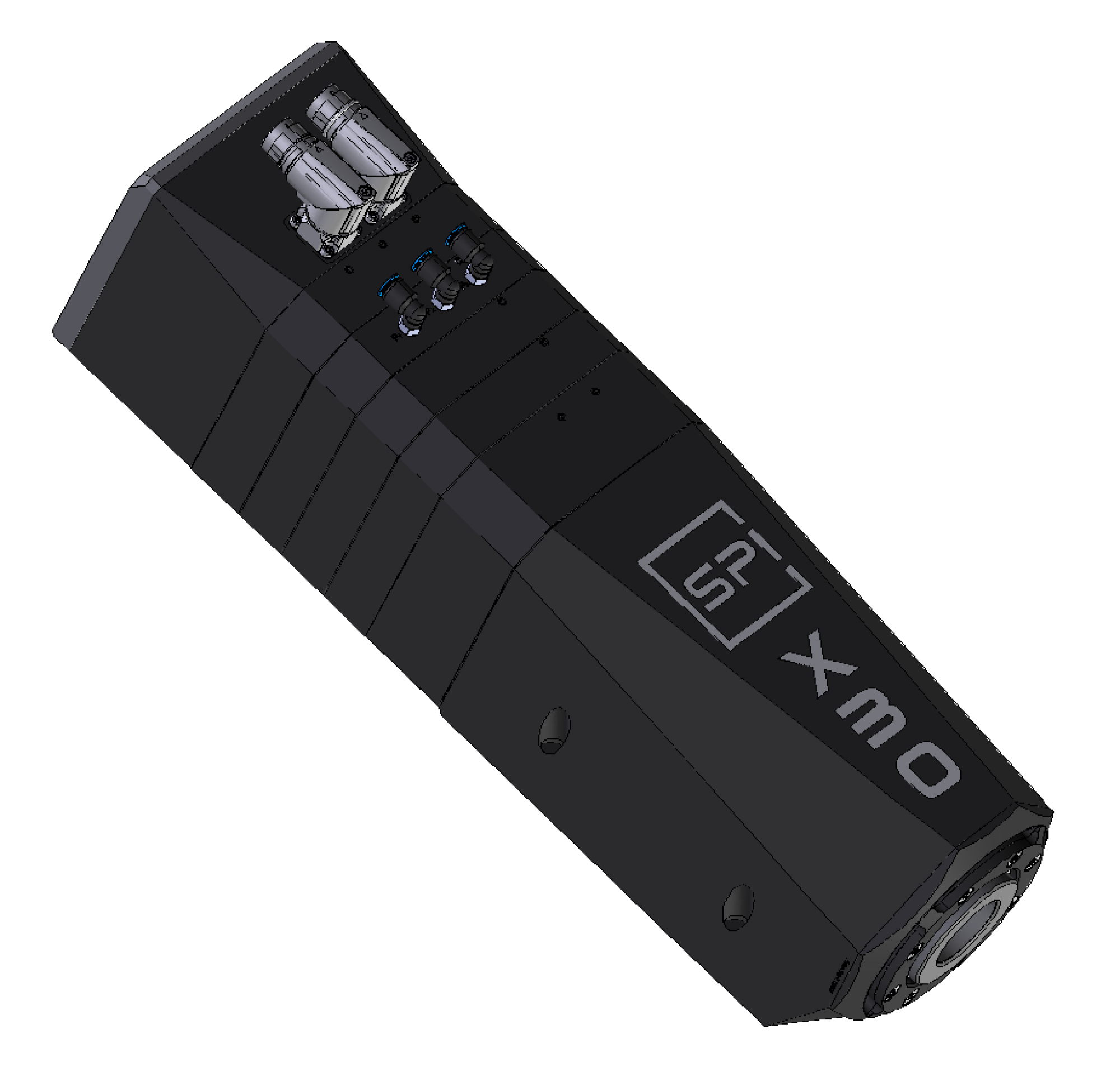

HF tool change spindle Spinogy 4 kW 4-pole | SK30 | 25,000 rpm | 400 V

• Compact and lightweight spindle solution
• SK30 tool interface with face contact
• Spindle holder integrated in the housing
• Innovative 5-stage labyrinth seal
• Saving of sealing air
• Intelligent mounting system
• Made in Germany and highest quality

• Motor: 4.0 kW, 400 V, 4-pole
• Maximum torque: 3.2 Nm
• Air cooling
• Tool interface SK30
• Speed: 25,000 rpm
• High-precision spindle bearing GMN
• Straight 9-pin motor connector
• Sensor connector 17-pin straight
• Temperature monitoring winding head
• Inductive speed monitoring
• Precise clamping position monitoring
• Inductive piston position monitoring
• Powerful 24 V fan
• Weight: Only 12.9 kg
• Protection class: IP54

• 3 year guarantee included
• Sliding metal paste for clamping set
• Mounting Screws & Dowel Pins

• Motor control line (see option selection at right)
• Sensor cable (see option selection on the right)

• Frequency converter 2.2 kW / 400 V
• cone wiper SK30
