Holder for cablebound Handwheel

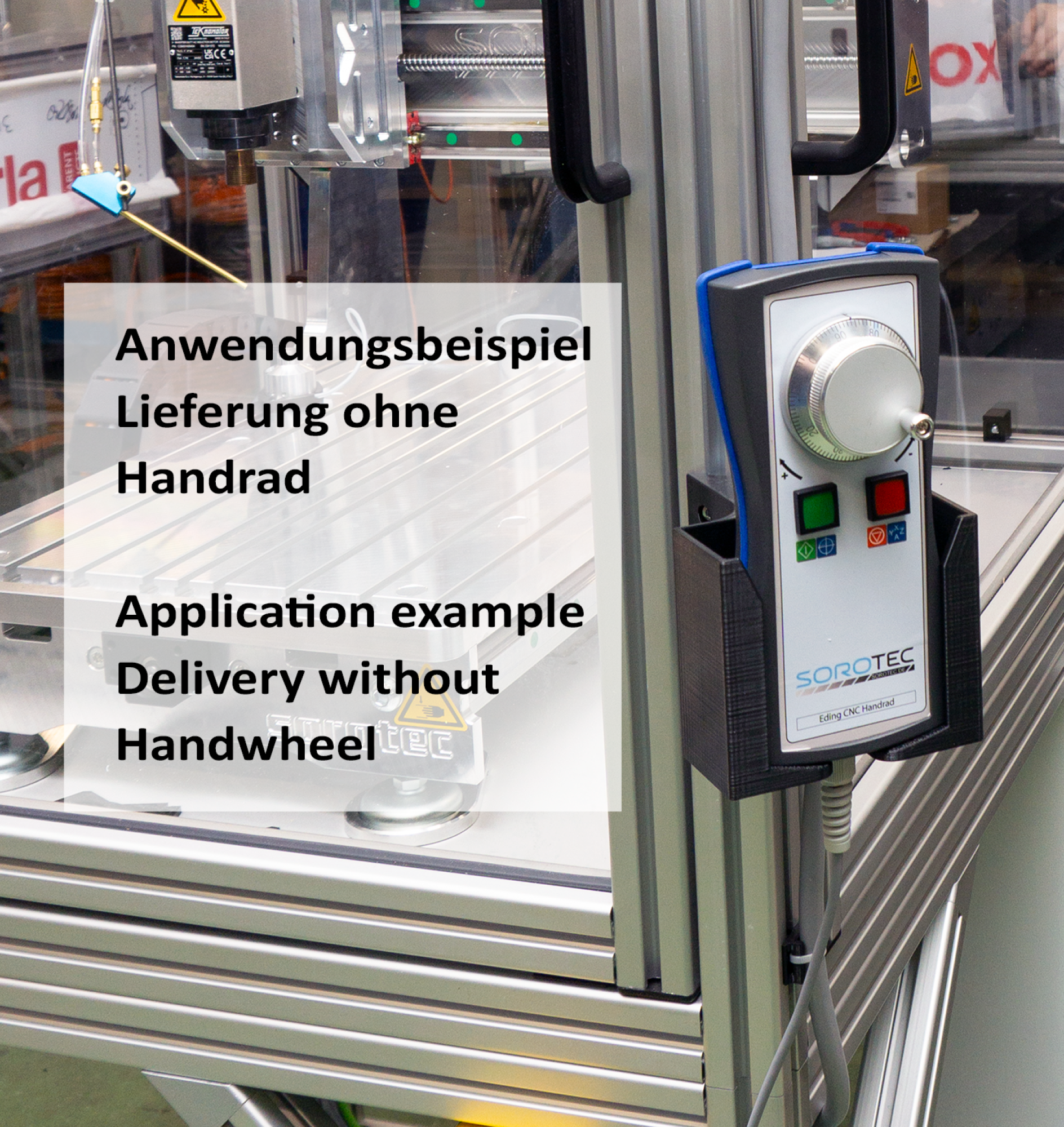

45° corner mounting (flat mounting in preparation)

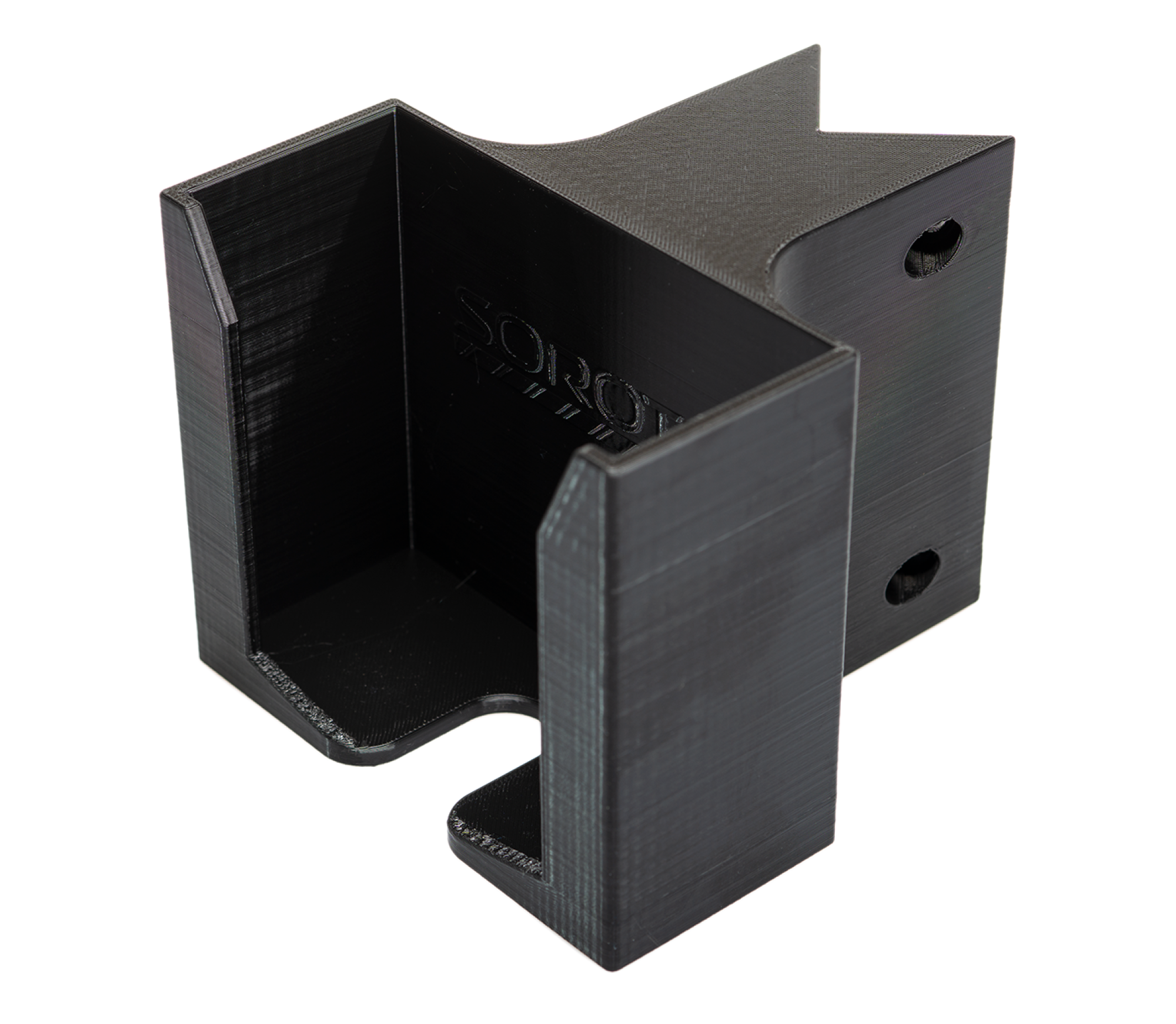

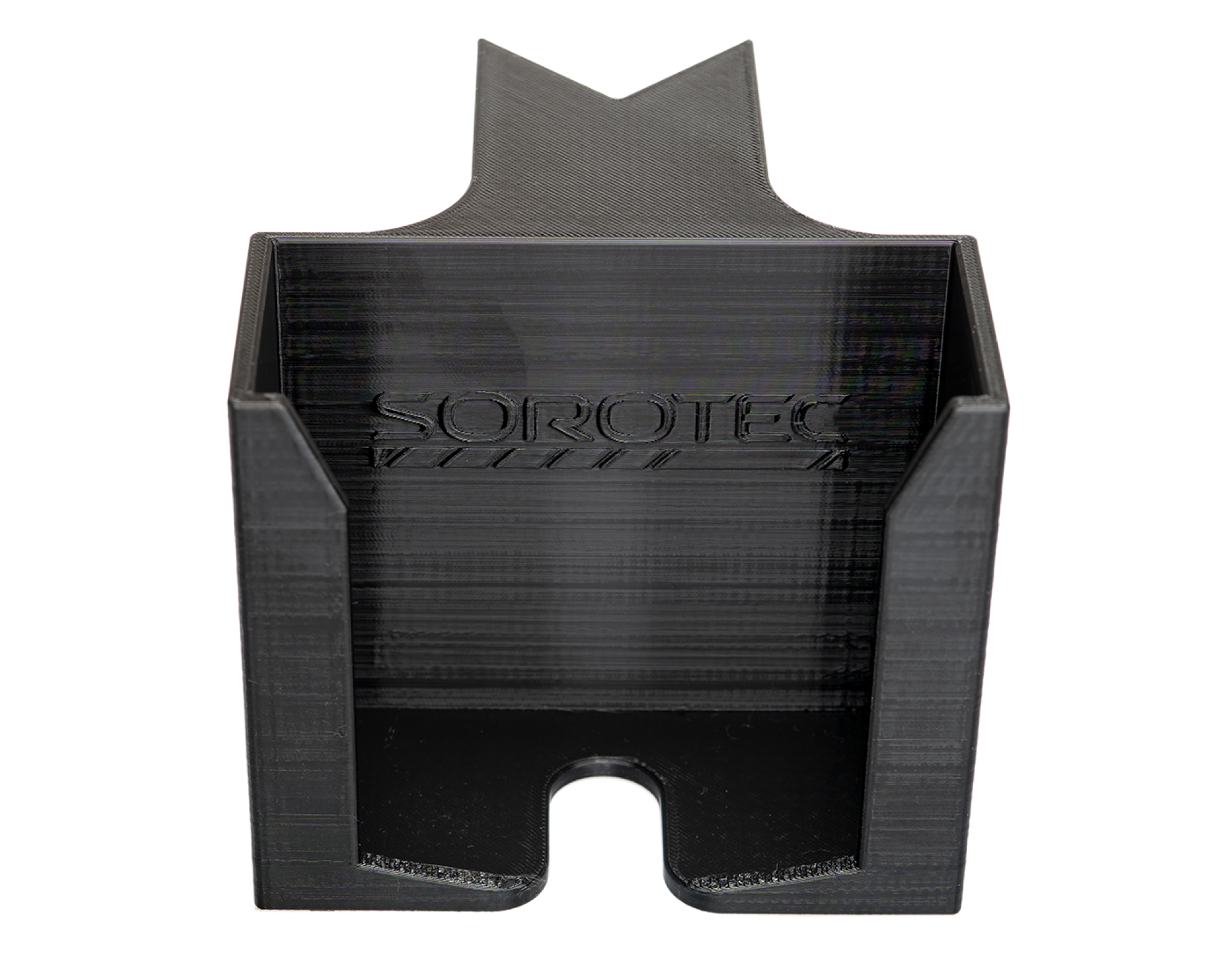

The handwheel holder from SOROTEC offers space for all common CNC remote controls with cable connection*. When producing 3D printing from PETG, no filament is used, the design is robust and durable.

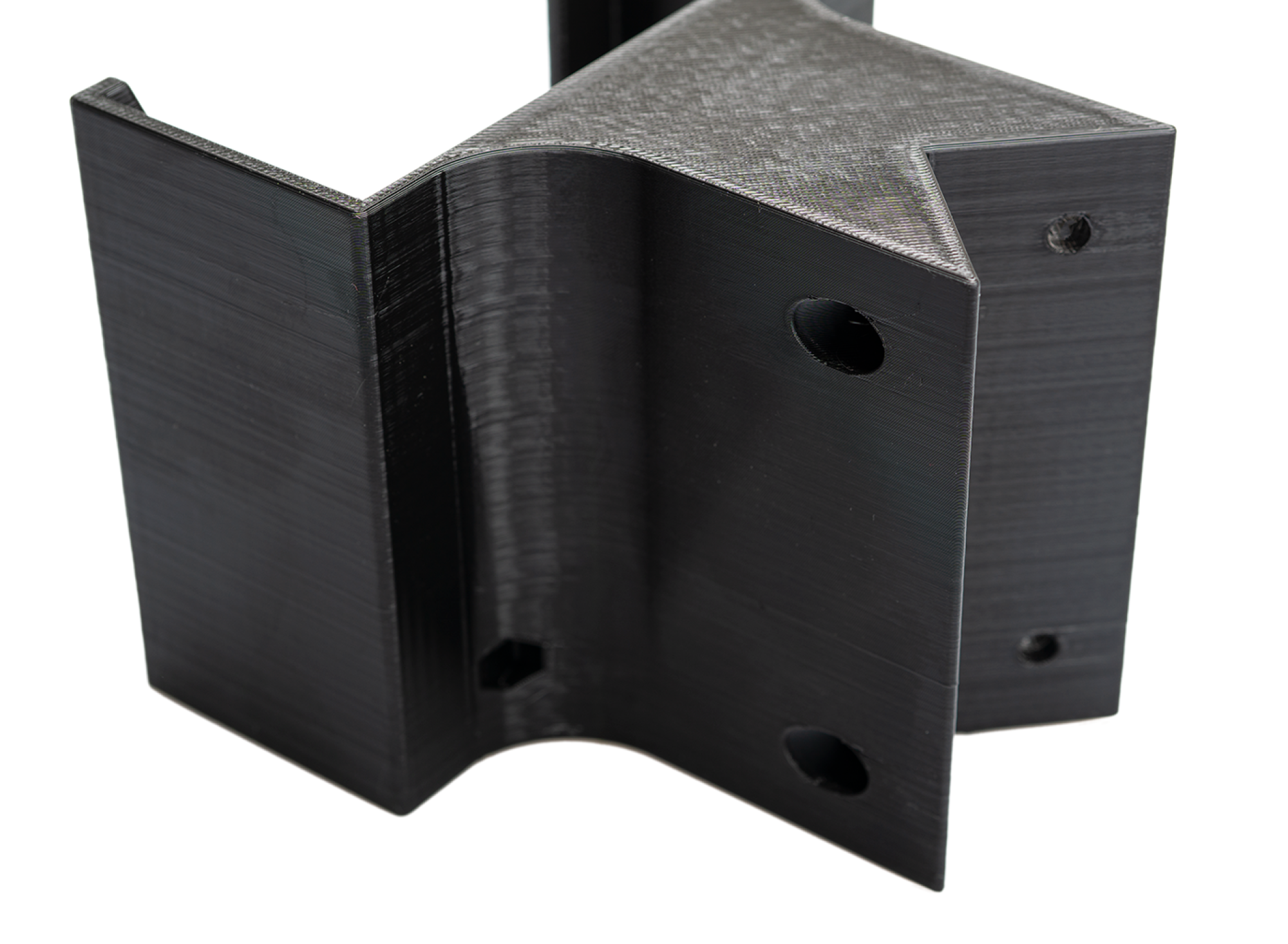

The hole spacing is suitable for mounting with four M5 Allen screws and slot nuts on a construction profile 8 40 x 40, as is often used for enclosures. Of course, mounting on other materials such as wood is also possible.

*Here is the version for wireless handwheels.
Another version for flat wall mounting is in preparation.

Technical data
Dimensions (W x H x D): 117 x 100 x 122 mm
Width inside: 110 mm
Depth inside: 45 mm
Leg length of mounting bracket: 33 mm
Weight: 380 g
Material: PETG (printed)
