Product No.:
EIS.TDI.PNPO.2.D65
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
0.03 kg per piece
35,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

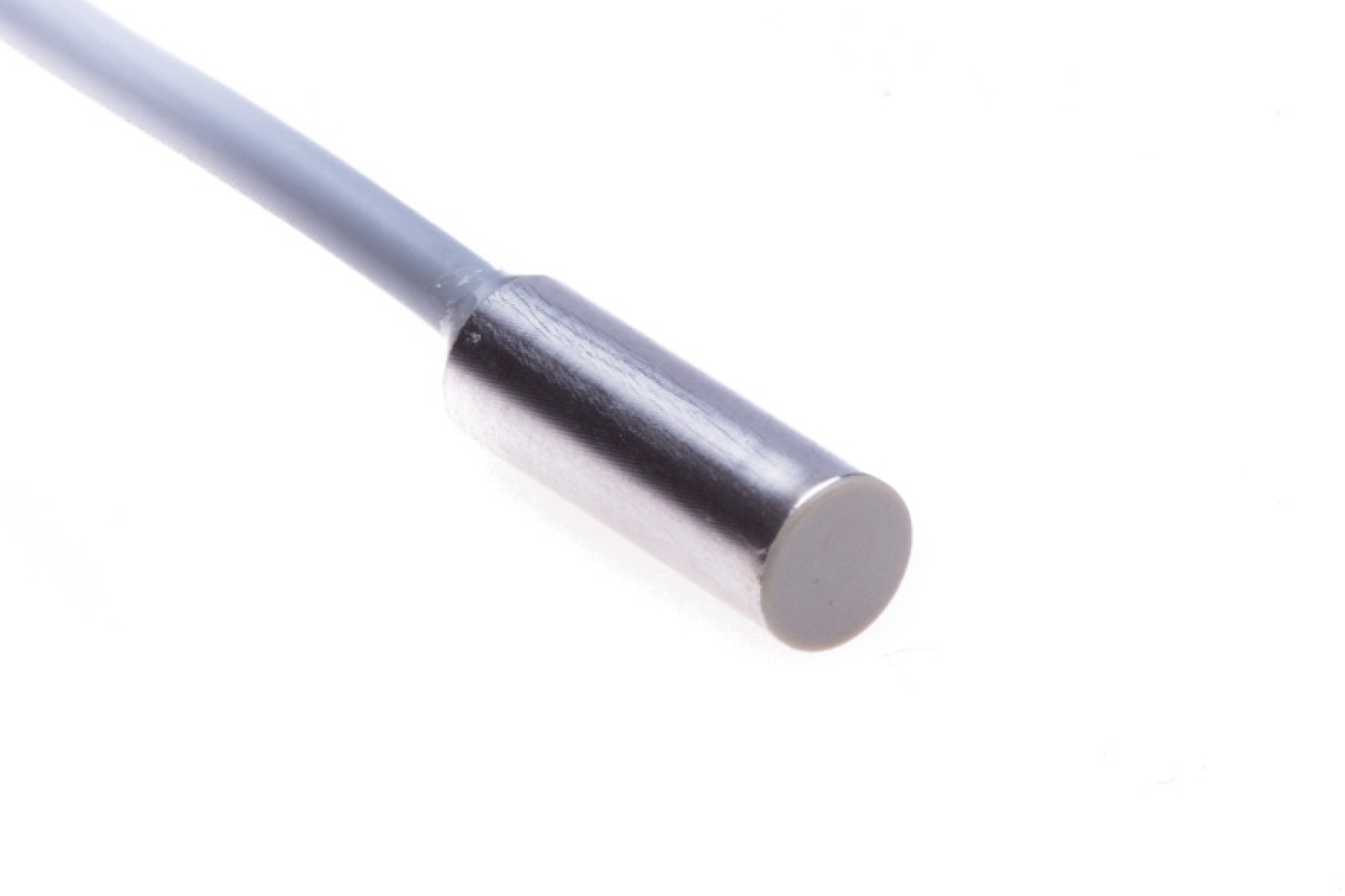

Inductive switch

Technical Data:
  • PNP normally closed

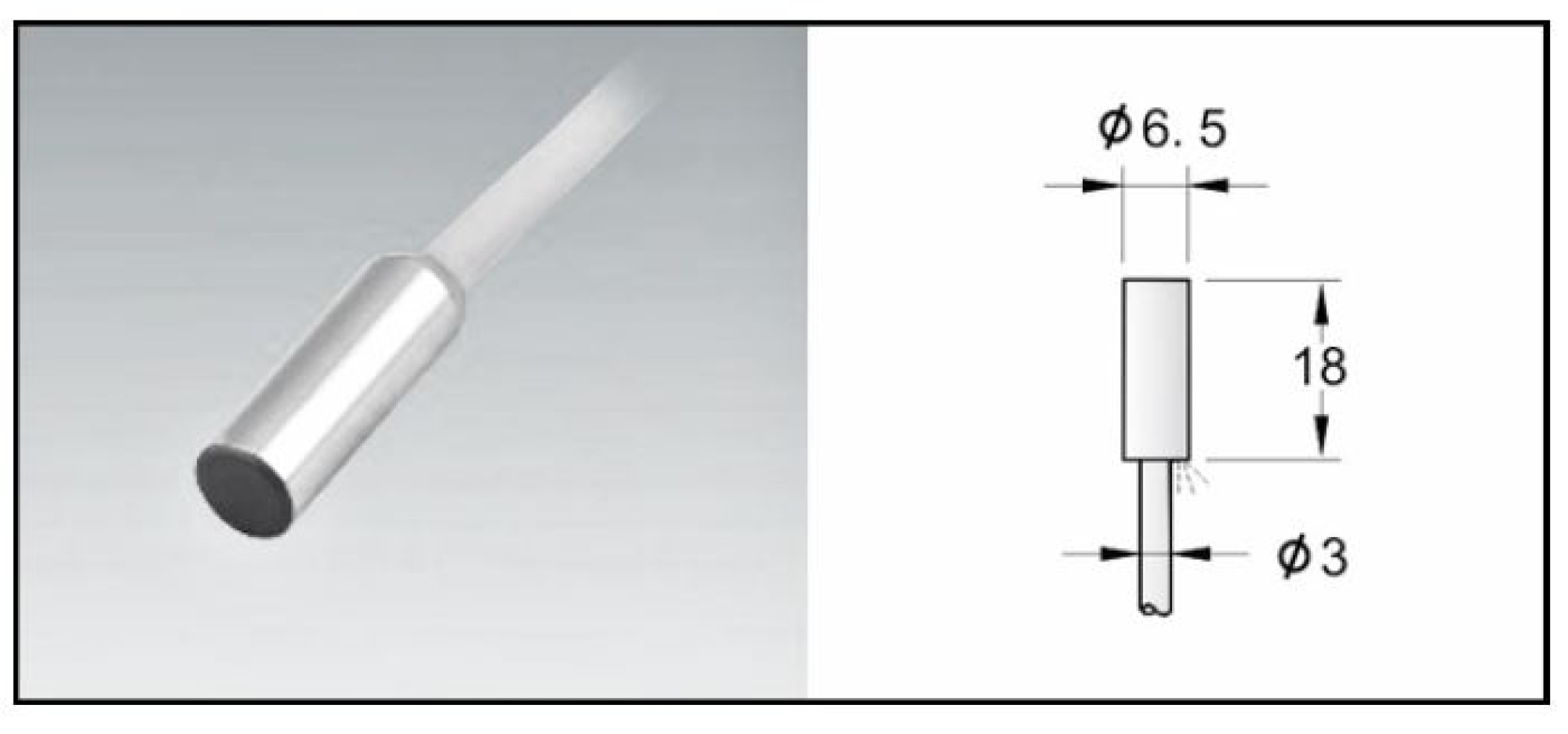

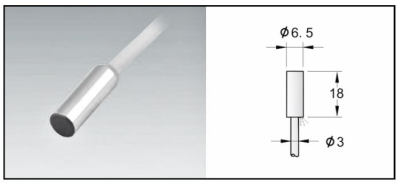

  • Dimension: 6,5 x 18mm
  • Switching Distance: 2 mm
  • Housing Material: Stainless steel
  • Function indication LED
  • Operating Voltage: 10 ... 30 VDC
  • Max. Load Current: 150 mA
  • Protection Category IP67
  • Operating Temperature -25°C ... +70°C
  • Short Circuit Protection
Documentation

  Datasheet (english)
