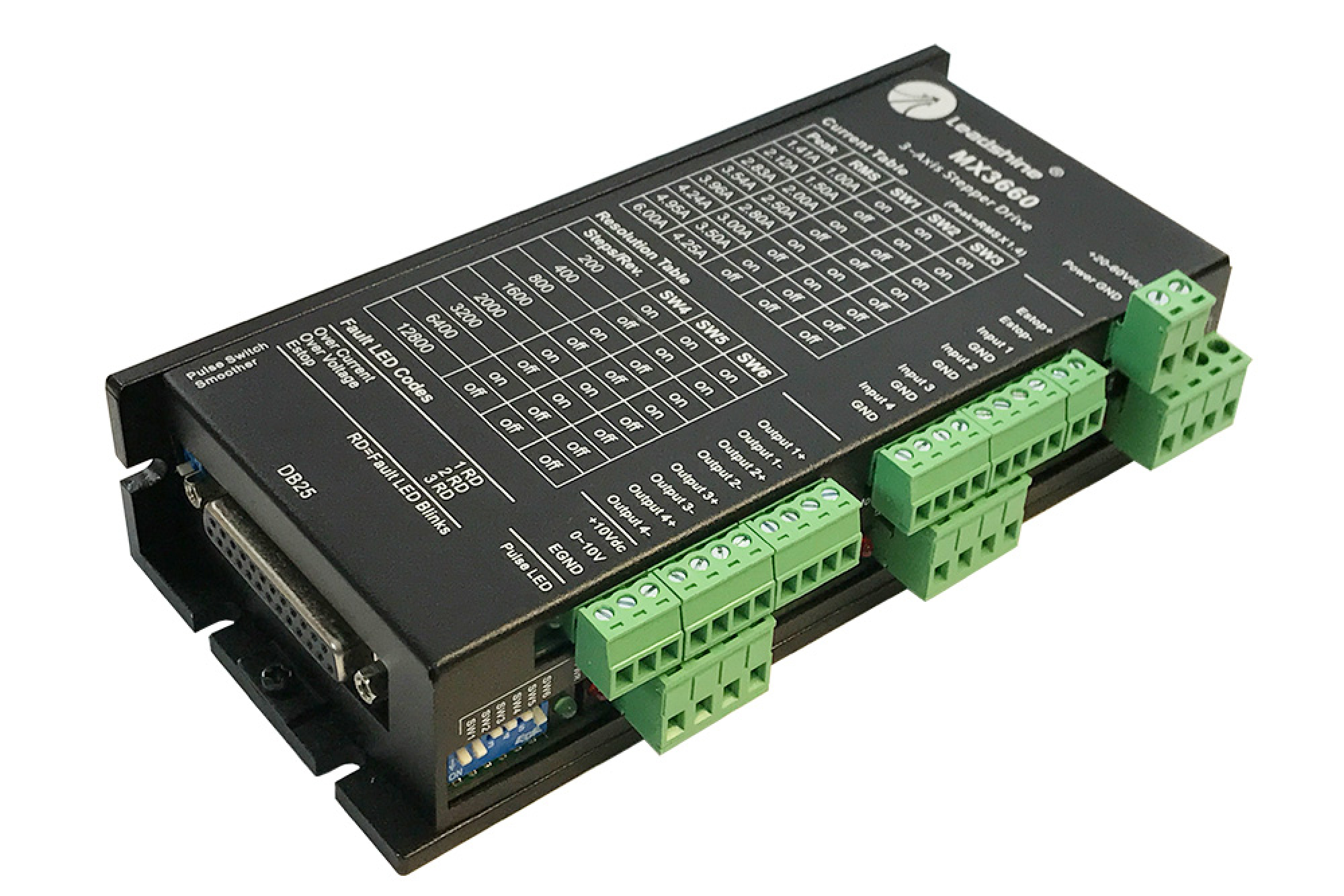

Leadshine MX3660

• Power up to 3 stepper motors of NEMA 17, 23, 24, or 34
• Sophisticated stepper motor control based on the latest DSP technology
• Built-in breakout board and I/O’s
• Step & direction Control
• 200 KHz maximum frequency for each axis
• 20 - 60 VDC supply voltage
• 1.41 - 6.0A output current per axis
• 8 micro step settings: 1, 1/2, 1/4, 1/8, 1/10, 1/16, 1/32, 1/64
• 8 output current settings of 1.41 - 6 A for each axis
• Damping and anti resonance
• Allowing individual output current & micro step settings for each axis
• Input pulse smoothing for less jittering, higher torque, and quicker response
• Extra low motor heating & noise
• Extra smooth motor movement
• Simple micro step & output current configuration via DIP switches
• Fault output
• Compact size and easy setup
• 50% automatic idle current reduction
