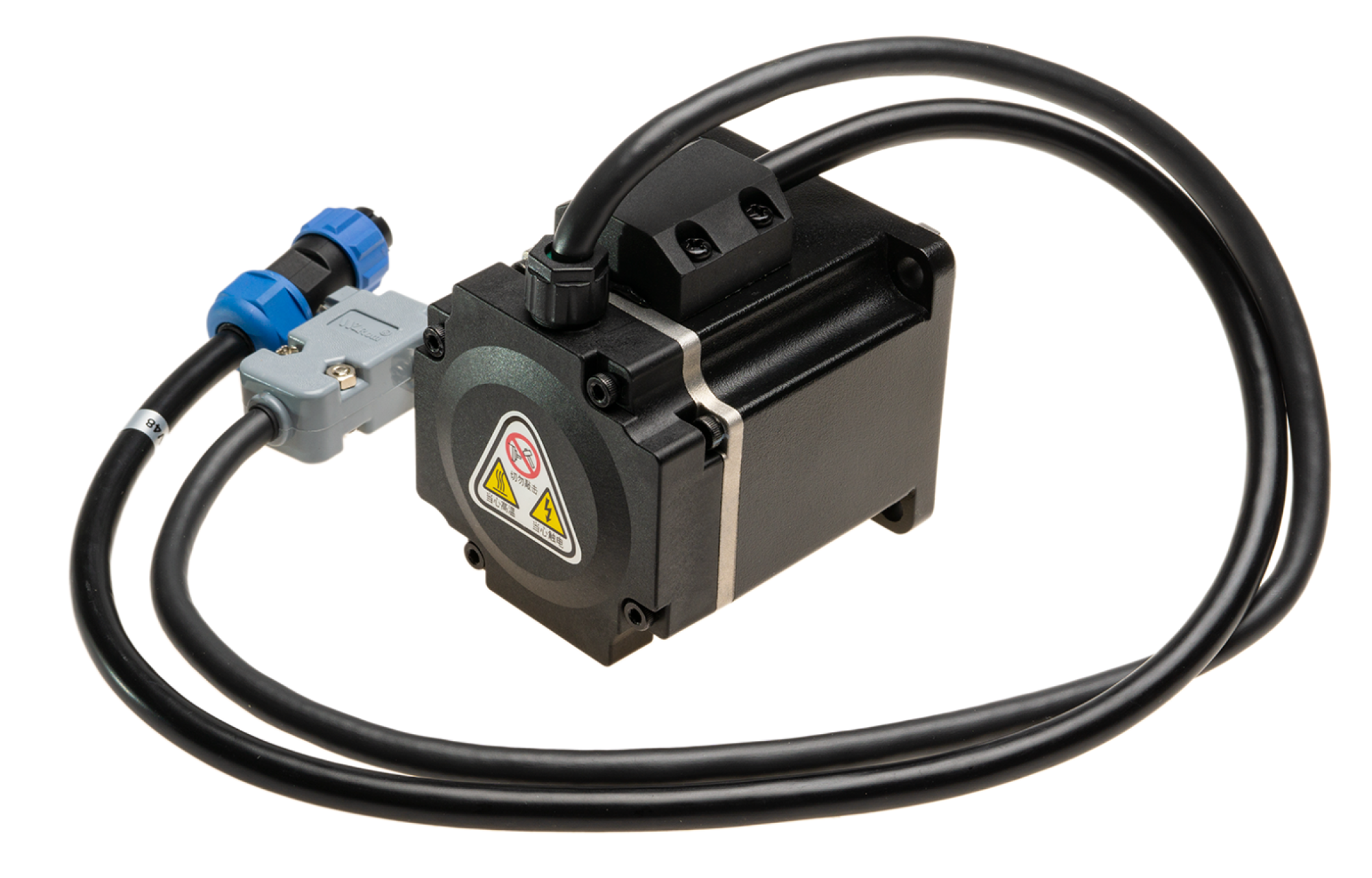

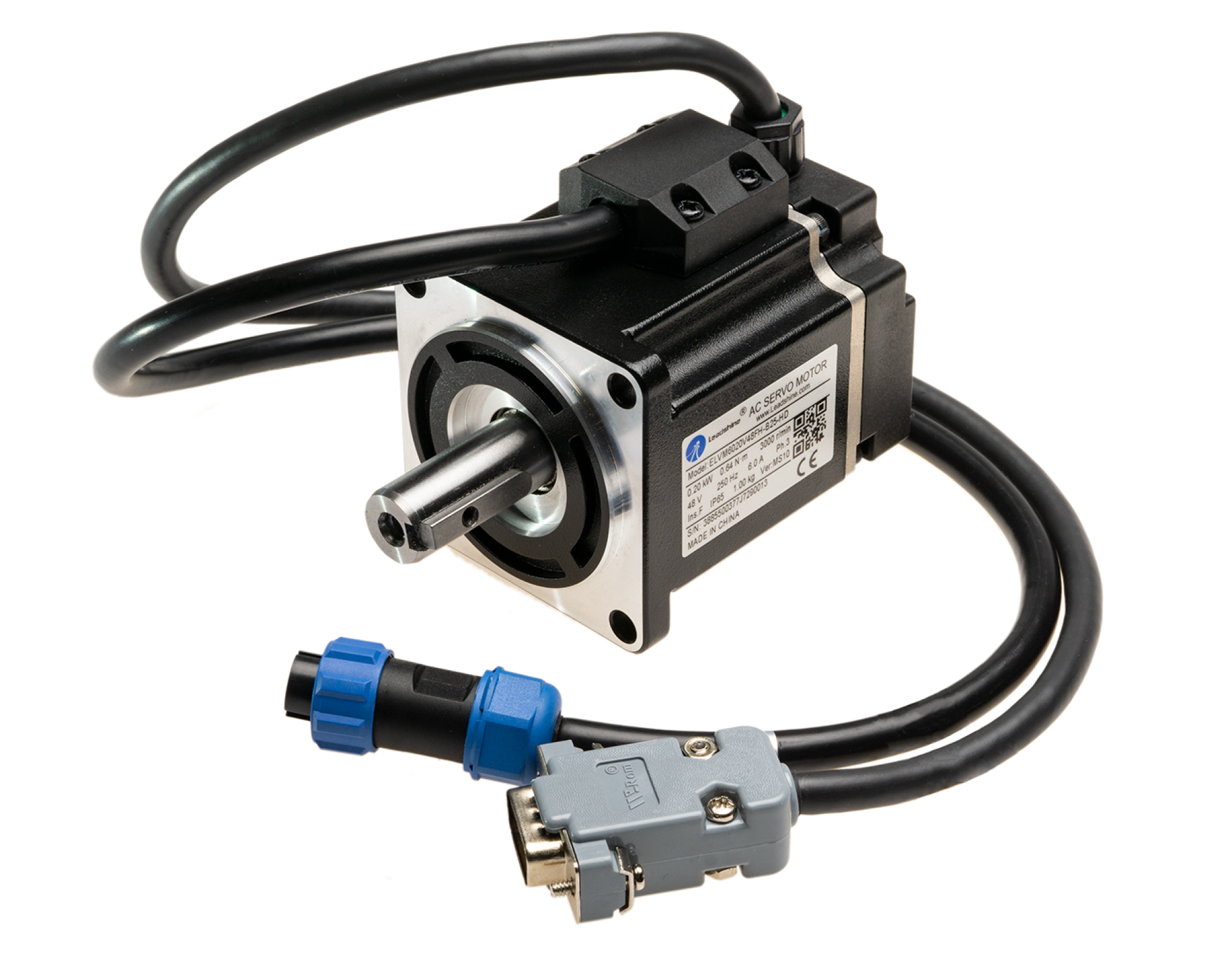

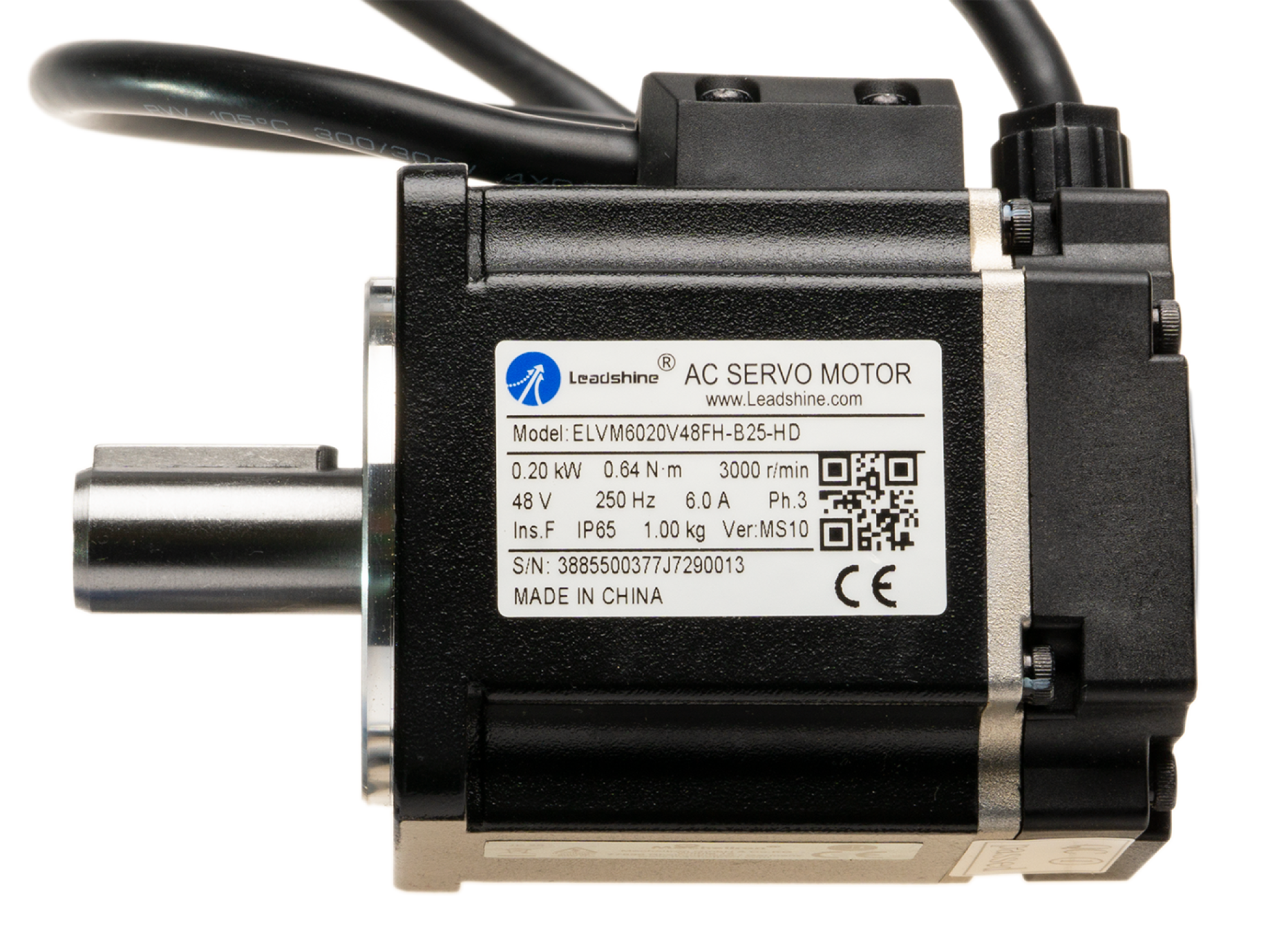

Leadshine Servo Motor 200 Watt / 48 Volt
Servo Motor 200 Watt / 48 Volt
The ELVM low-voltage servo motor series is Leadshine's latest in-house development. Characteristic are the short overall length, high torque density, high peak torques, low noise development and low temperature rise, all with IP65 protection.
Technical characteristics:
- Brushless construction
- 60 mm frame size
- 48 VDC rated voltage
- 200 W rated power
- 10000 CPR (2500-line) incremental encoder with A, B, indexing signals
- 0.64 Nm rated torque / 1.92 Nm peak
- 3000-1 rated speed / 4000-1 peak
Note: The appropriate encoder cable is required for use with the ELD5-400 Leadshine driver.
Datasheet servo ELVM60 (german)
