Fog lubrication MVM

The MIKROMAX lubrication system MVM is a standard system that works according to the Venturi principle: Compressed air supplied atomizes thin lubricant into the cooling mist in the nozzle. The quantity of compressed air and the coolant can be adjusted with needle valves to the respective requirement. The system works with an air pressure of 0.3 to 1.5 bar. At higher pressures up to 6 bar, the coolant is atomized more finely.

With this system, the lubricant and compressed air supply is switched on manually using manually operated ball valves.

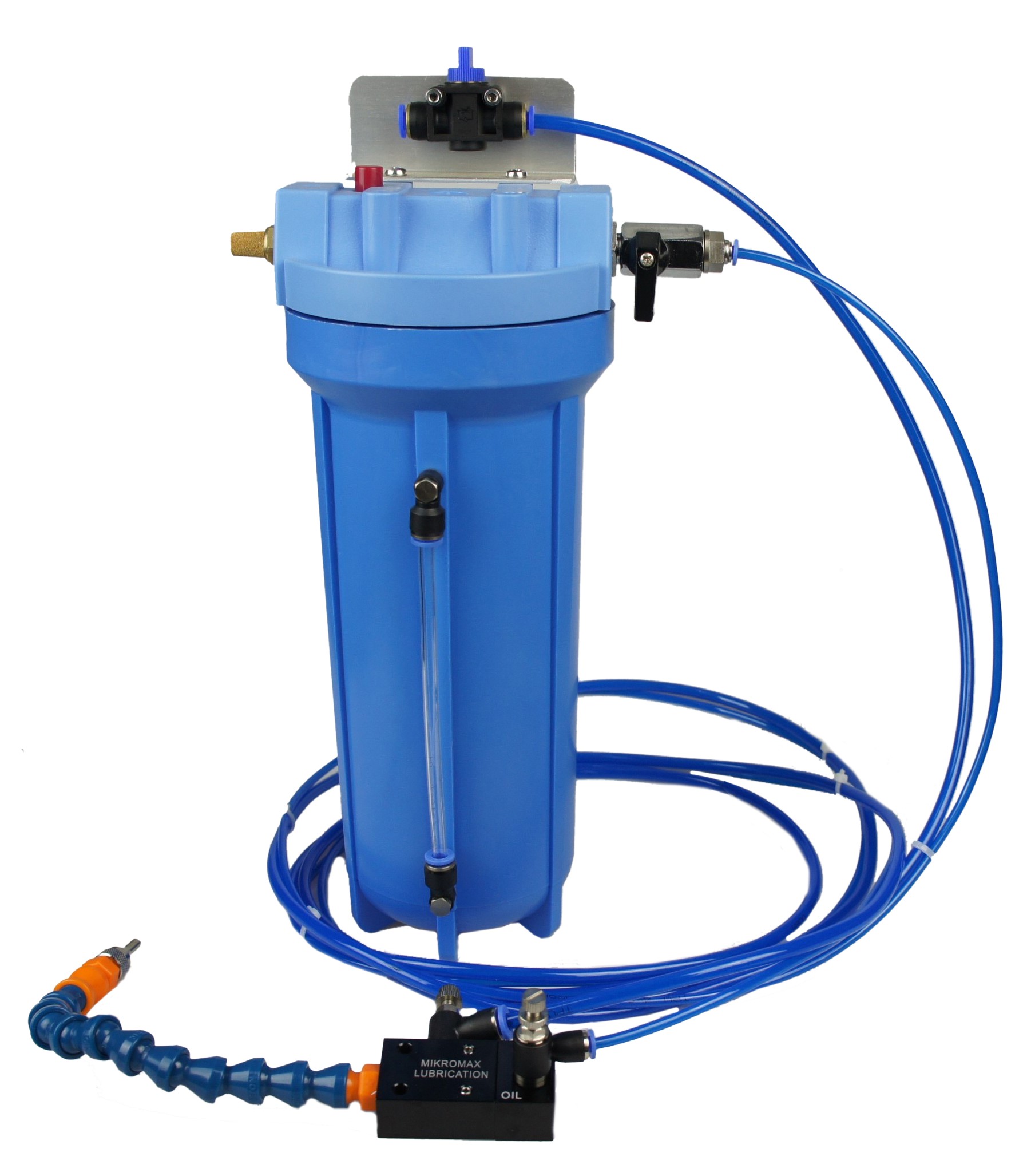

The system is assembled ready for operation and consists of:

• Coolant tank with a capacity of approx. 1.6 liters
• approx. 2 meters of connecting hose between the container and the spray head
• Spray head with needle valves and flexibly adjustable nozzle
• Intake filter in the coolant tank

This system can be equipped with a further nozzle via a V-distributor (4 mm outer Ø for lubricant, 6 mm for compressed air).

The connection to the compressed air supply is made using a hose with an outer diameter of 6 mm.
