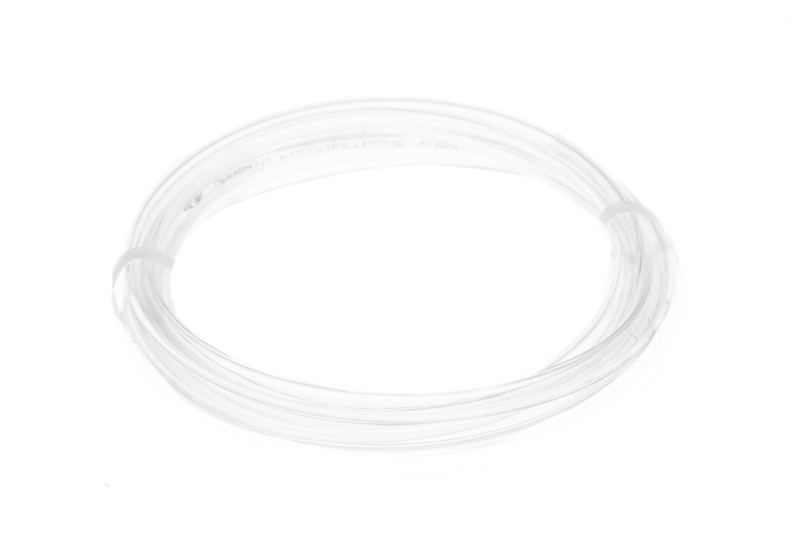

Pneumatic hose H-PUR

Polyurethane hoses are very flexible, but also prove to be extremely resistant to kinking in tight installation spaces, on top of that, they are suitable for drag chains. This makes them almost the standard as a connection in pneumatic systems.

It is important to precisely maintain the outer diameter during manufacture: this is the only way to ensure tightness in the push-in fittings that are almost always used.

Inside Ø 7 mm
Outside Ø 10 mm
Operating pressure max. 9 bar at 20 °C (temperature-dependent: 40 °C = 75%; 50 °C = 65%; 60 °C = 55%)
Temperature -20 ... +60 ° C
Bending radius min. 30 mm

1 m per unit
Hose cuts are excluded from exchange and return.
