Pneumatic unit for manual control of AMB tool changer FME-W DI

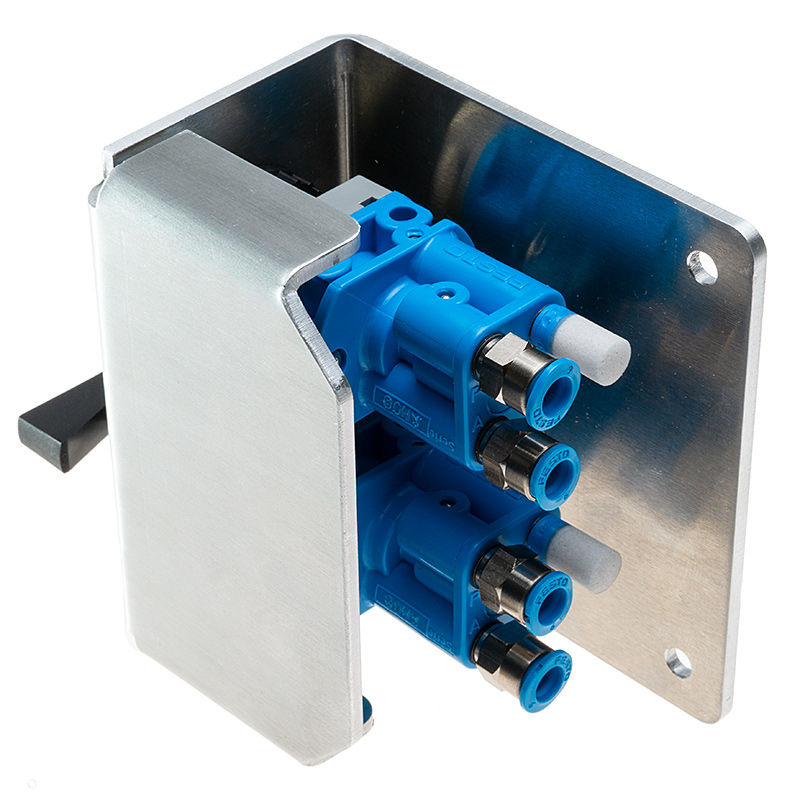

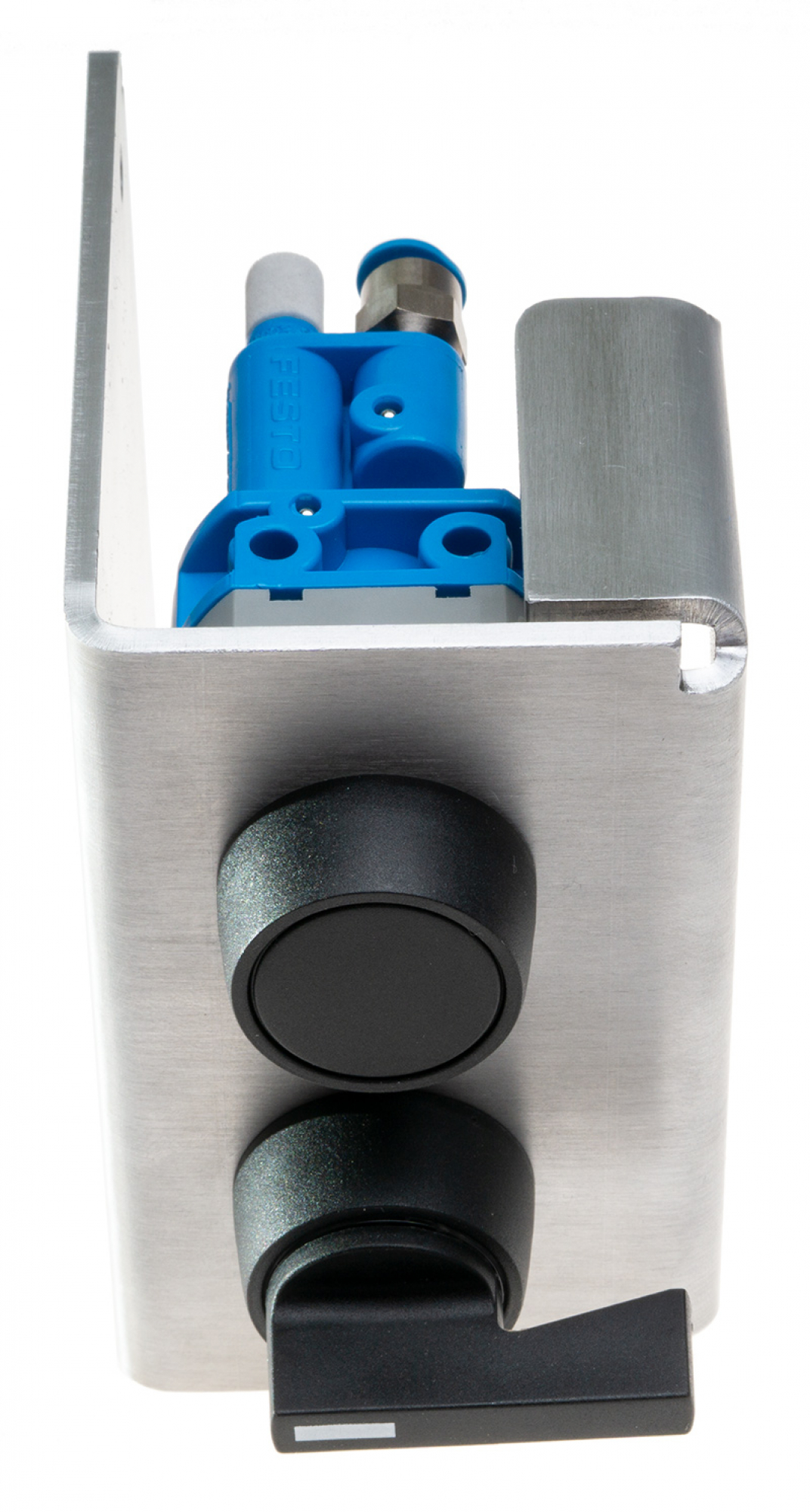

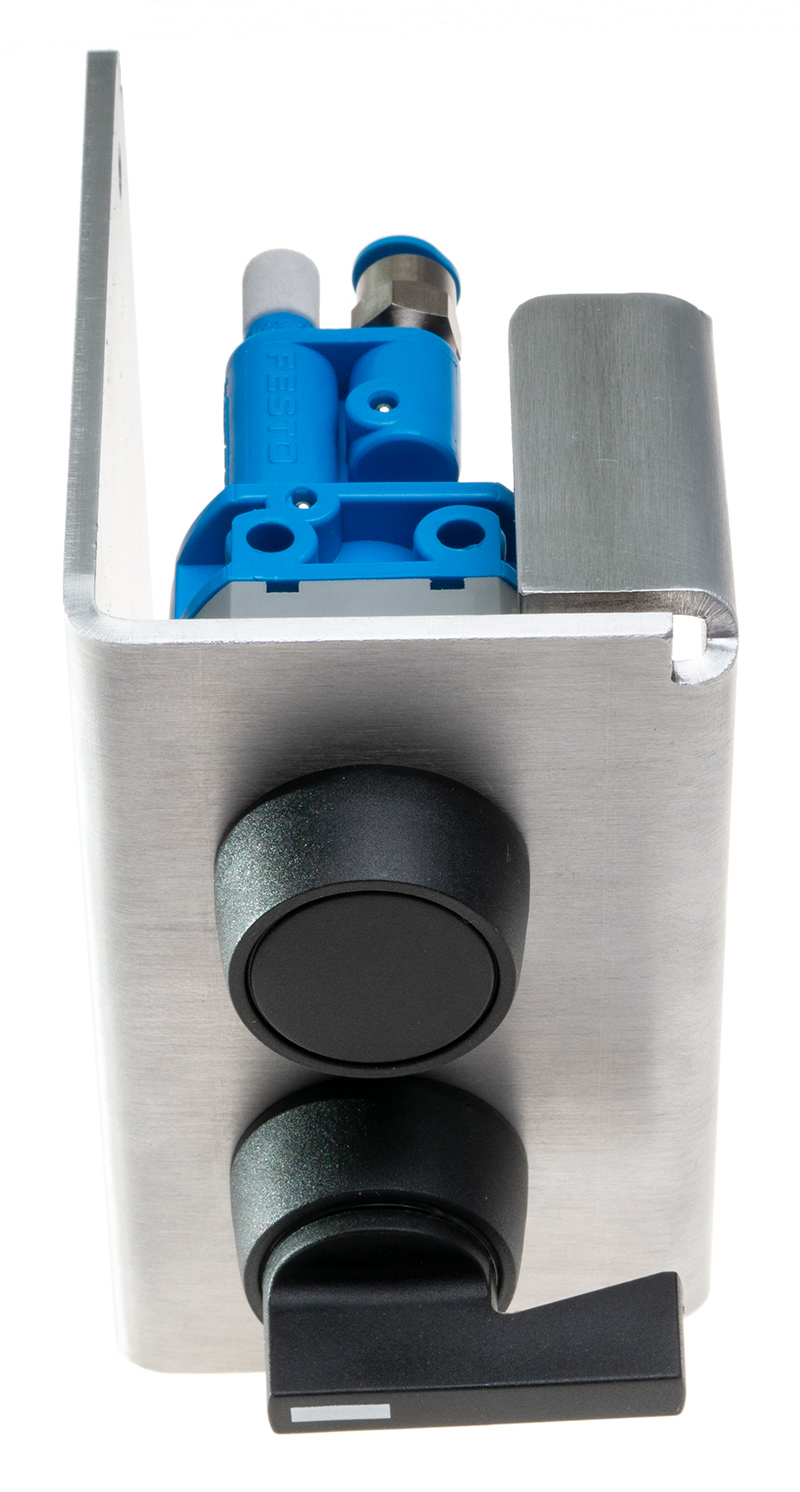

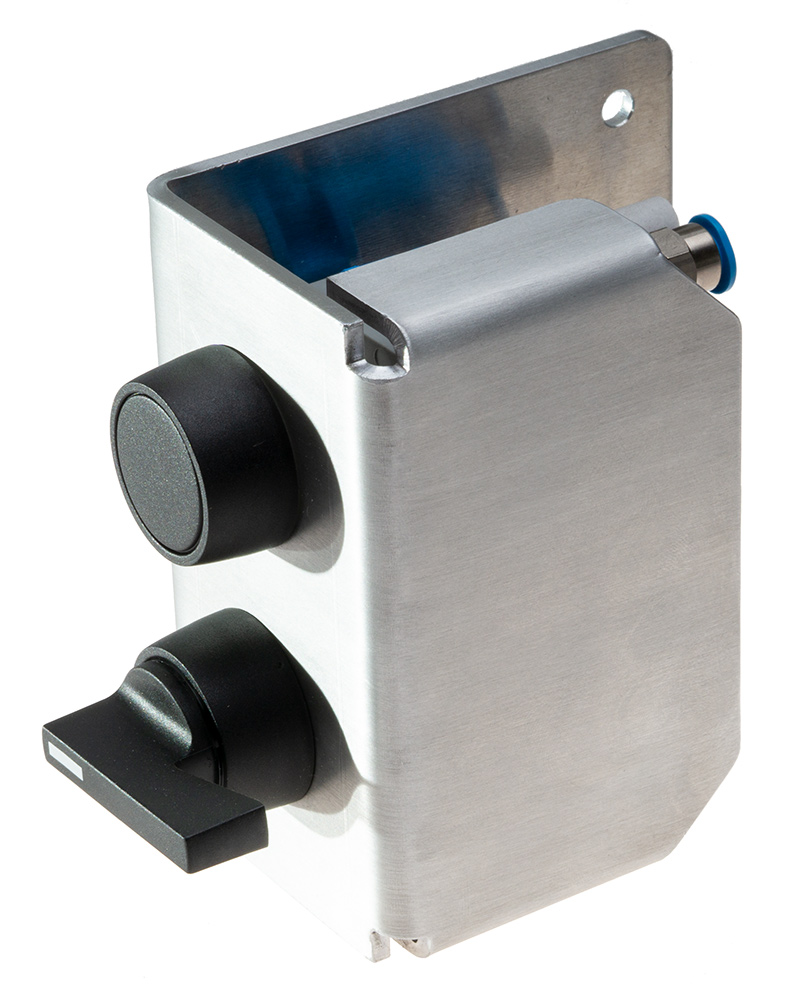

In principle, every pneumatic tool changer can also be controlled manually. To do so, AMB is offering a specific unit. The open housing, which is robustly folded from 3 mm aluminum sheet, houses two manual pneumatic valves from Festo. A switch toggles between "loosening" and "clamping", a button is used for "ejecting / blowing out". For the compact and lightweight air piston construction of the AMB tool changer, the eject button is briefly pressed four to five times.

Technical specifications:
Dimensions: W x H x D 60 x 100 x 90 mm (without control buttons)
Weight: approx. 280 g
Connections: 2 x 2 pneumatic hose 6 mm
