Parts set ALU-Line Gantry 0610

Length and width alone do not make a large machine: Only the carefully thought-out statics that go with it ensure the perfect usability of long travels. The ALU-Line impresses with table profiles with large cross-sections and reinforcements on almost every connection.

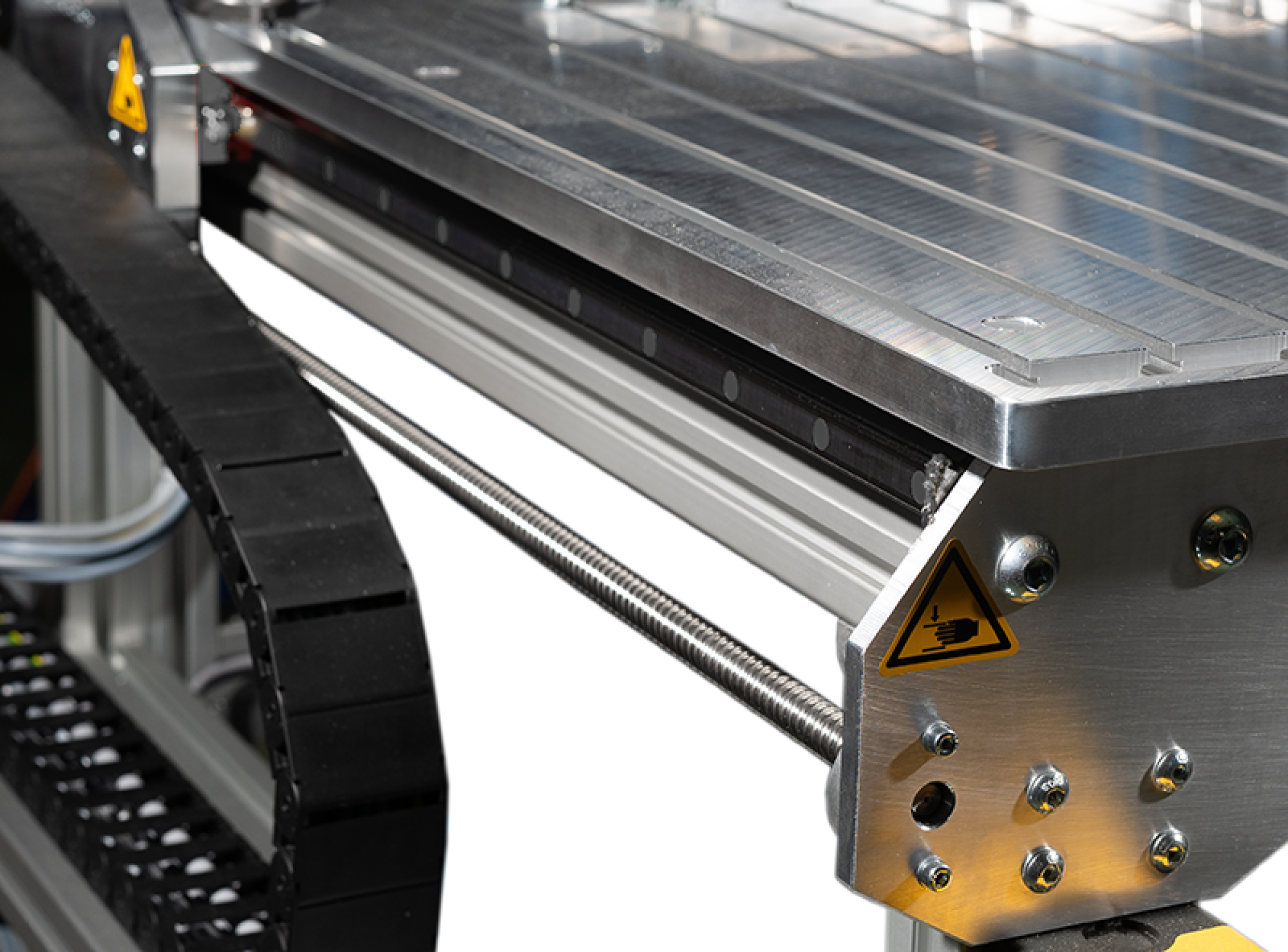

Additionally, the Gantry version comes with two external X-drive spindles for twice the power.

With this kit you get all the necessary parts for the mechanical construction of the portal milling machine. The drag chains and stepper motors are not included.

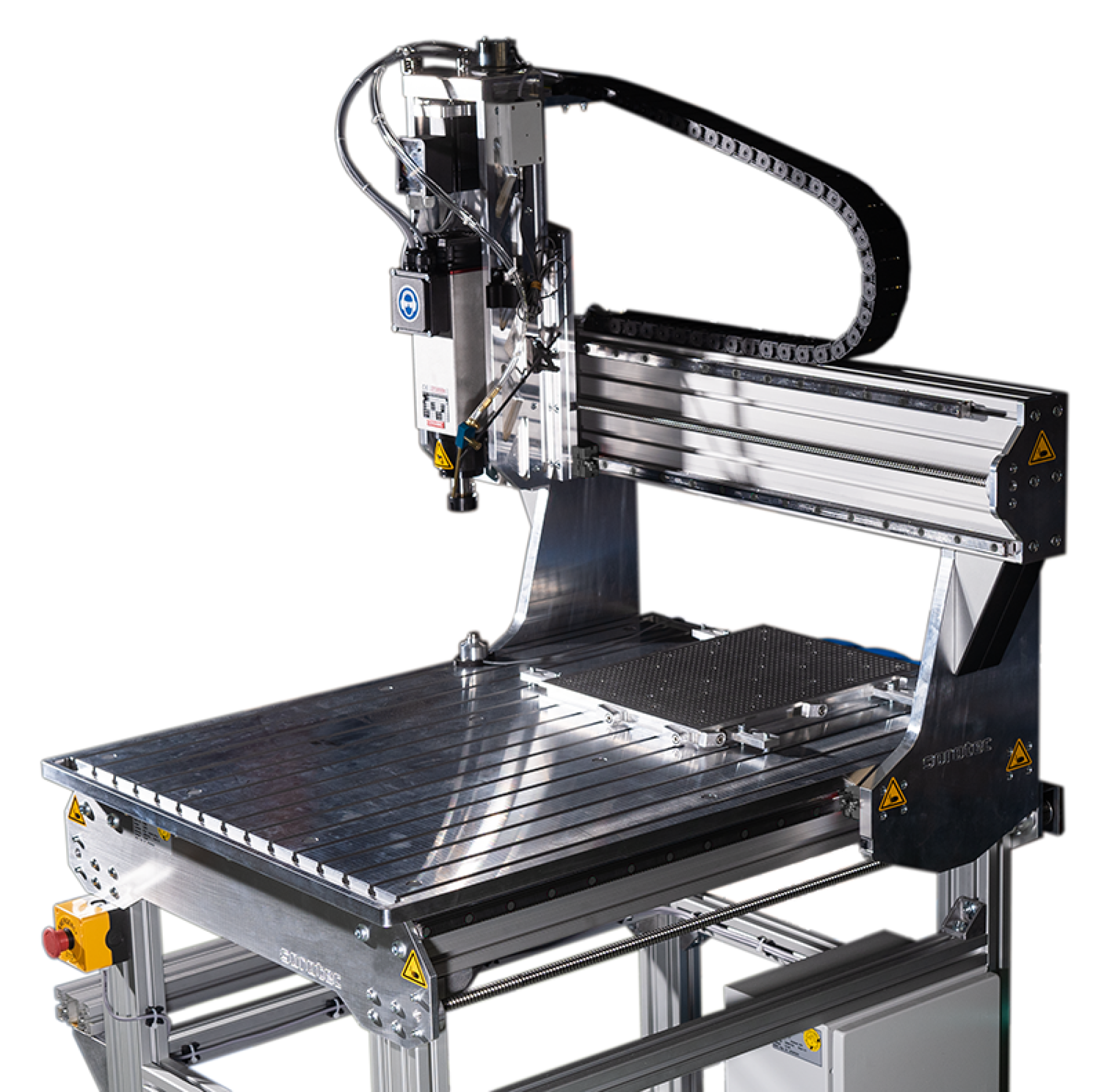

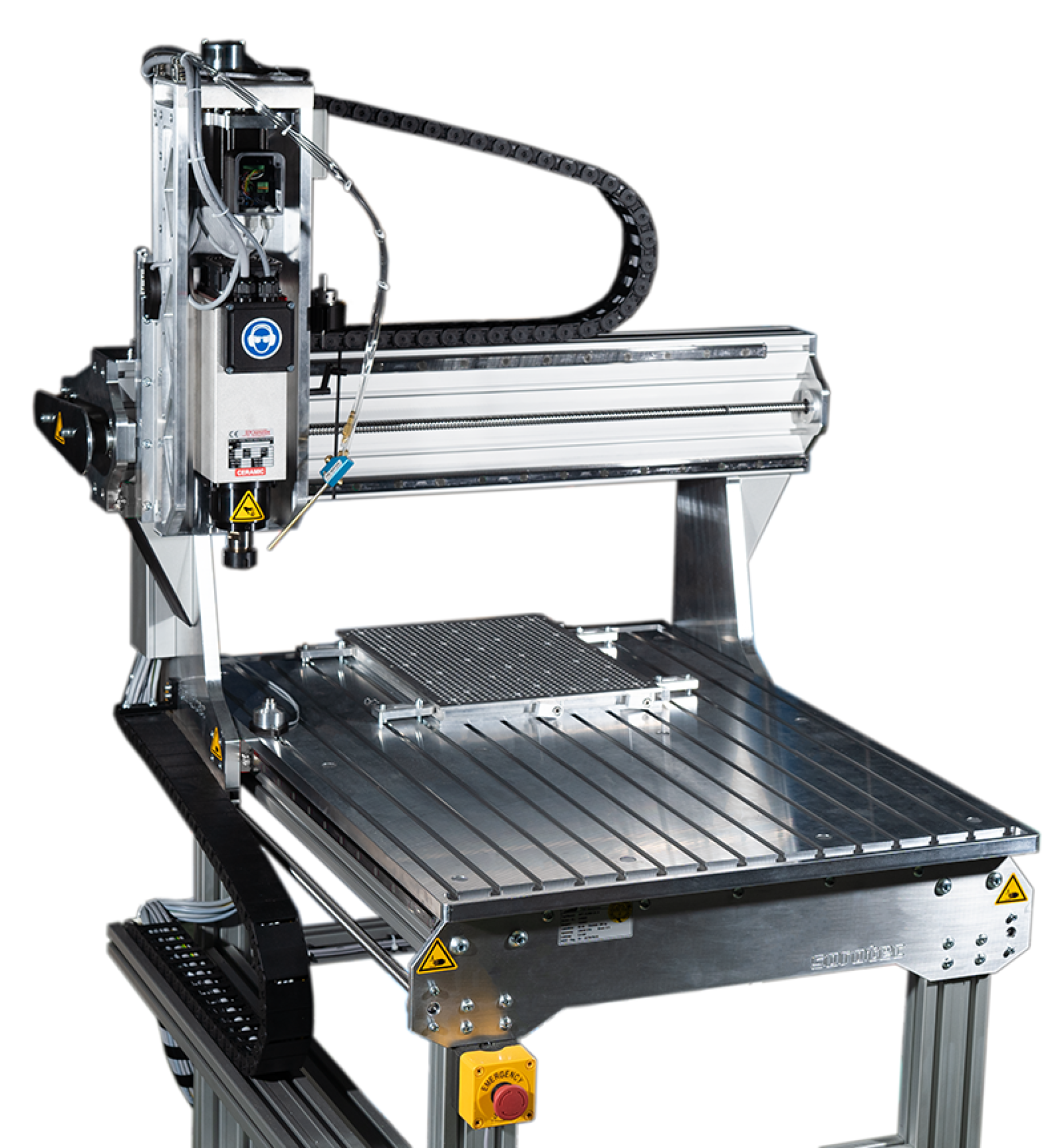

The mechanism is delivered in individual parts for self-assembly. The pictures show the fully assembled state. After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The housing and the functional safety module (operator protection) offered by Sorotec can be used for this. Also read this Information sheet.

• Aluminium profiles and machined parts to build the machine
• linear guides and carriages size 20
• Ball screw spindles
• HTD belts and pulleyes (for 8mm shaft)
• Mechanical reference switches for all axes
• Complete set of screws
• Assembly instructions

• Mounting Kit for Electric
• Machine feet
• Stepper motors
• Controllers
• Drag chains
• Control software
• CAD/CAM Systems
• Spindles (with and without tool changer)
• Frame
• T-Slot tables
• Cooling systems
• Housing
• further accessories

Delivery time on request
The shop can not calculate shipping costs, please contact us in case of order by email or phone.
