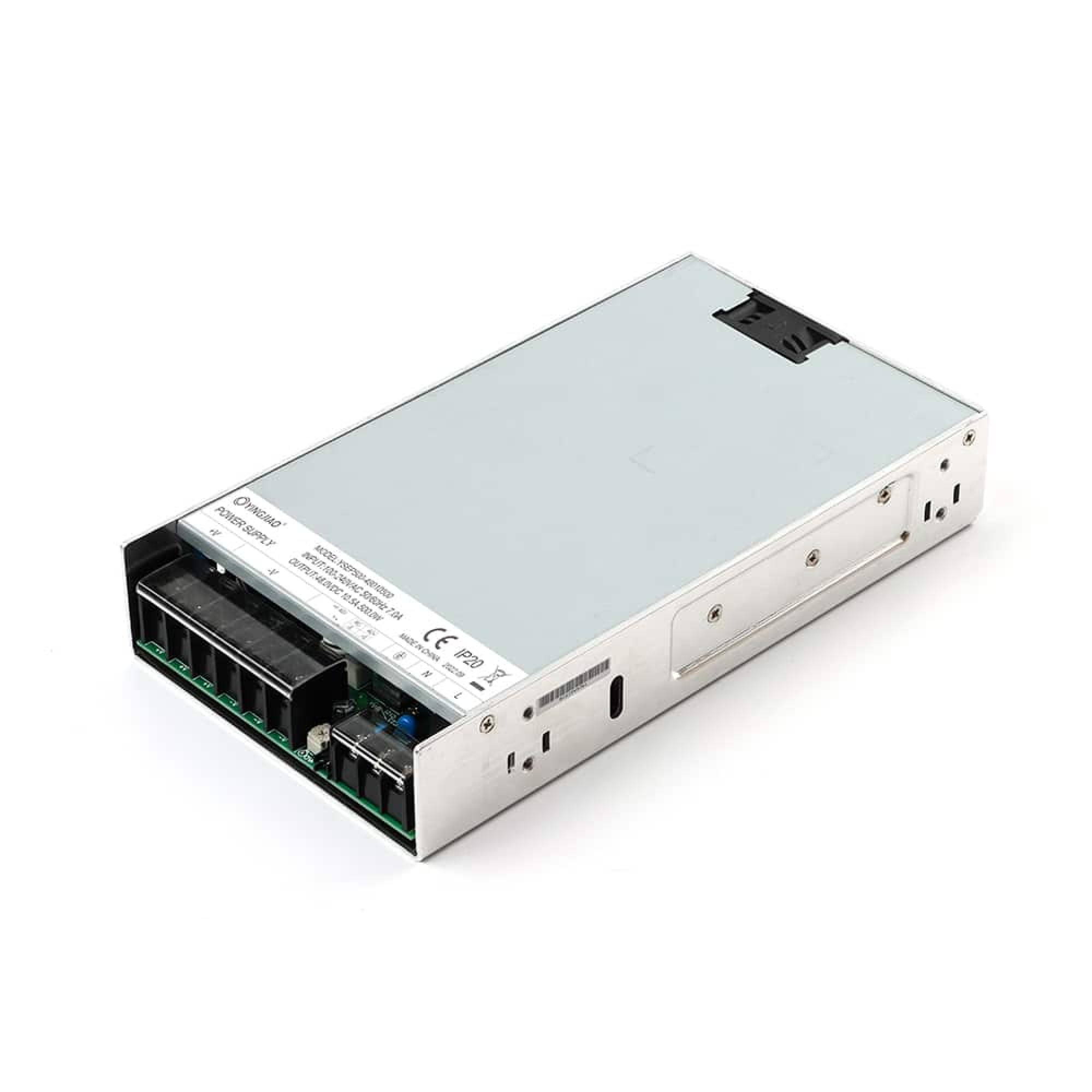

Power supply 48 V 600 Watt 12.5 A

Characteristics:

• Universal wide range input voltage
• PF > 0.95
• CE, UKCA
• Protection circuits for: overload, overvoltage, overtemperature, short circuit
• Dimensions: 230 x 127 x 40.5 mm (L x W x H)

Technical data:

• Input voltage: 90 ... 305 VAC (127 ... 370 VDC)
• Input frequency: 47...63 Hz
• Input current: 5.3 A at 115 VAC, 2.65 A at 230 VAC
• Switch-on load: 636 W
• Leakage current: < 1 mA / 240 VAC
• Current regulation (full load): ± 0.5%
• Voltage control range: ± 1%
• Output overload protection: 110...140%, hiccup mode, auto restart
• Output overvoltage protection: 58.4 ... 68.2 V, shutdown, reset on restart
• Short circuit protection: Hiccup mode, auto reset
• Rise time: 50 ms at full load (typ.)
• Bridging time: 3000 ms at full load (typ.)
• Operating temperature: -30 °C ... +70 °C (see power loss curve)
• Storage temperature: -40 °C ... +85 °C
• Ambient humidity: 20% ... 90% rel. Humidity (non-condensing)
• Storage humidity: 10% ... 95% rel. Humidity (non-condensing)
• MTBF: >100,000 hours
• Cooling: fan, speed regulated depending on temperature
• EMC guidelines: BS EN/EN55032 (CISPR32)
• Class B, BS EN/EN61000-3-2, -3
• Dielectric strength: I/P-O/P, I/P-FG, O/P-FG: 100 MOhm / 500 VDC / 25 °C / 70% RF
• Design: Closed design
• Dimensions: 230 x 127 x 40.5 mm (L x W x H)

Remarks:

1. All parameters measured at 230 V AC unless otherwise stated.
2. The power supply is a component that is used together with other assemblies. The complete application must be checked for compliance with the valid EMC regulations.
