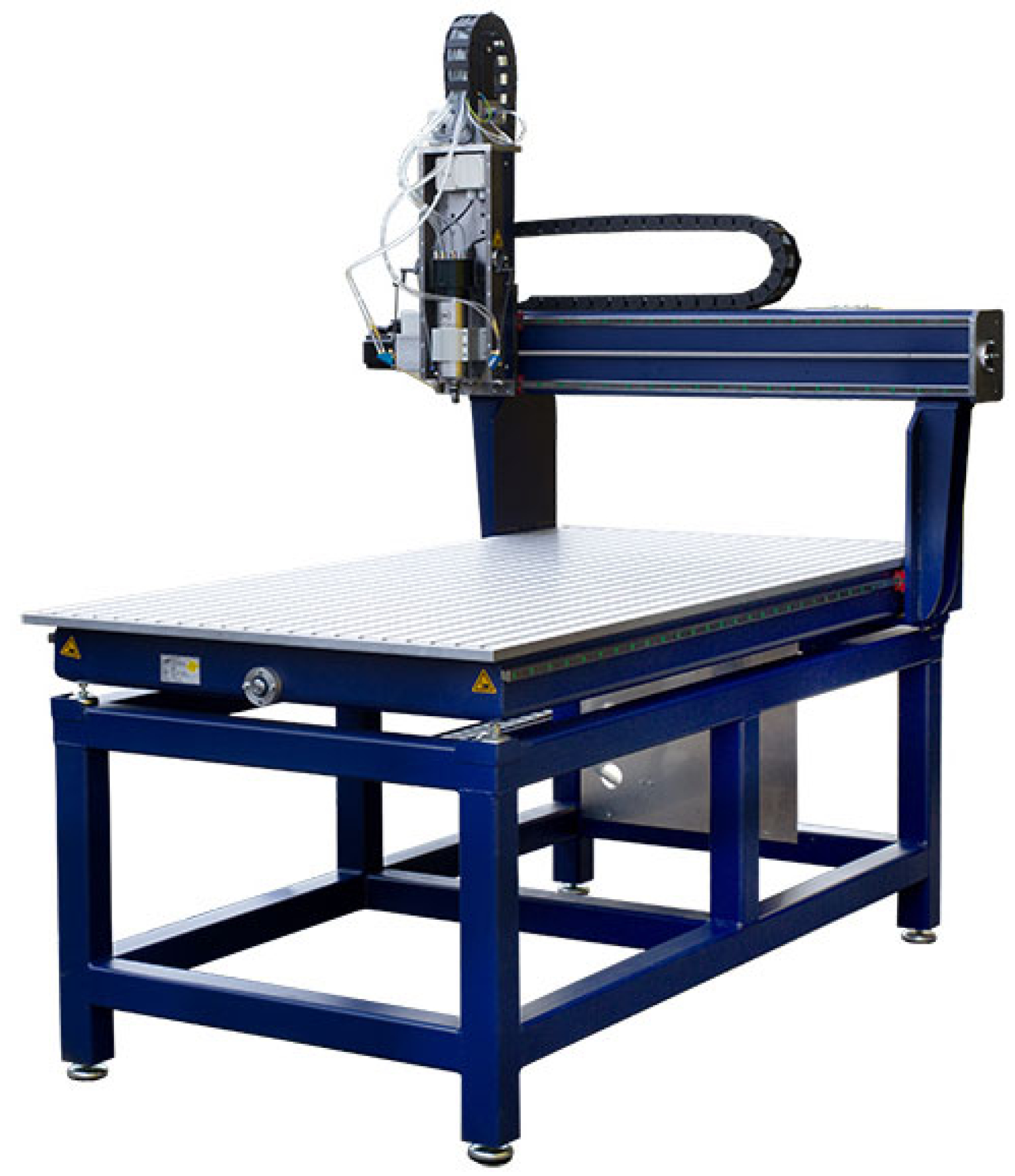

Sorotec FE-Line V2 1507 - Portal milling machine
The massive structure made of rectangular tubular steel with large cross sections clearly shows the direction: The FE-Line V2 series is a construction for daily, productive use over many years. Reliability and reproducible precision are paramount; deceptively inexpensive compromises at the expense of robustness are out of the question.
The basic structure offered here is equipped with ball screws, linear guides, inductive sensors and cabling. For further completion, we recommend a detailed consultation - be it on the phone or at our company, where we will be happy to show you fully assembled machines and put together the best equipment for your application and explain it in detail.
Special features of the FE-Line V2:
- Machine bed made of welded 10 x 80 x 120 mm steel tube
- Portal beams made of welded 8 x 100 x 200 mm tubular steel
- All assemblies annealed to low stress
- Milled linear guide surfaces with a stop edge
- Machine bed milled in one clamping
| Technical Data | |
|---|---|
| Travel |
X: 1600 mm |
| Clearance under Portal | 250 mm (without table) |
| Clamping area | X: 2000 mm Y: 790 mm |
| Outer Dimensions |
W: 1350 mm |
| Guides | HIWIN linear guides Size 20 on all axes |
| Ball screws Tolerance class T07 |
X: 25 x 10 mm Y: 16 x 10 mm Z: 16 x 5 mm |
| Reference sensors | Inductive opener on all axes |
| Motors | Prepared for NEMA 34 type motors |
| Weight without accessories | ca. 350 kg |
| Color | RAL 5013 |
Available as an accessory:
- Stepping motor controls
- control software
- CAD / CAM systems
- Milling spindles (with and without tool changer)

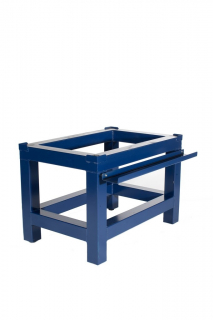

- undercarriage
- T-slot
- Minimal quantity lubrication
- enclosure
- other accessories
Delivery time on request
Since the shop cannot calculate shipping costs, please contact us by email or phone to place an order.
