ST-Line 0704 - Portal milling machine
Sorotec ST-Line 0704
This portal milling machine complements our extensive range and can be classified between the COMPACT-Line / ALU-Line and the FE-V2. The design features show it's purpose for daily, productive use in a semi-professional environment:- Machine bed made of welded steel profiles
- Portal made of welded steel profiles
- All modules are stress-relieved
- Milled linear guide surfaces with a stop edge
- Machine bed milled in one clamping
High quality equipment on all axes:
- Ball screws
- Angular contact ball bearings
- 20 mm linear guide rails
- Prepared for inductive reference switch
Please note!

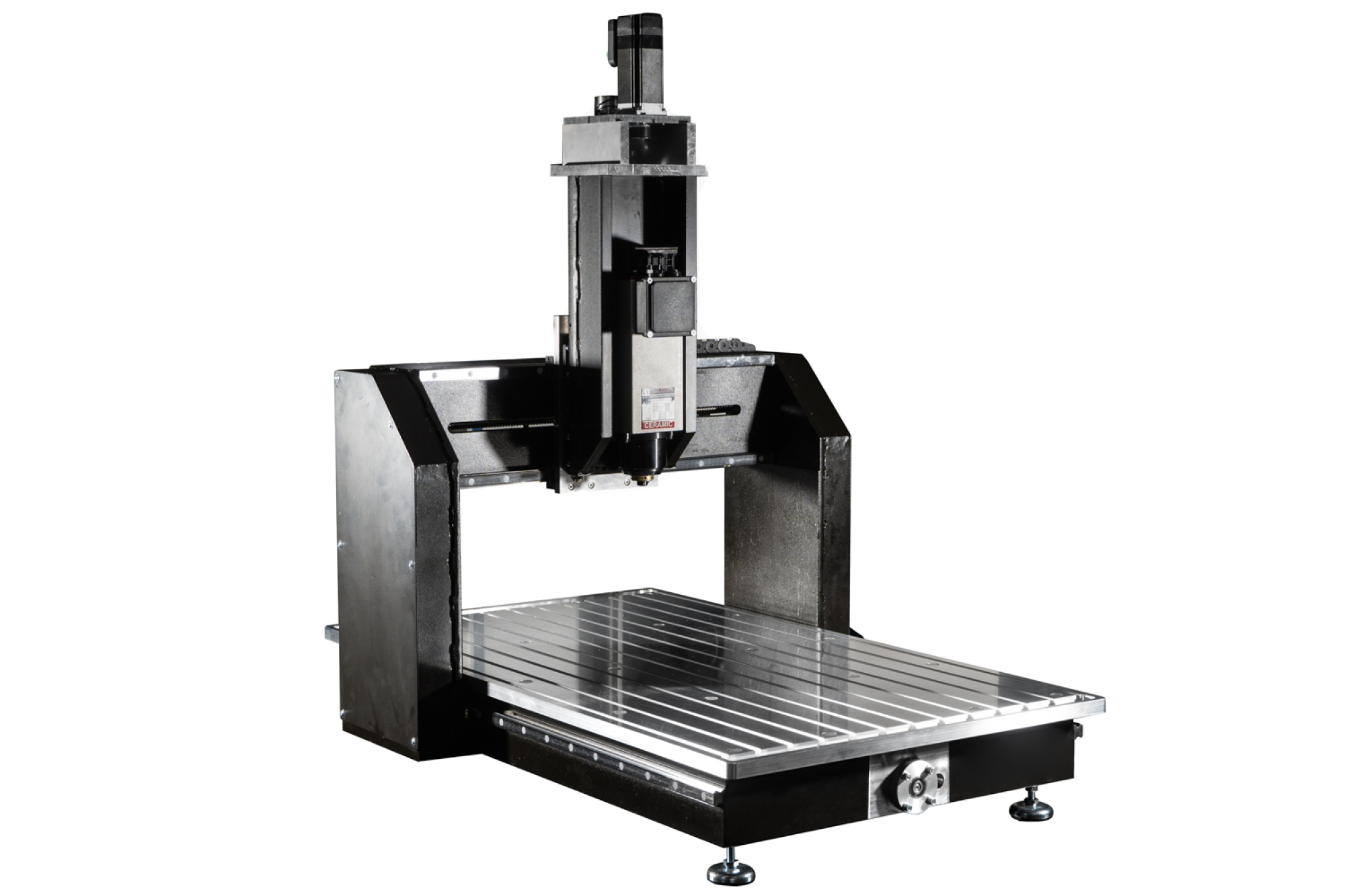

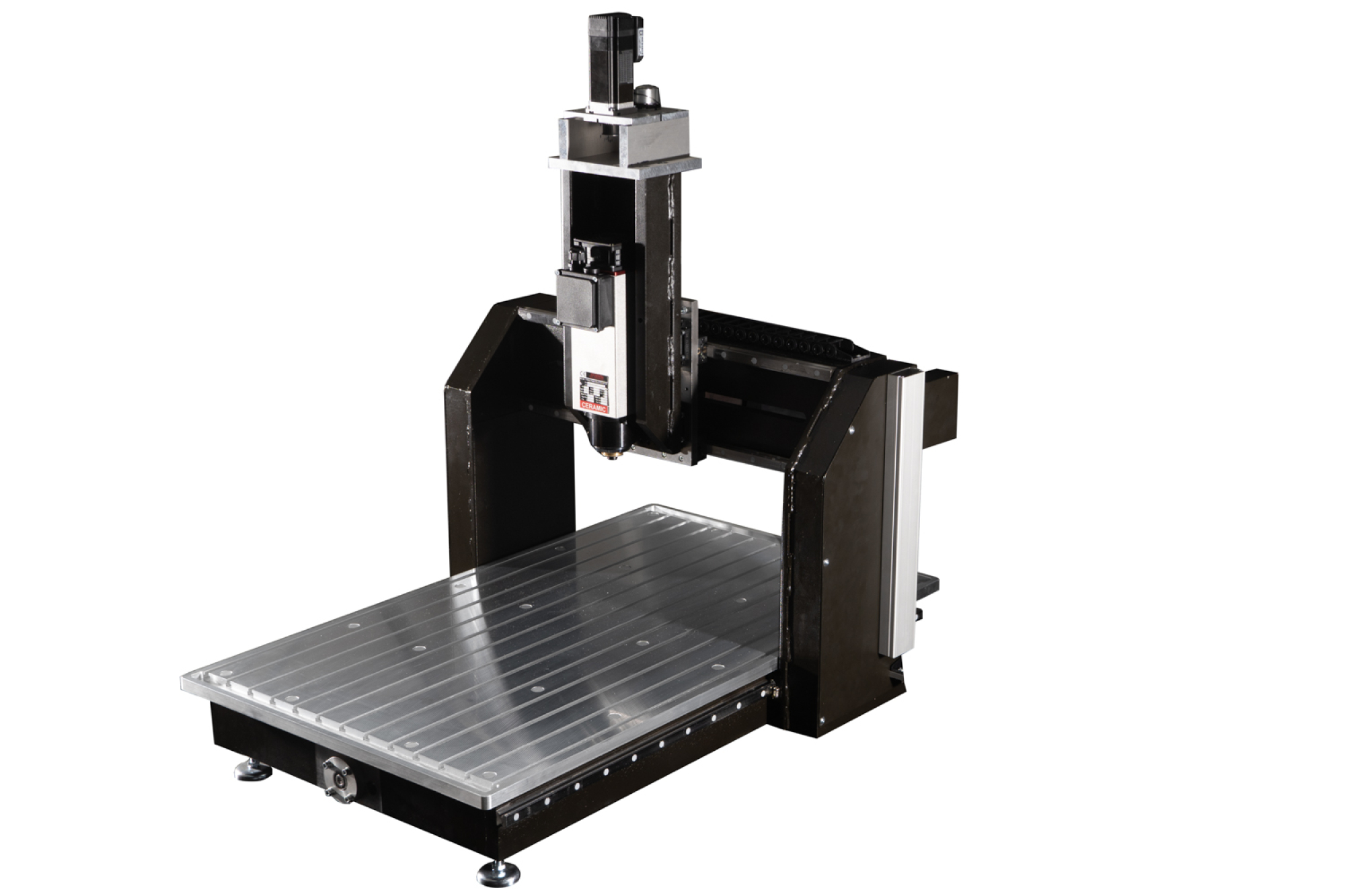

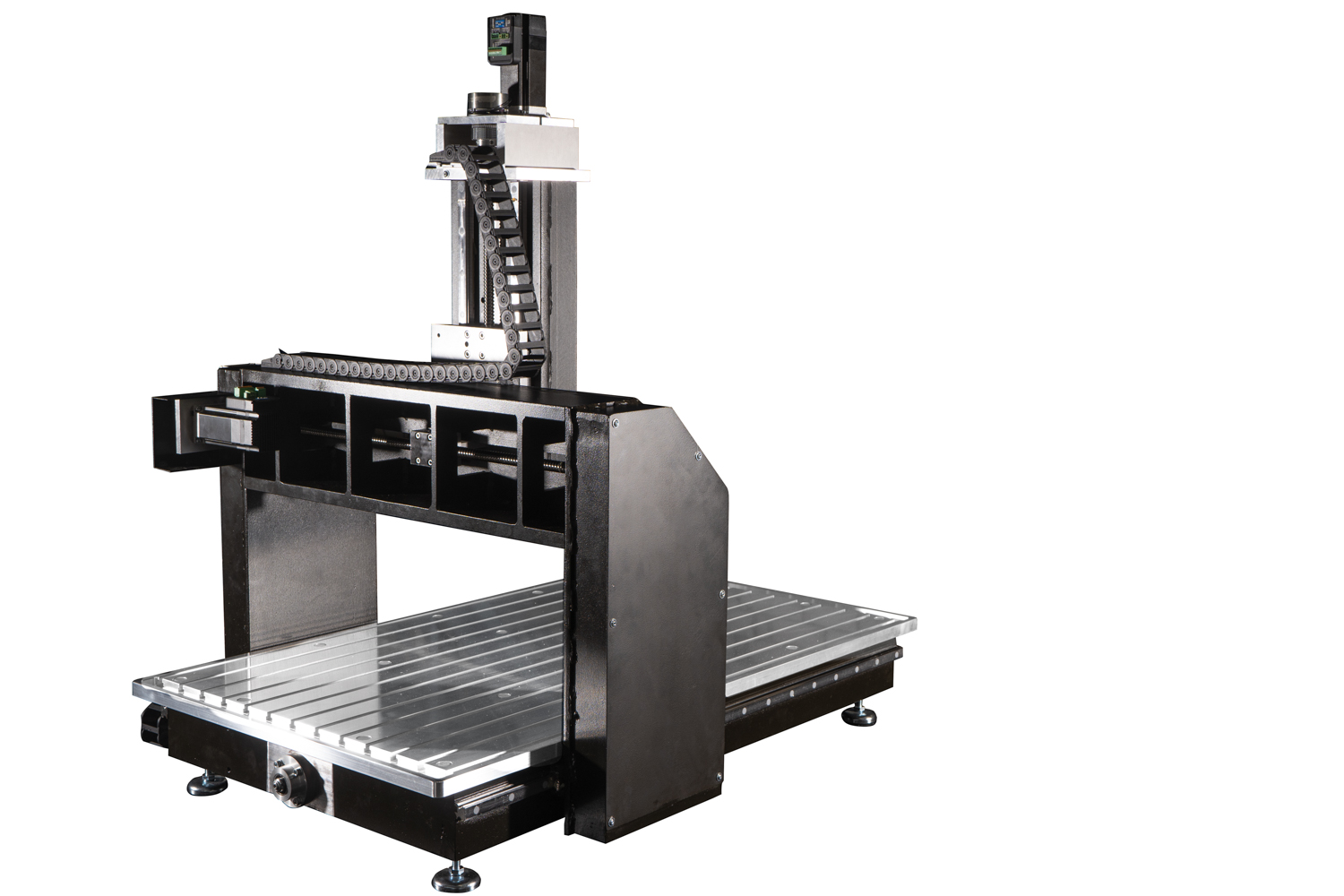

The illustrations include grooved plate, milling motor and stepper motors which can be purchased optionally.
| Technical Data | |
|---|---|
| Travel |
X: 750 mm |
| Clearance under Portal | 260 mm without T-Slot plate |
| Clamping area | X: 1050 mm Y: 640 mm |
| Outer dimensions |
L: 1150 mm |
| Guides | Linear Guides HIWIN Size 20 on all Axis |
| Ball screw spindles |
X: 16 x 10 mm Y: 16 x 10 mm Z: 16 x 5 mm |
| Weight | approx. 205 kg |
Delivery time on request
For logistics reasons, this article can only be delivered by freight carrier. Therefore, the item can not be purchased through our shop. Write us. We are happy to provide you with an individual offer including transport costs.
