Clamping block as block for 16 mm spindle

Name: Clamping block as block for 16 mm spindle
SKU: AL.ZAN.SBI16.01
Price: 46.50 EUR
Availability: InStock

Product No.:: AL.ZAN.SBI16.01
Shipping time:: immediately available, 2-3 Days (abroad may vary)
Shipping weight:: 0.37 kg per piece

46,50 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Description

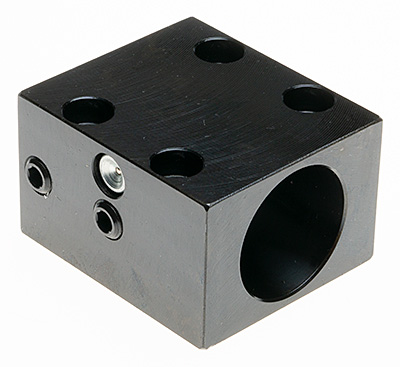

Clamping block as block for 16 mm spindle

Material steel, burnished
For mother gradients 2.5 / 4 / 5 / 10 and 20 mm
Ball screw nut is adjustable without backlash
Flange fastening

Dimensions

Length: 54 mm
Width: 47 mm
Height: 33 mm
Nut fitting Ø: 28H7
4 mounting holes Ø: 6.6 mm

Documentation

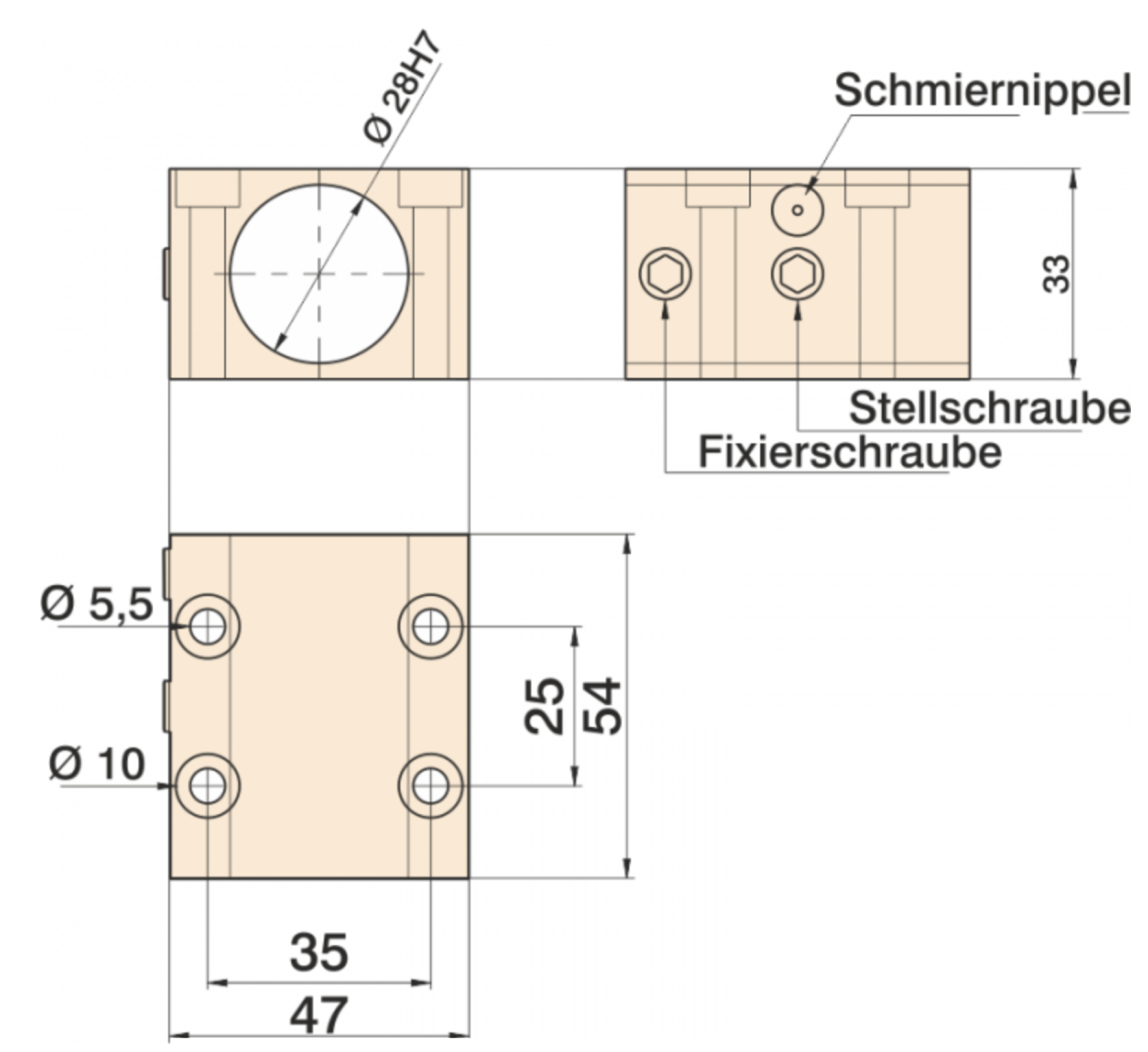

Technical drawing
