AMB FME-Q 800
Spindle-Motor AMB FME-Q 800
0608211Technical details
Power: 800 Watt / 230 V
Revolutions: 10000 ... 29000 rpm

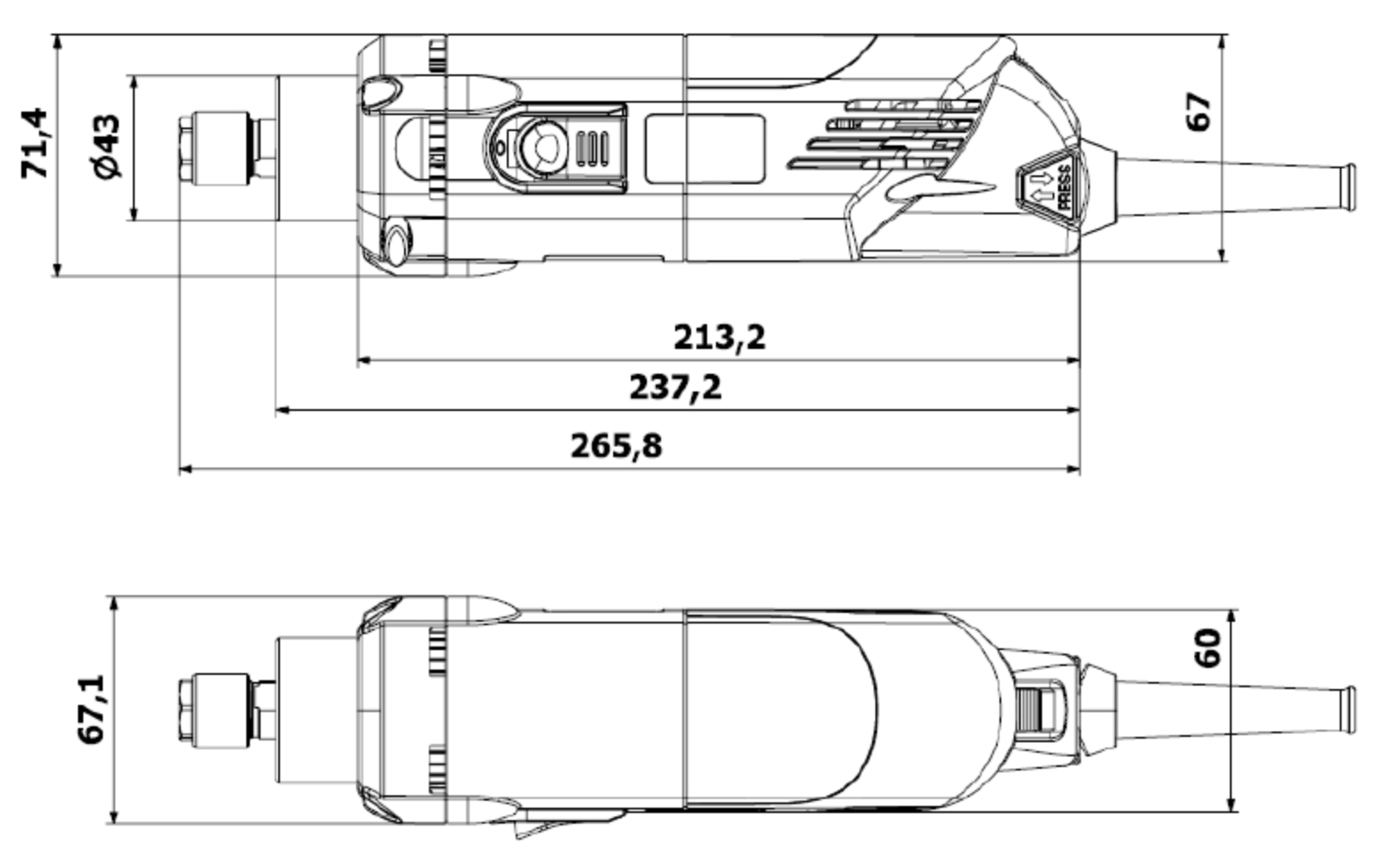

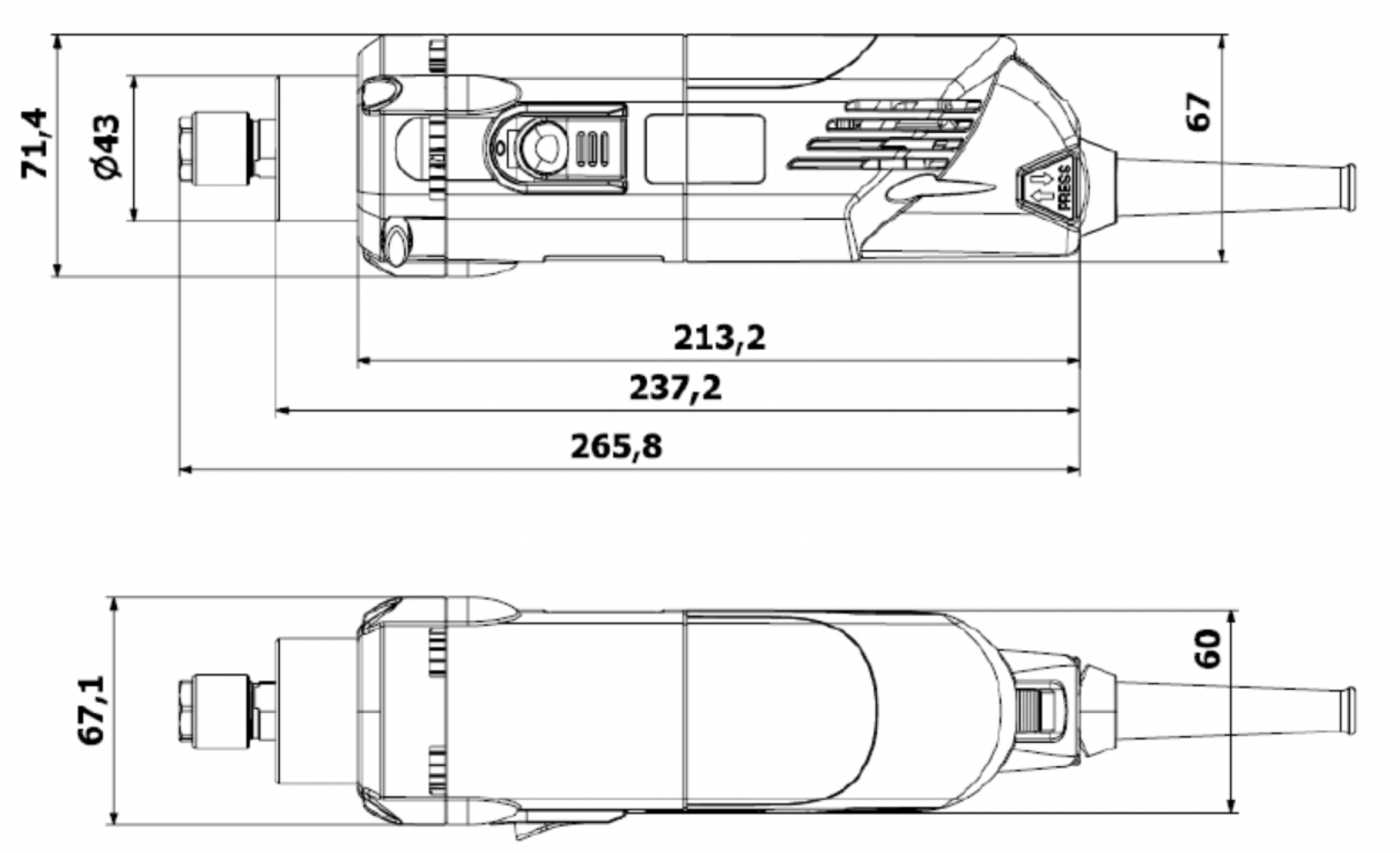

Mounting: Ø 43 mm
Weight: 1.4 kg
Product Description:
- Removable Cable
- Full wave electronics for constant performance and speed
- Soft-start and starting current limitation
- Special winding protection for the motor against dust and particles
- Steel motor flange with double bearing for high loads
- Spindle lock for easy tool chang
- Electronic overload protection prevents overheat of the motor
- Special switch off conductor brushes to protect motor
- Includes Precision collet 8 mm
HINT :
This spindle is also available with a 1050W spindle motor
with a speed range from 5 000 to 25 0000 rpm.
(AMB FME-1 1050)
Delivery content
- Spindle motor 800W
- 4m power cord with a patented quick release
- Clamping nut
- 8mm precision collet
- Instruction manual
Datasheet AMB FME 800 Q (german)Manufacturer: | Responsible person: |
