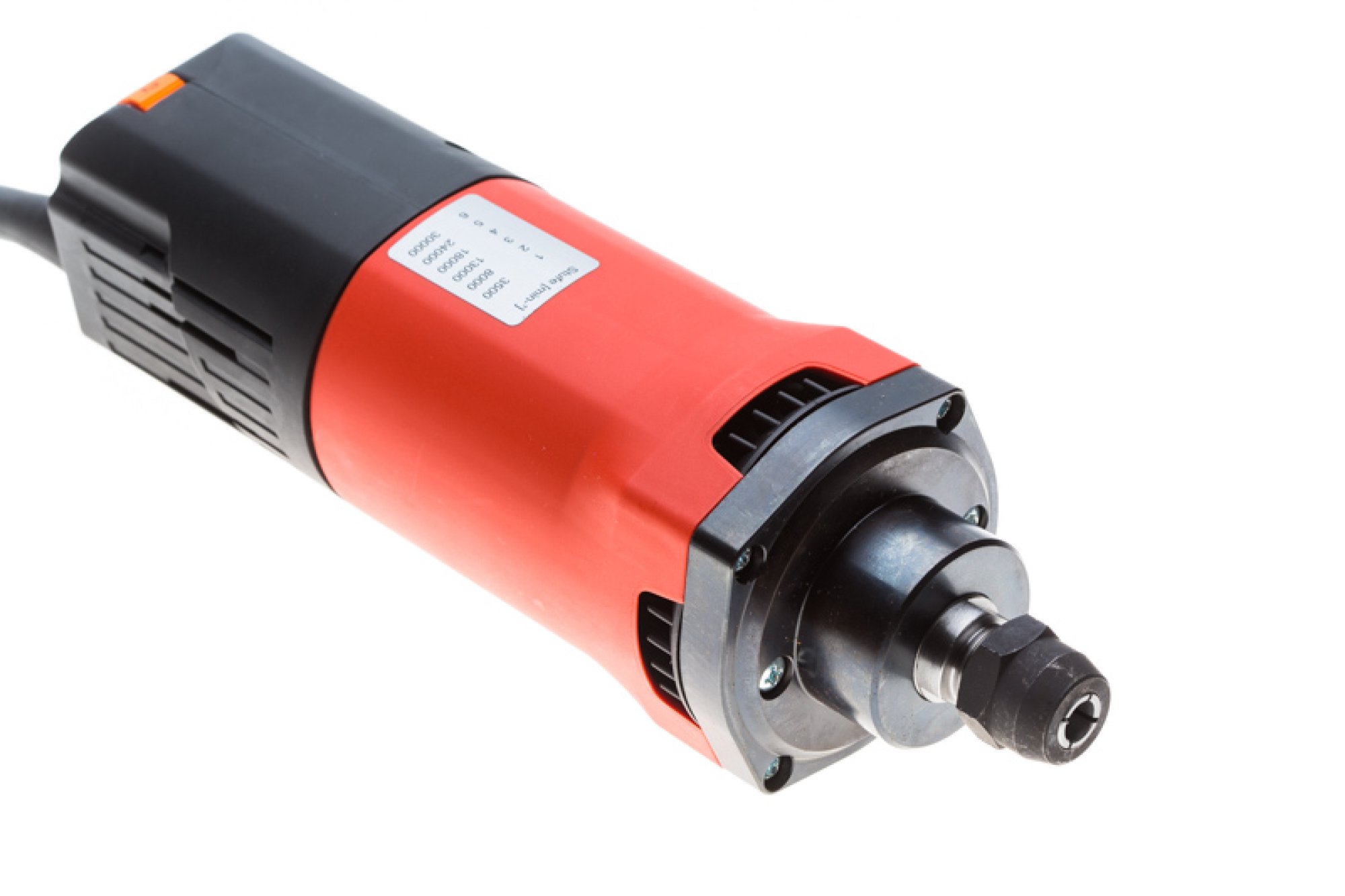

Spindle-Motor Suhner UAK 30-RF / 1530 W
The revolutions go down to 3.500 rpm, which is very helpful when for example milling aluminum
Product Description:
- Powerful, safety-insulated universal motor with high efficiency level
- 43 mm chuck with a steel finish

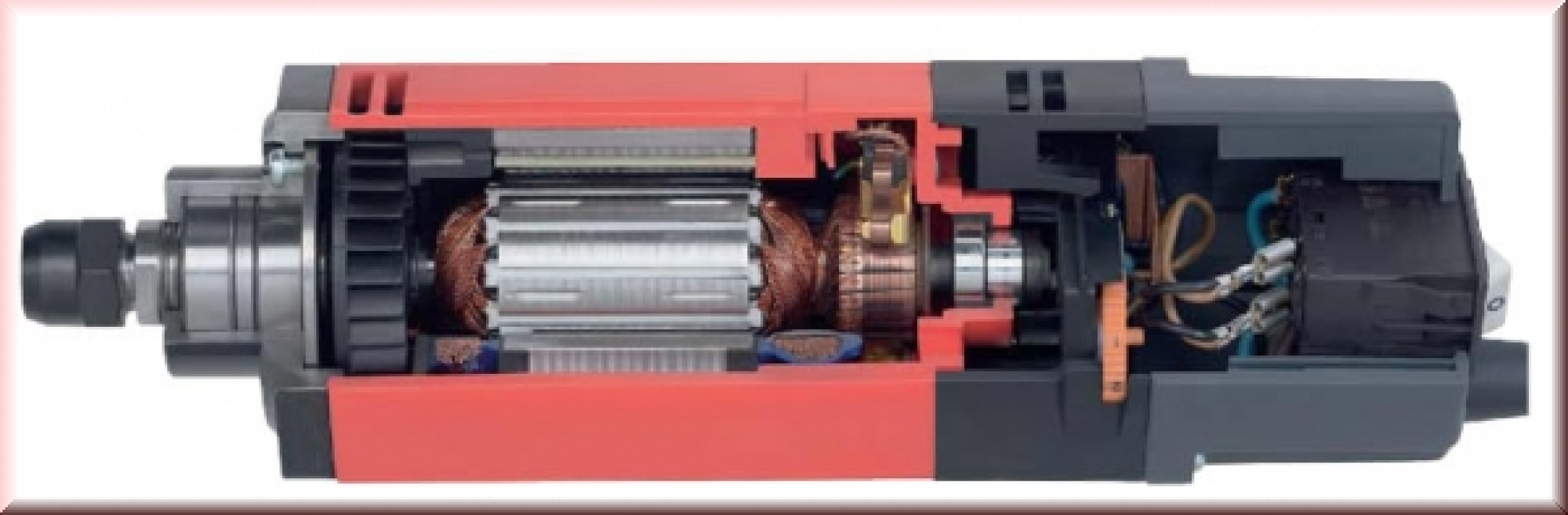

- Precise double bearings for the cutting spindles designed for high-precision cutting operations
- Extremely reliable, time-tested cutter motor
- High drive rating combined with ideal dimension
- Sturdy, slimline design
- Electronic tacho regulation. Constant working speeds for even cutting speeds and smooth operation, gentle start for jolt-free starting protects the motor and tool, PTC thermal monitor
- Includes precision collet 8 mm
Technical details
- Power : 1530 W / 230 V
- Revolutions: 3,500 ... 30,000 rpm

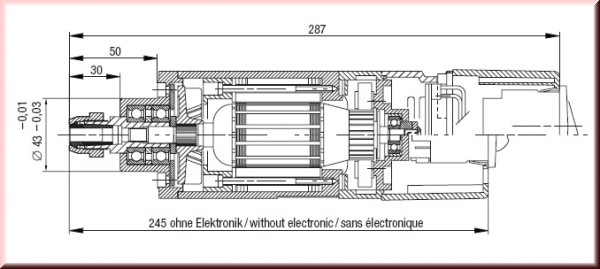

- Mounting: Ø 43 mm
- Max. collet Ø 10 mm
- Weight: 2.9 kg
- Cable length 2.5 m
Scope of delivery:
- Spindle motor 1530 W
- 1x collet diam. 8 mm
- 1x collet nut
- wrench
- Instruction manual
