Steel T-slot plate "Big Block" 6060
Steel T-slot plate "Big Block" 6060

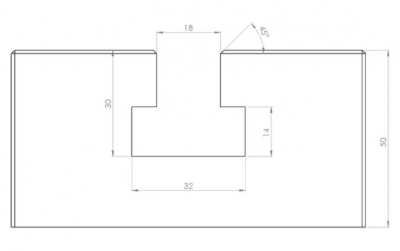

The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table / frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.Technical data:
- made for T-Slot nuts according to DIN508
- Tolerance/Precision: +/- 0.01 mm /150 mm
- L = 600 mm
- B = 600 mm
- H = 50 mm
- H1 = 16 mm
- H2 = 14 mm
- D = 100 mm
- A = 18 mm
- C = 32 mm
- E = 50 mm
We are sorry, due to the dimensions of this plate, this article can only be shipped by freight carrier.
Please write to us. We would be glad to provide you with an individual offer including transport costs.
