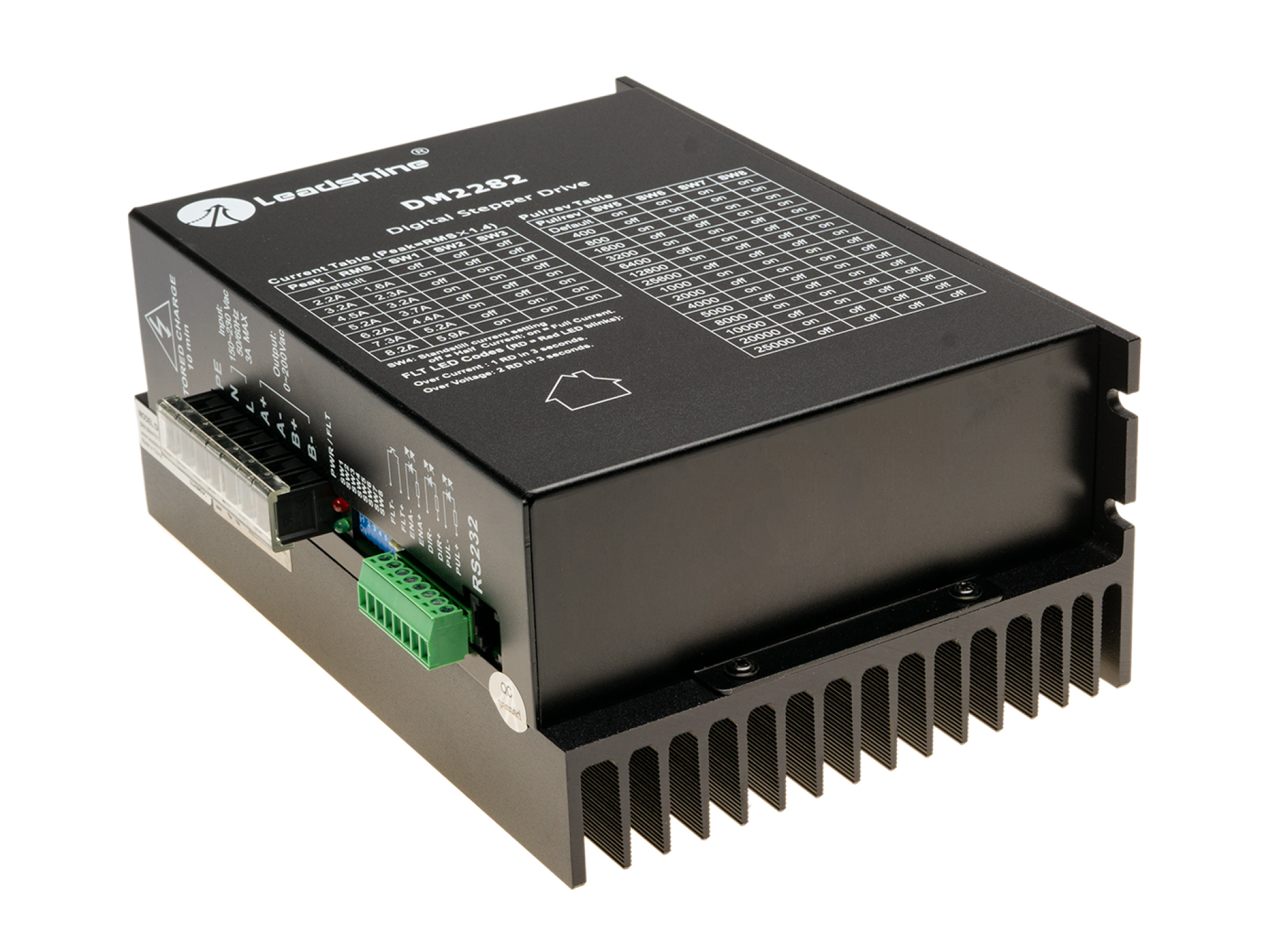

Stepper Motor Driver Leadshine DM2282 DIGITAL

The DM2282 is a high voltage, fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM2282 can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM2282 an ideal choice for high requirement applications.

Applications:
Suitable for a wide range of stepper motors, from NEMA size 34 to 51. It can be used in various applications such as laser cutters, laser markers, high precision X-Y tables, labeling machines, CNC router, etc. Its unique features make the DM2282 an ideal choice for applications that require both low-speed smoothness and high speed Performances.

Technical data:

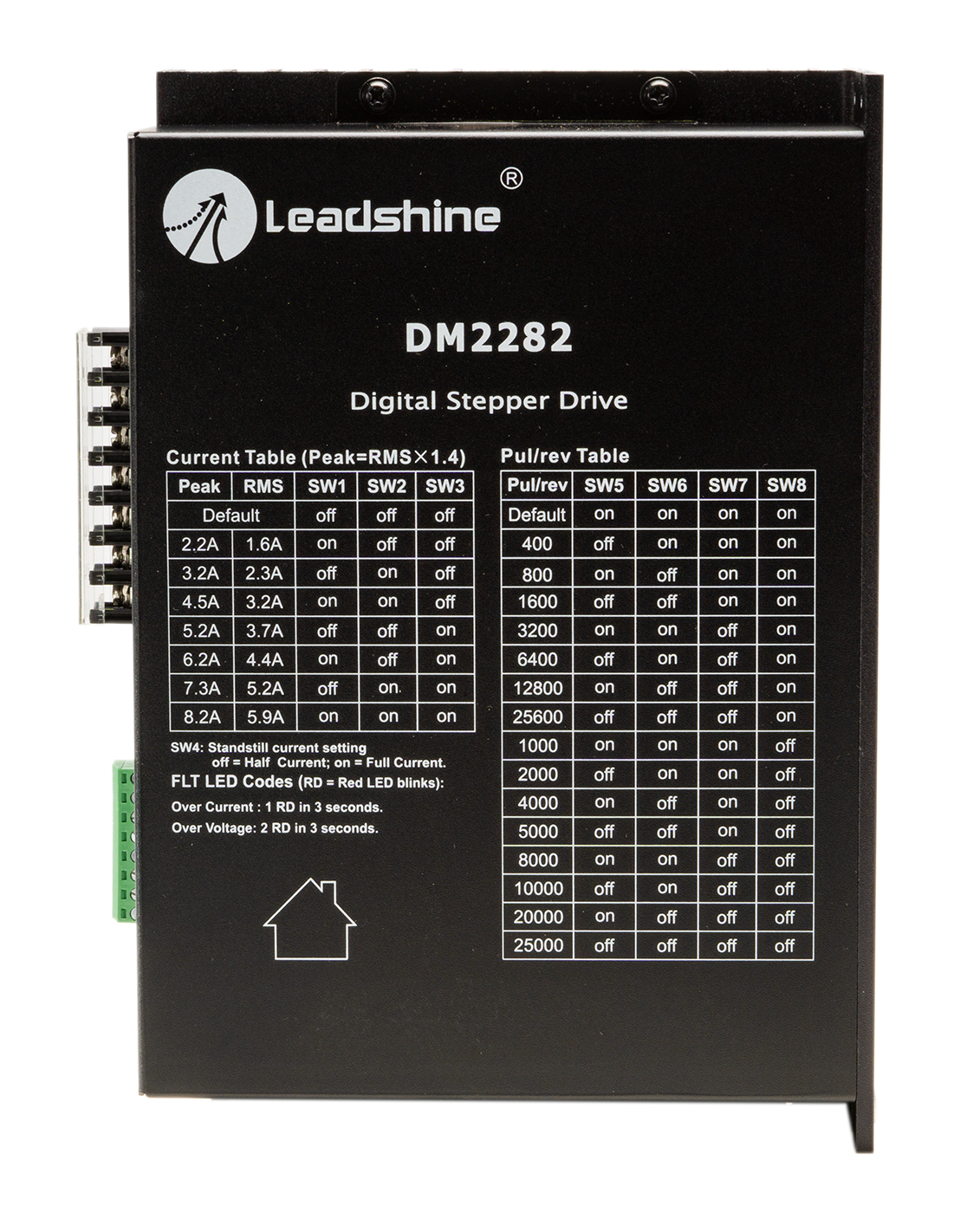

Output current: 0.5 ... 8.2 A (peak) 8 steps selectable via dip-switches
RMS: 5,56 A
Supply Voltage: 80 ... 253 VAC / 115 ... 325 VDC
Microstep resolution: programmable, 200 ... 102.400 steps/rev
Pulse input frequency: up to 200 kHz
Suitable for 2-phase and 4-phase motors
Over-voltage, over-current, phase-error protections
Opto-isolated differential inputs
Connection to PC parallel port via interface board or micro-controller
TTL compatible and optically isolated input
Automatic idle-current reduction
Anti-Resonance, provides optimum torque and nulls mid-range instability

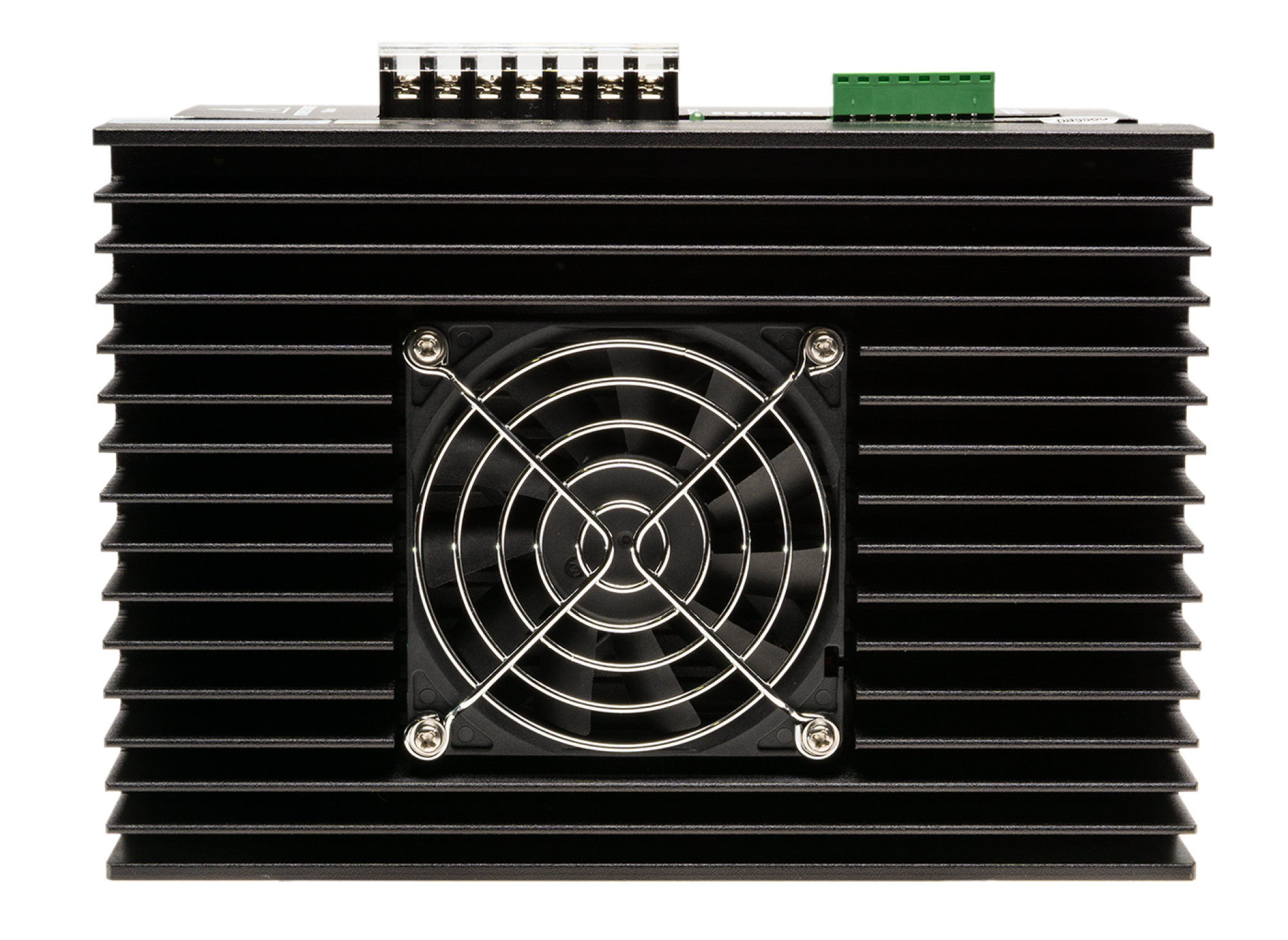

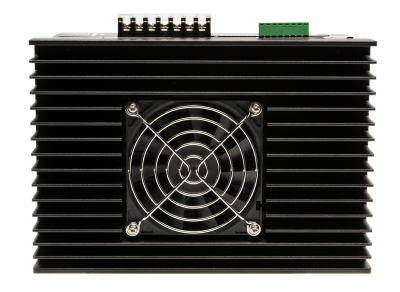

in casing including integrated cooling element
Motor self-test and parameter auto-setup technology, offers optimum responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance

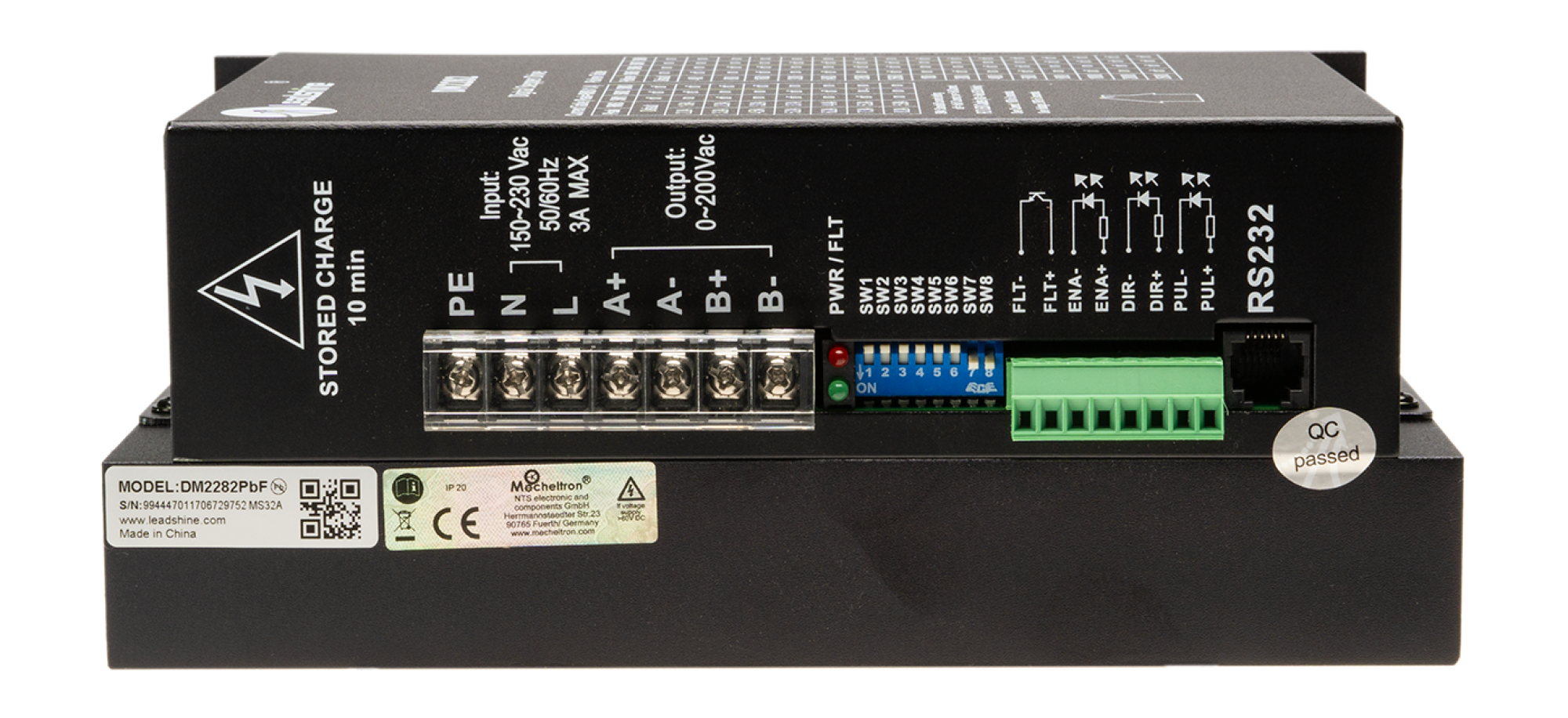

Support PUL/DIR and CW/CCW modes
Size: 200 x 137 x 81 mm (L x W x H) (without plugs)
Weight: 1.3 kg
