Suppression kit and emergency stop option package
Suiting our Eding-CNC PRO Control ITG
We recommend setting up the control with the interference suppression kit to improve the EMC properties and the emergency stop circuit to increase operational safety right from the start. Subsequent installation is possible, but requires more effort, since parts of the wiring then have to be reinstalled.
The installation of the components is described in the assembly instructions for the control.

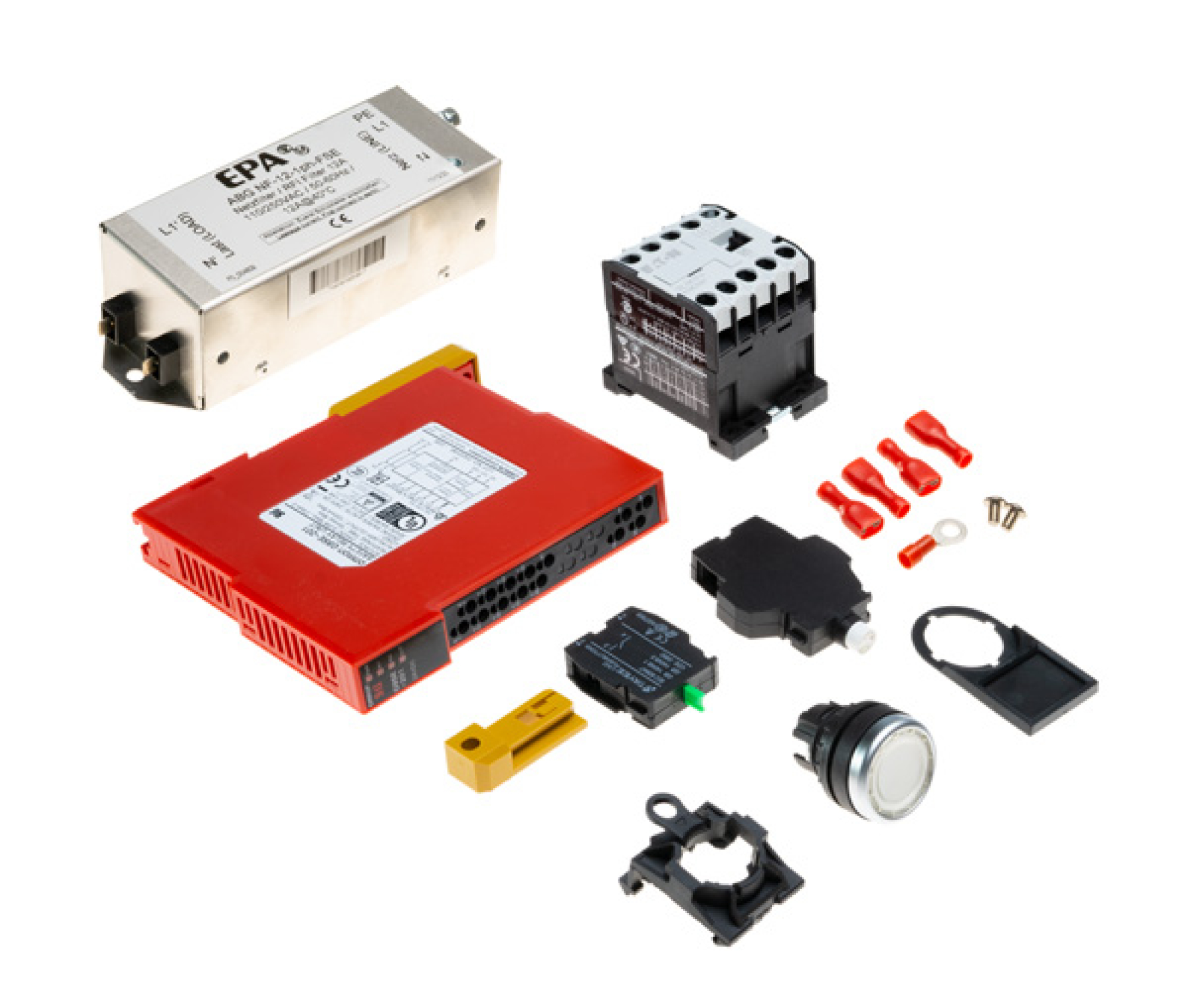

Scope of delivery
Suppression kit:
1 x high-performance compact filter 250 V / 10 A single-phase / two-stage, 10 kHz ... 30 MHz
2 x pan head screw M4 x 6
1 x ring cable lug 0.50 ... 1 mm², M5
4 x flat receptacles 0.50 ... 1 mm²
Emergency Stop Module:
1 x emergency stop relay 24V DC OMRON safety circuit, 2S
1 x power contactor DILEM-01-G 24 V / DC, 4kW, 3 x 400 V + 1 NC
1 x illuminated pushbutton white, IP67, round
1 x LED element white 12 ... 30 V AC / DC
1 x black label holder for insert labels
1 x contact element NO contact LA42, front mounting
1 x label "Reset" (small) for button labeling
Manufacturer:
Sorotec GmbH
77836 Rheinmünster
Germany
Phone: +49 (0)7227-994255-0
Telefax: +49 (0)7227-994255-9
E-Mail: sorotec@sorotec.de
Website: www.sorotec.de
| Authorized representative for the EU:
Sorotec GmbH
77836 Rheinmünster
Germany
Phone: +49 (0)7227-994255-0
Telefax: +49 (0)7227-994255-9
E-Mail: sorotec@sorotec.de
Website: www.sorotec.de
|
