HF-Spindle Teknomotor E-FAN 1.1 kW | ER25 | 24,000 rpm | 230 V / 400 V | COM41470576

Product No.:
ZSP.TM.DB.C4147.110.E
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
7 kg per piece
998,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

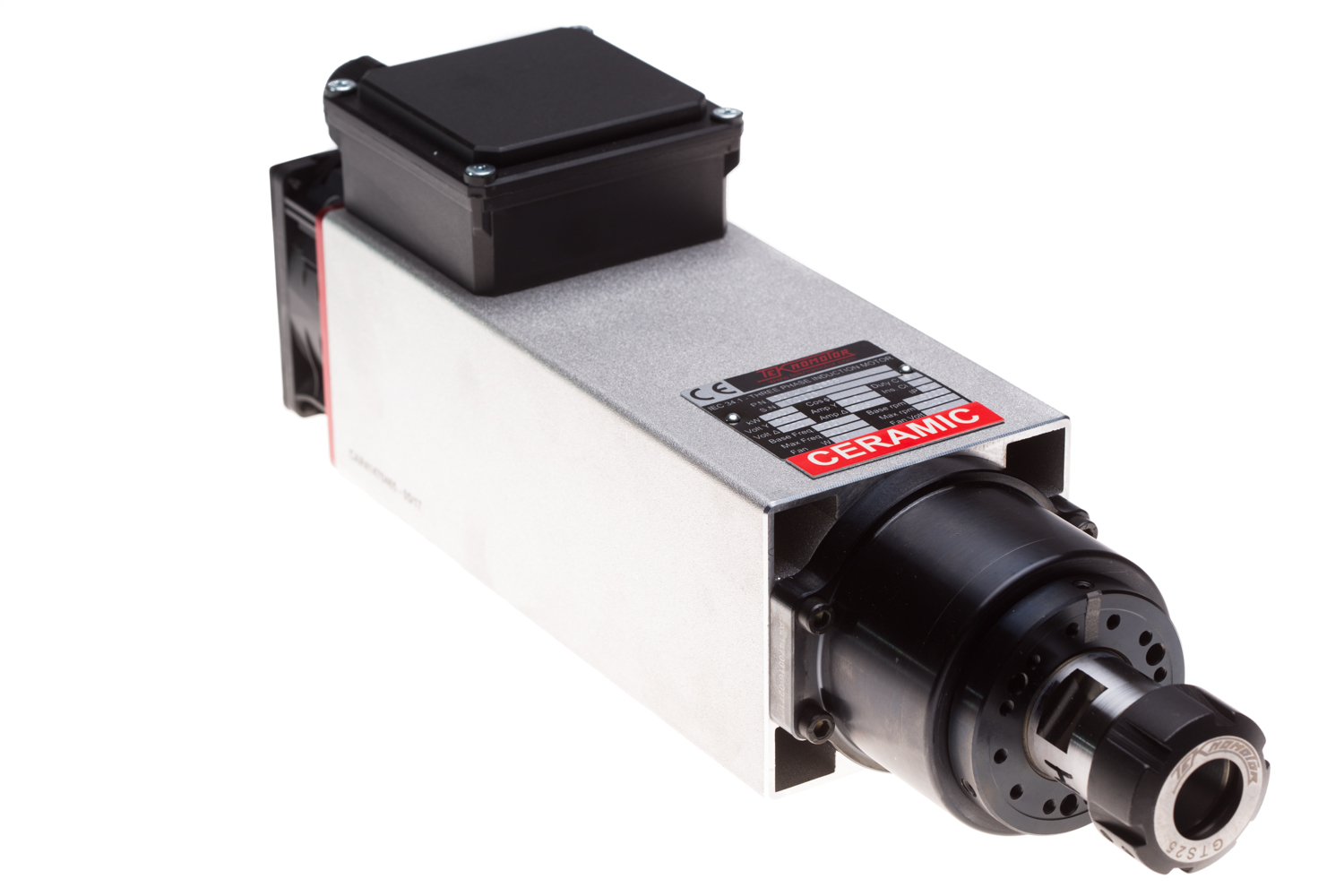

HF-Spindle Teknomotor 1.1 kW | ER25 | 24,000 rpm | 230 V / 400 V | COM41470576

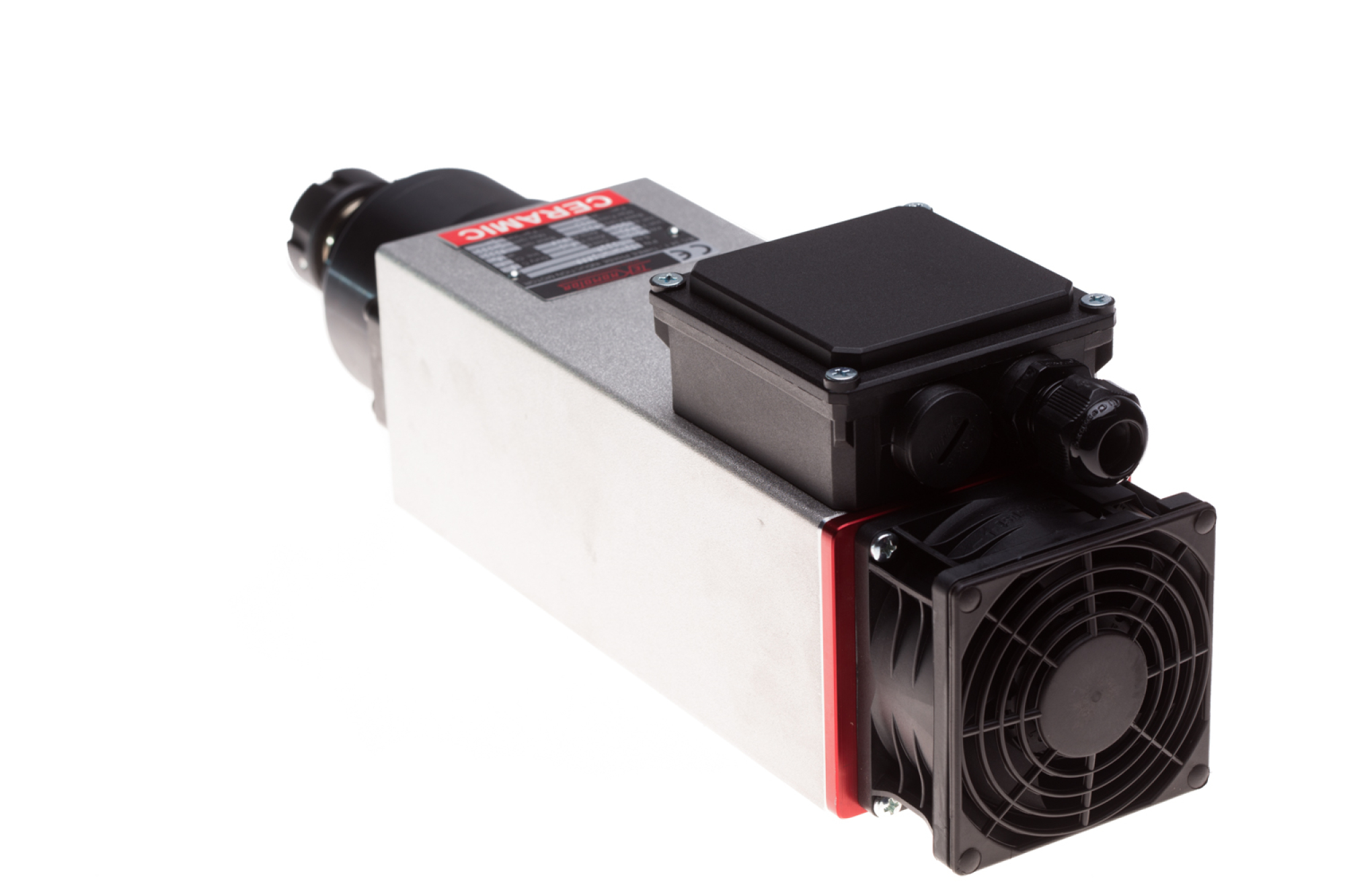

with electric fan for noise reduction


Technical specifications:
  • Power: 1100 W
  • Collet system: ER25
  • Voltage: 230 V / 400 V
  • Max. RPM: 24,000
  • Weight: 7.0 kg
  • Electric Fan: 24 V/DC
  • Temperature guard: PTC-Sensor
Delivery content:
  • HF Spindle
  • ER25 clamping nut
  • Instruction manual
Required accessories (not included):
Documentation

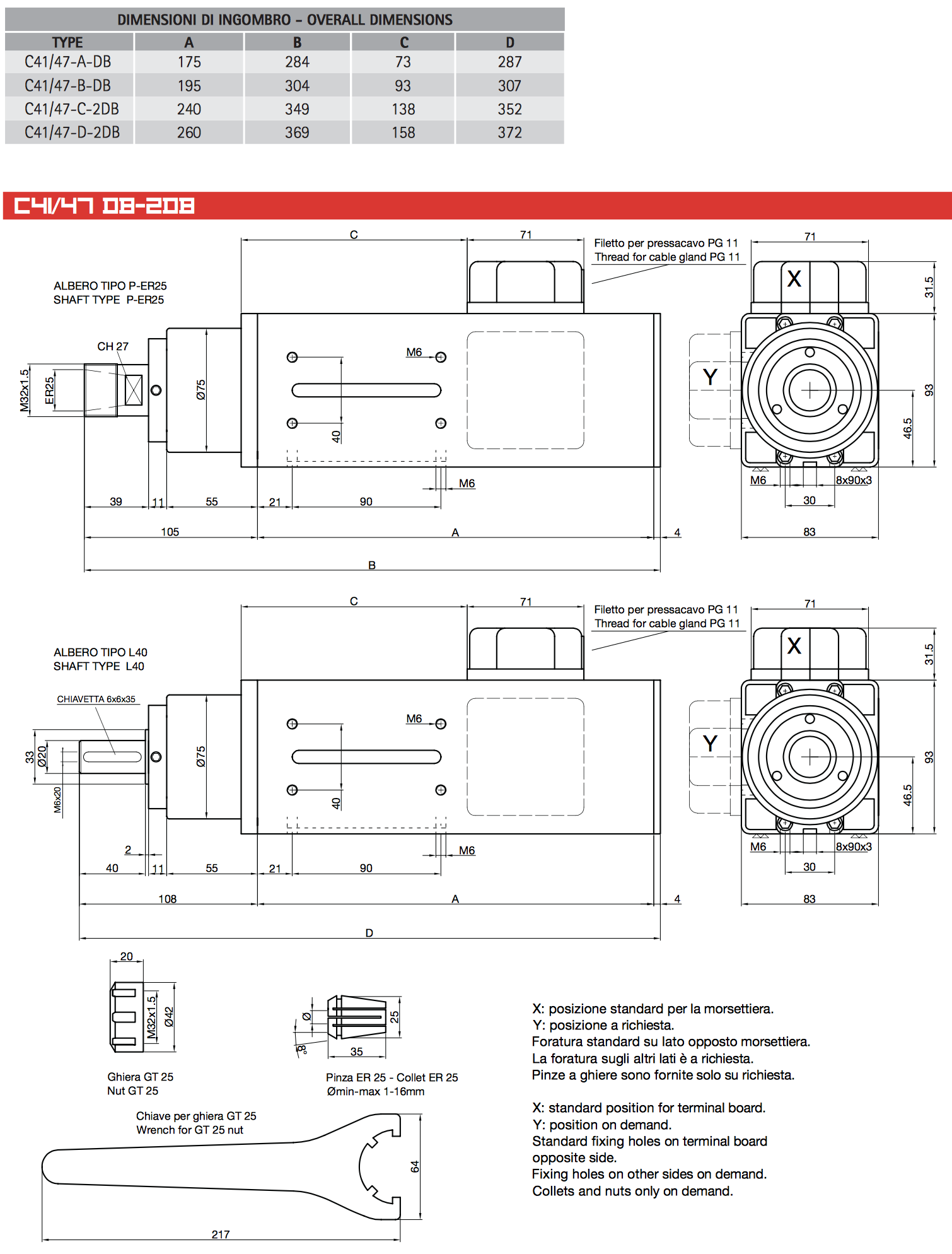

  Datasheet

  Teknomotor Catalogue

  Manual (english)

  Manual Connection Teknomotor to Omron MX2 (german)

  Manual Connection Teknomotor to Omron MX2 (english)

Customer reviews

Unfortunately there are no review yet. Be the first who rate this product.

This product is compatible with (for example):

Power supply 24 V, 1 A, 20 W
Power supply 24 V, 1 A, 20 W
DIN rail mount
22,90 EUR

Power cable for spindles 4 x 0.75 mm² + 2 x (2 x 0.34 mm²)
Power cable for spindles 4 x 0.75...
Ideal for spindles with electric fan and temp. Sensor
10,90 EUR

ER 25 wrench for clamping nut M
ER 25 wrench for clamping nut M...
12,90 EUR

Open-ended spanner, 24 x 27 mm
Open-ended spanner, 24 x 27 mm
For full professional use
11,75 EUR

Cone-wiper ER25
Cone-wiper ER25
11,90 EUR
