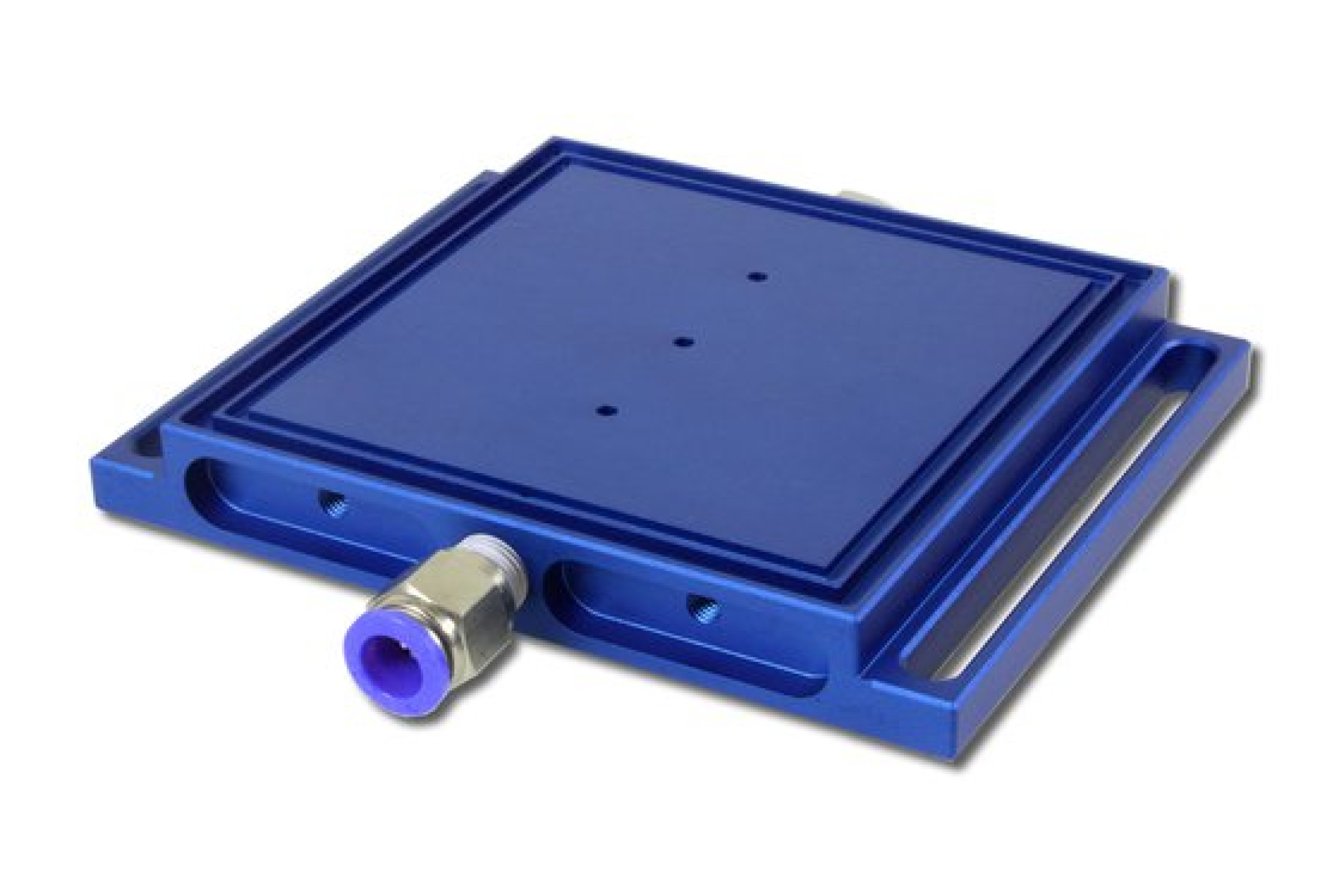

Vacuum pad VP1212HPC set

with pressurized air vacuum generator

Overview of features:

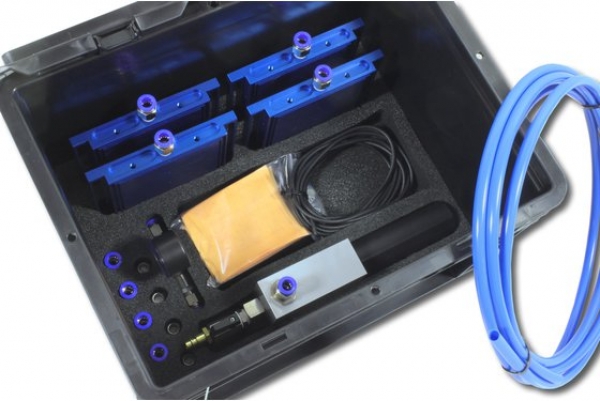

• Complete set of 4 pads, including pressurized air vacuum generator
• Extremly high clamping force by combining vacuum and sticky foil
• Coolant ready
• Pads easy to chain
• Clamp small work pieces with high clamping force

• Material: Aluminum
• Dimensions: 150 x 120 x 20 mm
• Hose conection: 8 mm
• Rubber cord: 4 mm
• Anodized

• 93% vacuum (high differential pressure)
• 11 m³/h intake volume (relative high)
• 200 lpm (low consumption)
• Operation pressure 1 ... 8 bar
• Nominal operation pressure 6 bar
• Supplied aur should be dry and clean

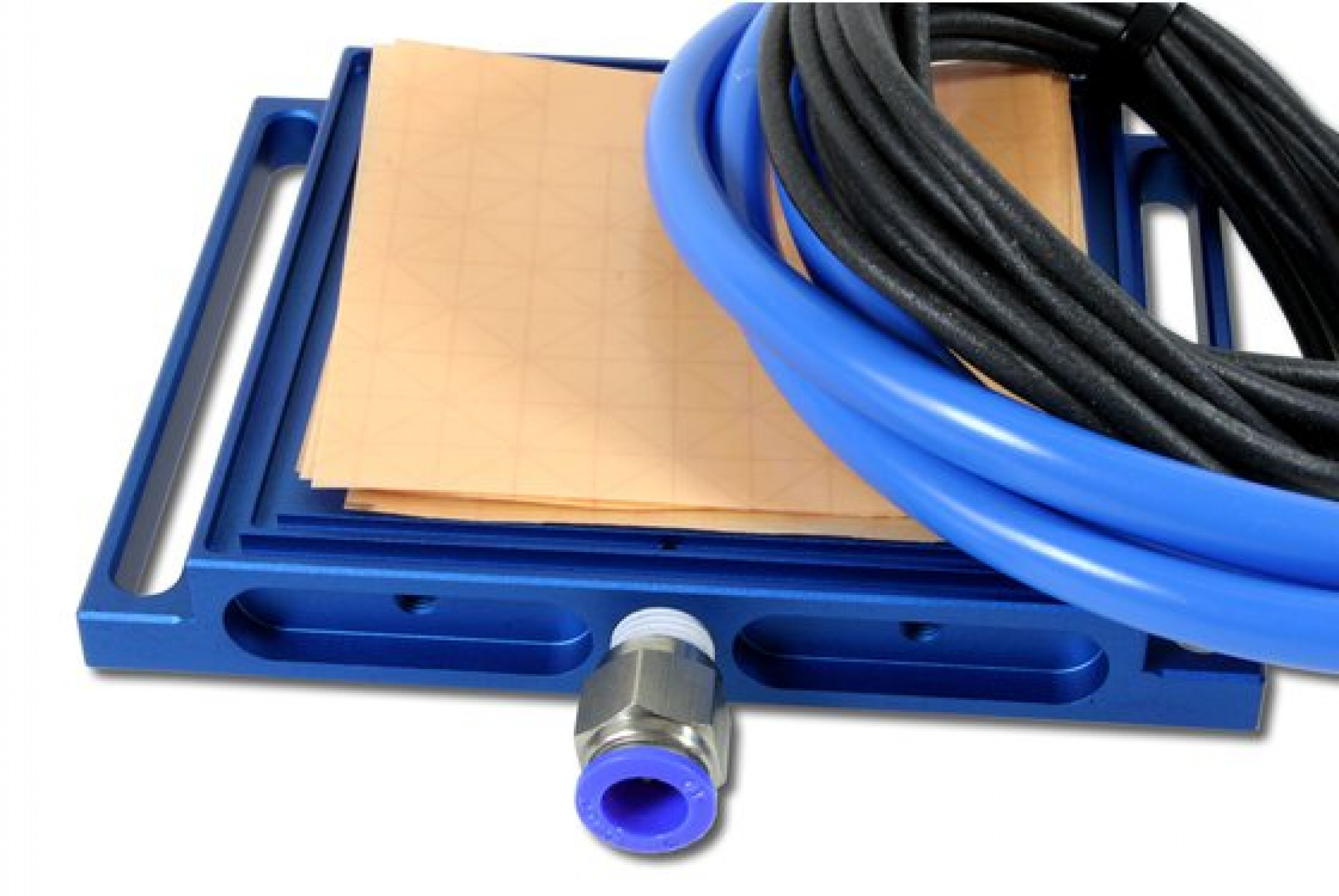

• 4 x vacuum pad VP1212HPC
• 1 x vacuum generator VTVE3
• Rubber cord
• Sticky foil
• Hose
