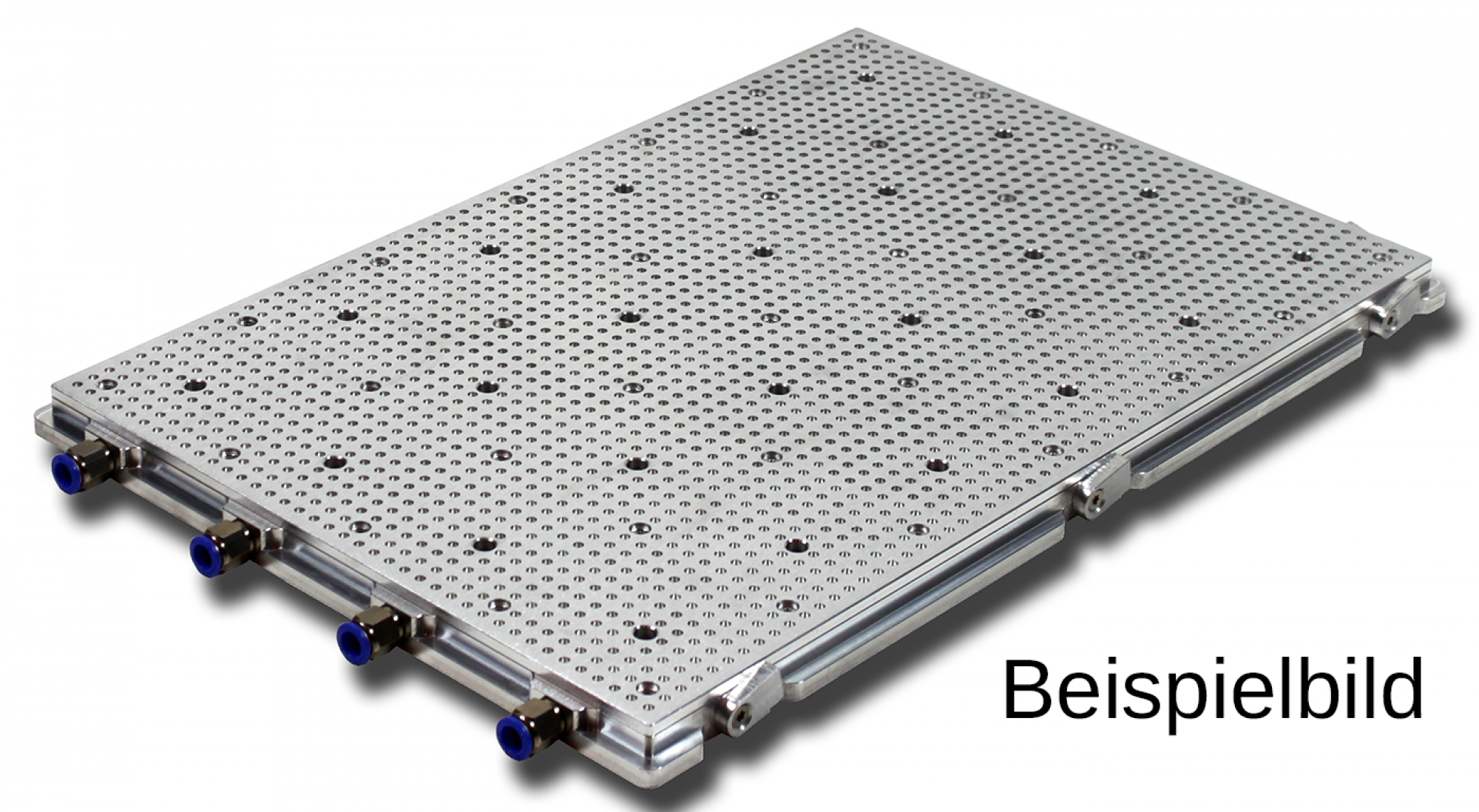

Vacuum table 10040 GR

The top model among the perforated grid vacuum tables. The GR vacuum tables are completely made of solid cast aluminum and therefore offer the best conditions for heavy machining of light light metals and steel. The solid construction has a vibration dampening effect. Since GR vacuum tables are made entirely of aluminum, they are also coolant compatible. In addition, a grid of M8 steel threaded bushings spaced 100 x 100 mm apart is incorporated into the surface, allowing for the mounting of parts such as clamps, vises or stops. Foldable workpiece stops are located on the side for perfect reproducibility.

Technical data:

• Material: Aluminium
• Measure: 1016 x 416 mm
• Clamping area: 1000 x 400 mm
• Height: 26 mm
• Drillings: 0.3 mm
• Grid: 10 x 10 mm
• Thread grid: 100 x 100 mm
• Connections: 12 mm
• vacuum sectors: 4

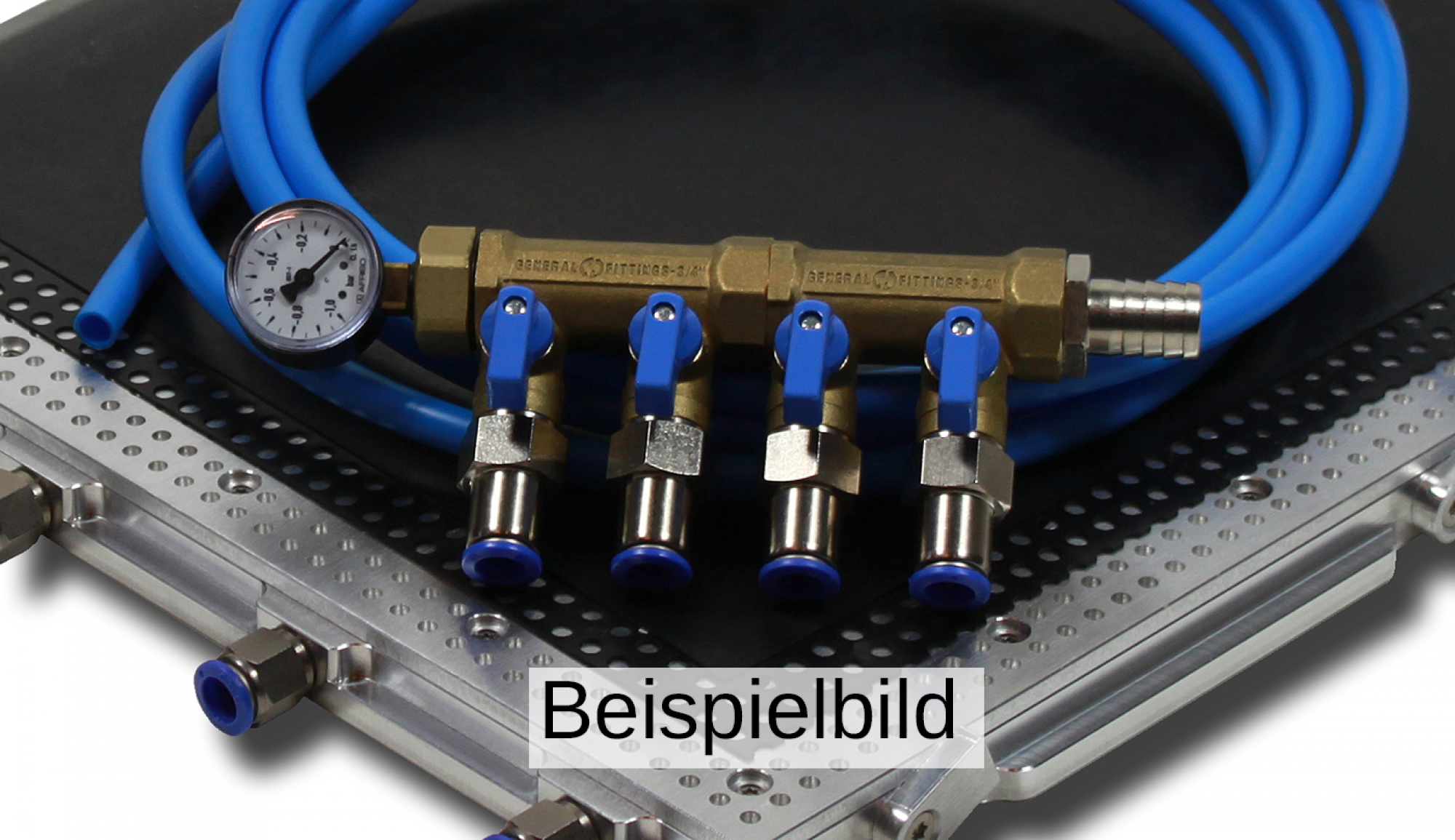

Included in delivery:

• 1 pcs vaccum table VT10040 GR
• 1 pcs vacuum manifold
• 1 pcs hole ruber mat
• 1 pcs cover mat
• 1 set connection hose
