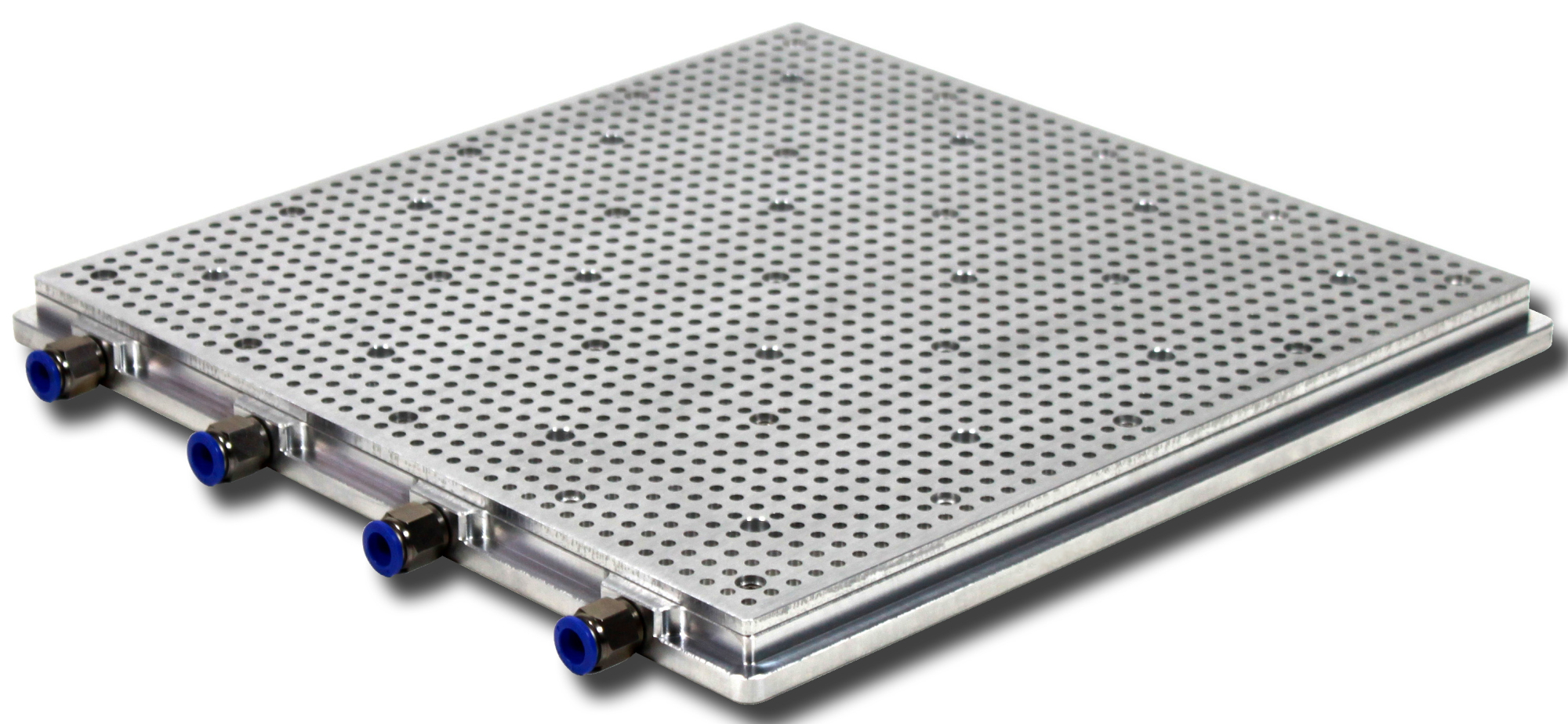

Vacuum table 4040 GAL

Completely made of solid cast aluminum, GAL vacuum tables offer the best prerequisites for heavy machining of light metals and steels. The solid construction has a vibration-damping effect. Since GAL vacuum tables are made entirely of aluminum, they are also coolant compatible. In addition, an M6 threaded grid at a distance of 100 x 100 mm  is incorporated into the surface and thus enables the attachment of parts such as clamps, vises or stops.

Technical data:

• Material: Aluminium
• Measure: 416 x 416 mm
• Clamping area: 400 x 400
• Height: 26 mm
• Drillings: 0,3 mm
• Grid: 10 x 10 mm
• M6 Thread grid: 100 x 100 mm
• Connections: 12 mm
• Vacuum chambers: 4

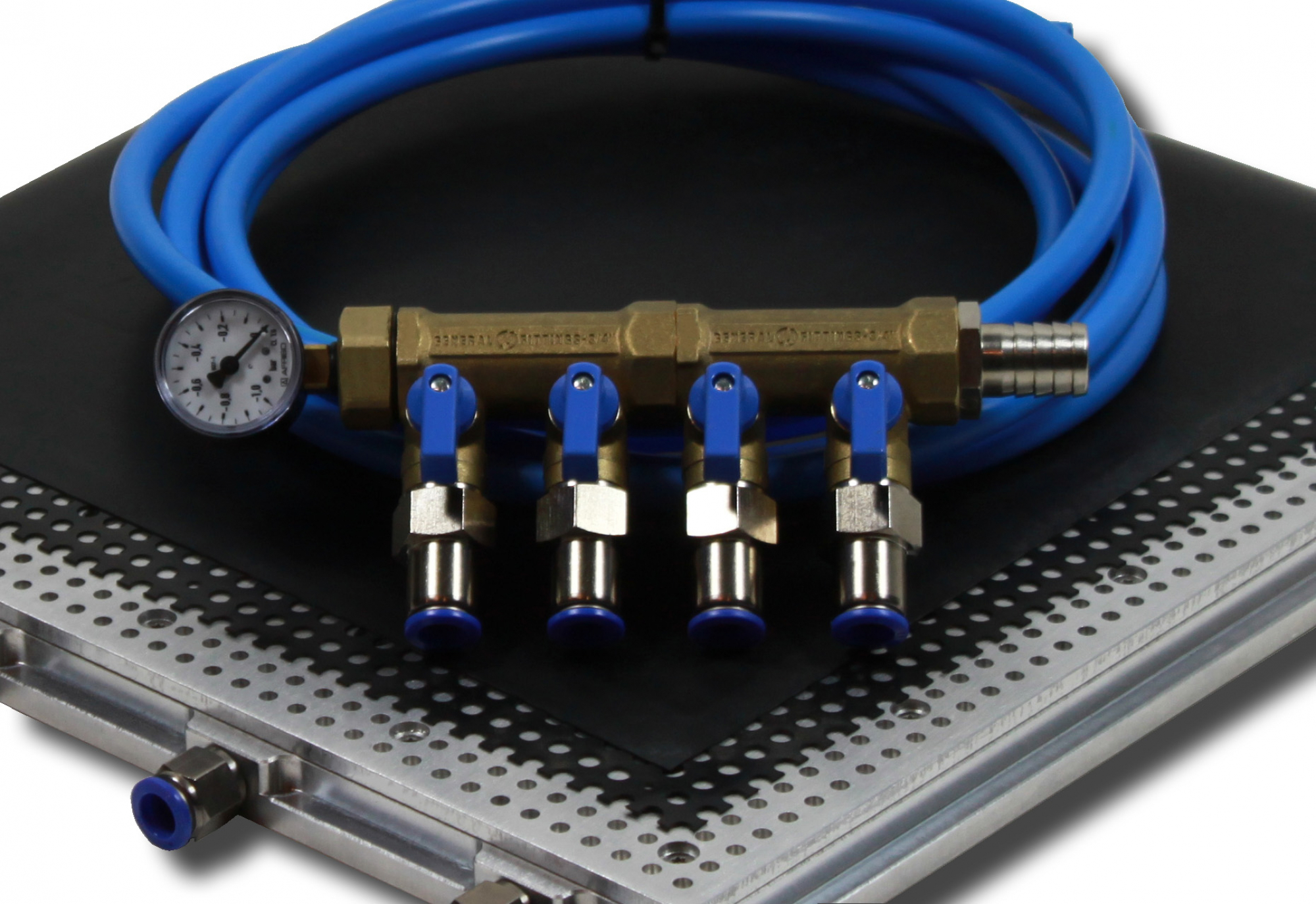

Included in delivery:

• 1 pcs Vacuum table VT4040 GAL
• 1 pcs Manifold
• 1 pcs hole rubber mat
• 1 pcs cover mat
• 1 pcs conection hose
